"In the Fight" Realism
Full-scale Zeros were intricately-constructed and incredibly agile aircraft that required months of training to fly. This Sport-Fighter version gets you to the flight line faster than with any kit and, once there, is an easy flier for anyone transitioning from a high wing trainer AND a plane that can "tear up the sky" doing aerobatics. Soar in a piece of history today with the Sport Fighter Zero ARF.
Fast, easy assembly
Excellent sport flier
Realistic trim scheme

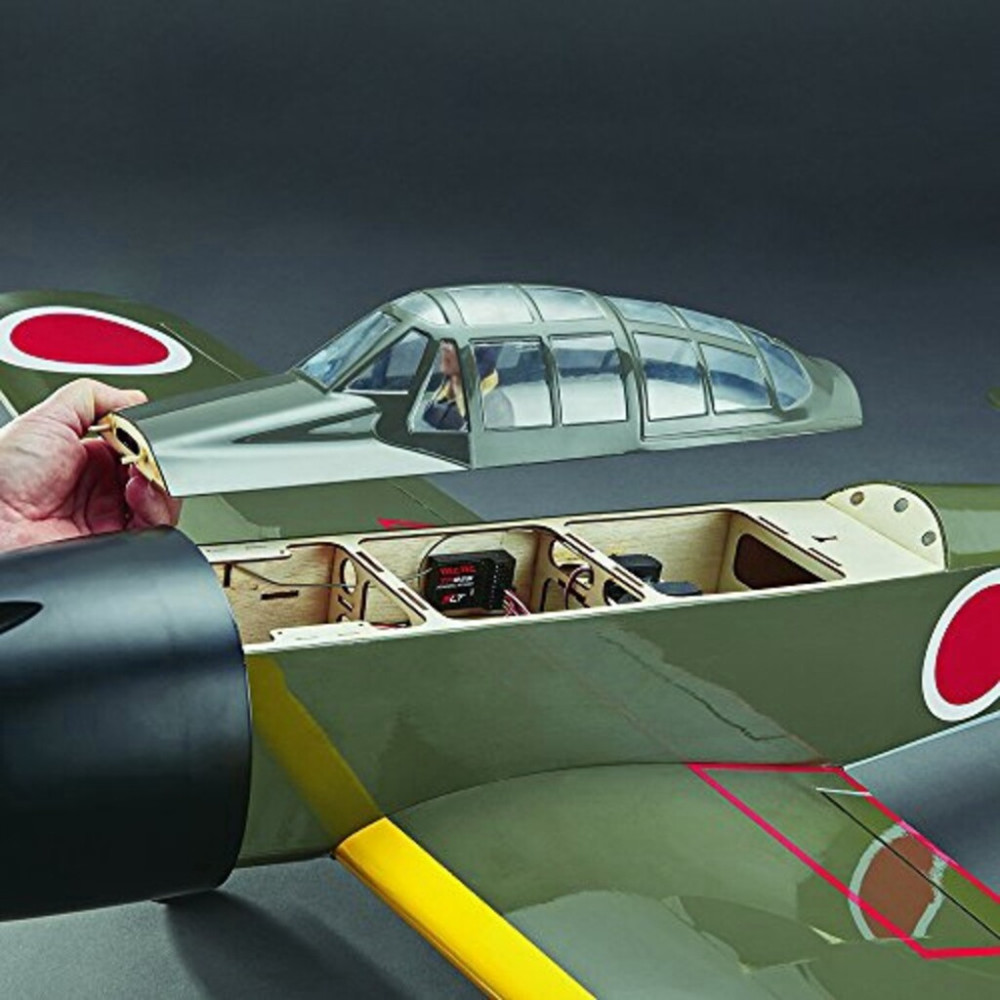

A large, magnetically-attached hatch makes accessing onboard gear and LiPo batteries quick and easy.
The ailerons are operated by individual servos. This allows fine tuning of the ailerons and flaperon mixing.
Includes parts for brushless and glow power setups.
Construction: Balsa and ply
Wing: One-piece, plywood wing joiner
Aileron Control: Dual servo
Landing Gear: Main, prebent wire with 3" (76mm) diameter wheels tail gear, prebent wire with 1" (25.4mm) diameter wheel
Cowl: Painted fiberglass
Motor Mount: Plywood
Engine Mount: Two-piece composite plastic
Fuel Tank: Approximately 8oz (240cc)
Spinner: Black plastic construction 2.5" (63mm) diameter
Warranty: Great Planes Model Manufacturing Company guarantees this kit to be free from defects in both materials and workmanship at the date of purchase. This warranty does not cover any component parts damaged by use or modification.
ARF Zero Sport Fighter, Cowl, Canopy, Landing Gear, Wheels, Decals, Fuel Tank, Motor Mount, Engine Mount and Instruction Manual
Radio: 4-5 channel
Servos: Four mini, five if using glow engine
6" (150mm) Extensions: Four for aileron servos
Receiver Battery: 4-cell at least 2000mAh if using glow engine
Brushless Motor: Great Planes RimFire .32 42-50-800 recommended
Battery: 4S LiPo, 3300-4000mAh
Charger: Compatible with selected battery
Engine: .46-.55 2-stroke OR .70 4-stroke
Muffler: Pitts style
Propeller: Compatible with selected engine
Servo: Mini, for throttle Glow fuel, glow starter, building and field equipment
Wingspan: 56.6" (1435mm)
Length: 46" (1170mm)
Wing Area: 537 sq in (34.6 sq dm)
Wing Loading: 21-25 oz/sq ft (64-76 g/sq dm)
Center of Gravity (CG): 3-4" (75-100mm) back from leading edge of wing measured at the fuselage side
Control Throws: Low High
Elevator (up & down): 3/8" (10mm) 11° 5/8" (16mm) 19°
Aileron (up & down): 1/4" (6mm) 11° 1/2" (13mm) 21°
Rudder (right & left): 1" (25mm) 12° 1-3/4" (44mm) 21°
