Fabricante: DJI INOVATIONS

DJI RTF PHANTOM 4 PRO+ COM TELA

229135


Disponibilidade: Em Estoque


U$ 1,799.00

10x de U$ 179.90
Valor oficial: U$ 1,799.00


CEP:


Calcular





*Os valores não incluem I.V.A. – Imposto ao Valor Agregado (obrigatório para residentes no Paraguai) e podem sofrer alterações sem prévio aviso




An uprated camera is equipped with a 1-inch 20-megapixel sensor capable of shooting 4K/60fps video and Burst Mode stills at 14 fps.
The adoption of titanium alloy and magnesium alloy construction increases the rigidity of the airframe and reduces weight, making the
Phantom 4 Pro similar in weight to the Phantom 4. The FlightAutonomy system adds dual rear vision sensors and infrared
sensing systems for a total of 5-direction of obstacle sensing and 4-direction of obstacle avoidance.

60fps

1-inch Image Sensor

Mechanical Shutter

5-Direction of Obstacle Sensing

4.3mi (7km)
long-range control

30-minute Flight-time

Dual Coding

CAMERA WITH 1-INCH 20MP SENSOR

The onboard camera has been redesigned to use a 1-inch 20-megapixel CMOS sensor. A custom engineered lens made up of eight elements is
arranged in seven groups, it is the first DJI camera to use a mechanical shutter, eliminating rolling shutter distortion which can occur when taking
images of fast moving subjects or when flying at high speed. In effect, it is as powerful as many traditional ground cameras. More powerful
video processing supports H.264 4K videos at 60fps or H.265 4K at 30fps, both with a 100Mbps bitrate. Advanced sensors and processors
ensure everything is captured with more image detail and the image data needed for advanced post-production.
Learn more about the sensor, video recording, lens and shutter

5-DIRECTION OF OBSTACLE SENSING

FlightAutonomy is expanded with an additional set of high-resolution stereo vision sensors placed at the rear in addition to the pair placed at the front
as well as infrared sensing systems placed on the left and right sides. This network creates a total of 5-direction of obstacle sensing and 4-direction of
obstacle avoidance, protecting the Phantom 4 Pro from more obstacles and giving filmmakers the confidence to capture more complex images.
Learn More About 5-Direction of Obstacle Sensing

REMOTE CONTROLLER WITH BUILT-IN SCREEN

A 5.5in 1080p screen integrated with the Phantom 4 Pro + offers 1000 cd/m2 of brightness, more than twice as bright as conventional smart devices.
As the DJI GO app is built into the screen, hardware and software can be fully optimized, allowing you to edit and share instantly. A five-hour
battery life makes the Phantom 4 Pro + a complete aerial imaging solution. The integrated upgraded Lightbridge HD video transmission
system supports dual frequencies for greater interference resistance and a maximum video transmission range of 4.3mi (7km)*.
*Unobstructed, free of interference, when FCC compliant.
Learn More About Remote Controller with Built-in Screen

NEW LIGHTBRIDGE VIDEO TRANSMISSION SYSTEM

The Phantom 4 Pro controller integrates an upgraded Lightbridge HD video transmission system that adds 5.8 GHz transmission support. The ability to choose between
2.4GHz and 5.8GHz allows pilots to cut through interference and eliminates image lag caused when flying in an area with extensive 2.4GHz frequency use. Normally, Wi-
Fi video transmission systems use a 2.4GHz frequency to work with a controller using a 5.8GHz frequency as this prevents interference that can occur when both use the
same frequency. If using the same frequency the video transmission system and the remote controller will interfere with each other, causing image lag.

The Lightbridge HD video transmission system used in the Phantom 4 Pro uses TDM (Time Division Multiplexing) to transmit signals, allowing it to send controller signals
and receive video transmission signals at the same frequency. When switched on, the Phantom 4 Pro evaluates local signal levels, automatically choosing the
transmission frequency with the lowest level of interference. This ensures the optimum range of a maximum video transmission of 4.3mi (7km)*.
2.4GHz
FCC: 7000 m
CE: 3500 m
SRRC: 4000 m
5.8GHz
FCC: 7000 m
CE: 2000 m
SRRC: 4000 m
*Unobstructed, free of interference, when FCC compliant.
ULTRA-BRIGHT SCREEN

A 5.5in 1080p screen integrated with the Phantom 4 Pro + offers 1000 cd/m2 of brightness, more than twice as bright as conventional smart devices. It
makes bright, vivid colors easily visible in direct sunlight. As the DJI GO 4 app is built into the screen, a mobile device is not required, simplifying pre-
flight preparations. Integration of an HDMI port, Micro SD card slot, microphone, embedded loudspeaker, and Wi-Fi connection allow images to be
edited inside DJI GO 4 to be shared almost instantly. Its five-hour battery life makes the Phantom 4 Pro + a complete aerial imaging solution.

INTELLIGENT FLIGHTFLIGHT PERFORMANCE
DrawActiveTrackTapFlyReturn to HomeGesture Mode

Using Gesture Mode, selfies can be captured easily using a few gestures without the remote controller. Advanced computer vision technology allows the Phantom 4 Pro to take instructions through gestures. The subject simply lifts their arms when facing the camera and the aircraft will recognize this movement by locking on and placing the subject in the center of the frame. When ready for a photo, the subject holds their arms out to signal the aircraft. A three second countdown will begin, making time to strike a pose, allowing moments to be captured without the remote control.

Draw is a brand new technology for waypoint control. Simply draw a route on screen and the Phantom 4 Pro will move in that direction while keeping its altitude locked. This allows the pilot to focus on camera control and enables more complex shots. There are two Draw modes that can be used in different scenarios.

Forward: The aircraft follows the route at a constant speed with the camera facing in the direction of flight.
Free: The aircraft only moves along the route when instructed. In this mode, the camera can face in any direction during a flight.

The Phantom 4 Pro automatically recognizes subjects, follows and captures them as they move, making it easier to get complex shots.

Following fast-moving objects can be very challenging, but advanced image recognition algorithms used by the Phantom 4 Pro allow it to recognize and track the object while keeping it in frame. This new algorithm also recognizes more subjects, from people to vehicles to animals, and will adjust its flight dynamics to match, ensuring smoother shots.

Pilots can now choose between:
Trace – Follow behind or in front of a subject, avoiding obstacles automatically.
Profile – Fly alongside a subject at a variety of angles to get profile shots of the subject.
Spotlight – Keep the camera trained on a subject while the aircraft flies almost anywhere.

Fly in any direction visible on-screen with a simple tap. Tap anywhere on-screen to smoothly adjust the direction of flight while automatically avoiding obstacles * and tap the screen again or use control sticks to change direction. A new AR route function shows the aircraft’s real-time flight direction for reference as its route is adjusted. As it can be difficult to control altitude, course, speed and camera pitch simultaneously using joysticks, TapFly Free allows a pilot to set the direction of flight, allowing them to turn the Phantom 4 Pro or tilt the gimbal as required without changing the direction of flight. In total, there are now three TapFly modes:

TapFly Forward – Tap to fly in the selected direction
TapFly Backward – Tap to fly in the opposite direction of the tap, i.e. tap in the bottom right corner of the screen to fly backward towards the top left.
TapFly Free – Lock the forward direction of the Phantom without locking the camera direction allowing it to turn as it flies.

*Obstacle Avoidance is not available with TapFly Free

In its upgraded Return to Home mode, the Phantom 4 Pro can automatically choose the best route to return home depending on environmental conditions. It records its route as it flies, allowing it to return along the same route avoiding obstacles if the control signal is disconnected.

Based on its altitude at the time of disconnection, the Phantom 4 Pro is also able to adjust its flight path to avoid obstacles it has seen during its flight. At takeoff, the Phantom 4 Pro will record the scene below and compare its recording with what it sees as it returns, for more precise landing. It can also detect the ground to see whether there is suitable spot for landing. If any obstacles are found, or there is water on the ground, it will alert the pilot and hover at an appropriate height, helping the aircraft to land more safely.

Using Gesture Mode, selfies can be captured easily using a few gestures without the remote controller. Advanced computer vision technology allows the Phantom 4 Pro to take instructions through gestures. The subject simply lifts their arms when facing the camera and the aircraft will recognize this movement by locking on and placing the subject in the center of the frame. When ready for a photo, the subject holds their arms out to signal the aircraft. A three second countdown will begin, making time to strike a pose, allowing moments to be captured without the remote control.


AERONAVE

Peso (batería y hélices incluidas) 1388 g
Tamaño diagonal (sin hélices) 350 mm
Velocidad de ascenso máx. Modo S 6 m/s; modo P: 5 m/s
Velocidad de descenso máx. Modo S 4 m/s; modo P: 3 m/s
Velocidad máxima 72 km/h (45 mph) (modo S); 58 km/h (36 mph) (modo A); 50 km/h (31 mph) (modo P)
Ángulo de inclinación máximo 42° (Modo S); 35° (Modo A); 25° (Modo P)
Velocidad angular máx. 250°/s (Modo S); 150°/s (Modo A)
Altitud de vuelo máx. por encima del nivel del mar 6 000 m (19 685 pies)
Tiempo de vuelo máx. 30 minutos aprox.
Temperatura de funcionamiento De 0 a 40 °C (de 32 a 104 °F)
Sistemas de posicionamiento por satélite GPS/GLONASS
Precisión de vuelo estacionario GPS Vertical: ±0,1 m (con Posicionamiento visual); ±0,5 m (con posicionamiento por GPS) Horizontal: ±0,3 m (con Posicionamiento visual); ±1,5 m (con posicionamiento por GPS)

SISTEMA DE VISIÓN

Rango de velocidad ≤50 km/h (31 mph) a 2 m (6,6 pies) sobre el suelo
Rango de altitud de 0 a 10 m (de 0 a 33 pies)
Rango de funcionamiento de 0 a 10 m (de 0 a 33 pies)
Rango de detección de obstáculos de 0,7 a 30 m (de 2 a 98 pies)
FOV ±60°(Horizontal), ±54°(Vertical)
Frecuencia de detección 10Hz
Entorno de funcionamiento Superficies con un patrón claro e iluminación adecuada (> 15 lux)

CÁMARA

Sensor CMOS de 1’’; píxeles efectivos: 20M
Objetivo FOV (campo de visión) 84°, 24 mm (equivalente a formato de 35 mm) f/2.8 - f/11; enfoque a 1 m - ∞
Rango de ISO Video: 10 0 - 3200 (Auto); 100 - 6400 (Manual)
Photo: 100 - 3200 (Auto); 100- 12800 (Manual)
Obturador mecánico 8 - 1/2000 s
Obturador electrónico 8 - 1/8000 s
Tamaño de imagen máximo Relación de aspecto 3:2: 5472×3648;
relación de aspecto 4:3: 4864×3648;
relación de aspecto 16:9: 5472×3078
Tamaño de imagen PIV Relación de aspecto 16:9:
・5248 × 2952(3840 × 2160 24/25/30p,2720 × 1530

24/25/30p,
1920 × 1080 24/25/30p, 1280 × 720 24/25/30p)
・3840 × 2160(3840 × 2160 48/50p,2720 × 1530 48/50p,
1920 × 1080 48/50/60p,1280 × 720 48/50/60p)

Relación de aspecto 17:9:
・4896 × 2592 (4096 × 2160 24/25/30p)
・4096 × 2160 (4096 × 2160 48/50p)
Modos de fotografía Disparo único
Disparo en ráfagas: 3/5/7/10/14 fotogramas
Horquilla de exposición automática (AEB): 3/5 fotogramas
horquillados con sesgo de 0,7 EV
Intervalo: 2/3/5/7/10/15/30/60 s
Modos de grabación de vídeo H.265
・C4K:4096×2160 24/25/30p @100Mbps
・4K:3840×2160 24/25/30p @100Mbps
・2.7K:2720×1530 24/25/30p @65Mbps

2720×1530 48/50/60p @80Mbps
・FHD:1920×1080 24/25/30p @50Mbps

1920×1080 48/50/60p @65Mbps

1280×720 48/50/60p @35Mbps


H.264
・C4K:4096×2160 24/25/30/48/50/60p @100Mbps
・4K:3840×2160 24/25/30/48/50/60p @100Mbps
・2.7K:2720×1530 24/25/30p @80Mbps

2720×1530 48/50/60p @100Mbps
・FHD:1920×1080 24/25/30p @60Mbps

1920×1080 48/50/60/120p @80Mbps
・HD: 1280×720 24/25/30p @30Mbps

1280×720 48/50/60/120p @45Mbps
Tasa de bits de almacenamiento de vídeo 100 Mbps
Sistemas de archivo admitidos FAT32 (≤ 32 GB); exFAT (> 32 GB)
Fotografía JPEG, DNG (RAW), JPEG + RAW
Vídeo MP4/MOV (AVC/H.264ï¼›HEVC/H.265)
Tarjetas SD admitidas MicroSD, Capacidad máxima: 128 GB.
Se necesita clasificación clase 10 o UHS-1
Temperatura de funcionamiento

De 0 a 40 °C (de 32 a 104 °F)

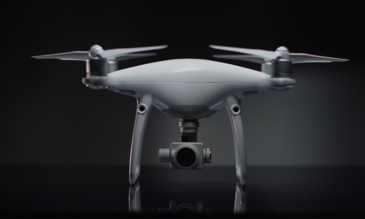

DJI – Introducing Phantom 4 Pro

DJI – Introducing Phantom 4 Pro
2016-11-15
DJI – Phantom 4 Pro – Hawaiian Lava

DJI – Phantom 4 Pro – Hawaiian Lava
2016-11-15
DJI – Phantom 4 Pro - Sharper Vision

DJI – Phantom 4 Pro - Sharper Vision
2016-11-15

CARGADOR

Voltaje 17.4 V
Potencia nominal 100 W
