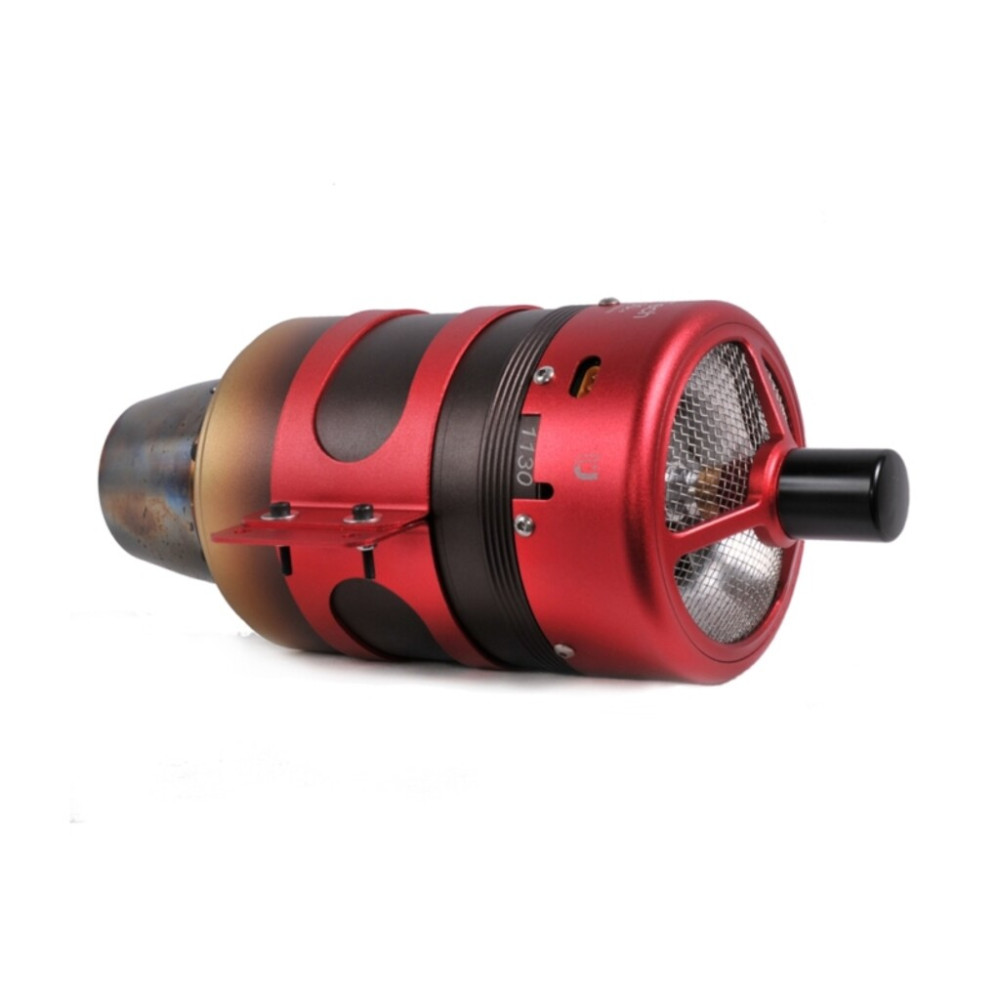

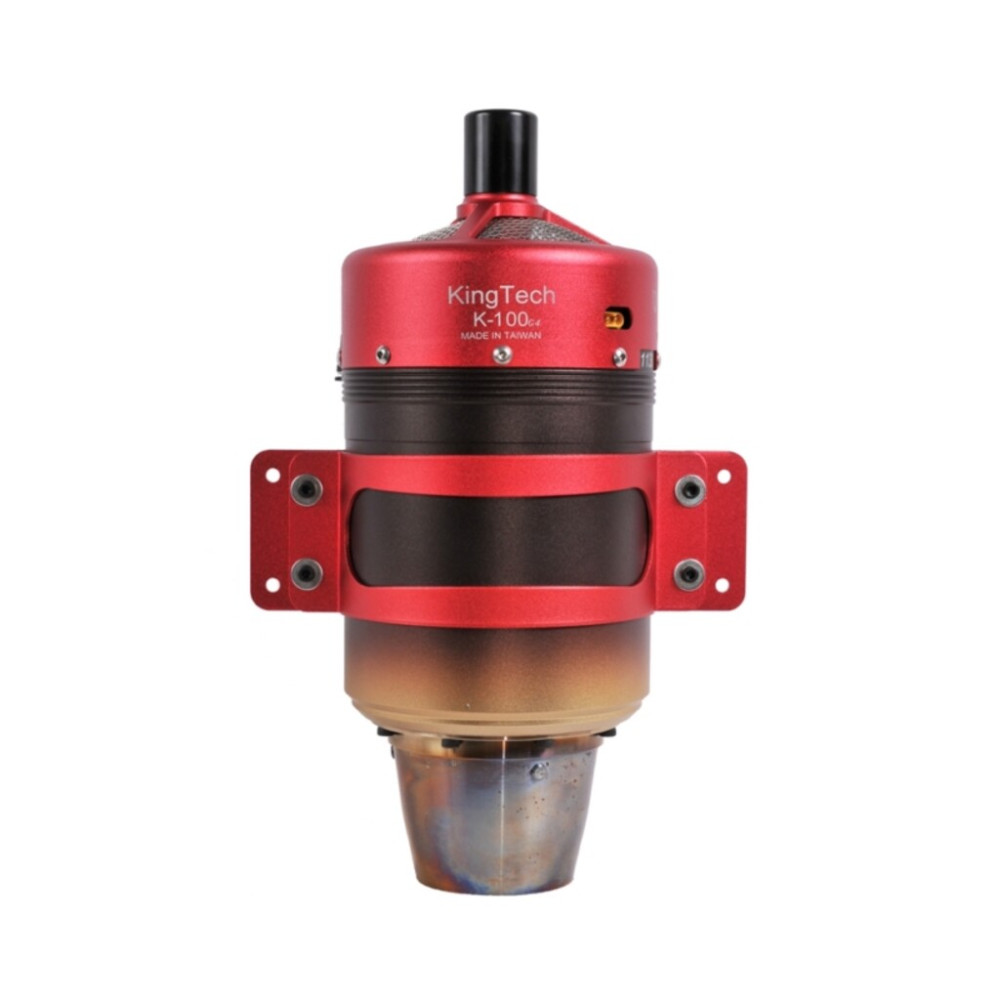

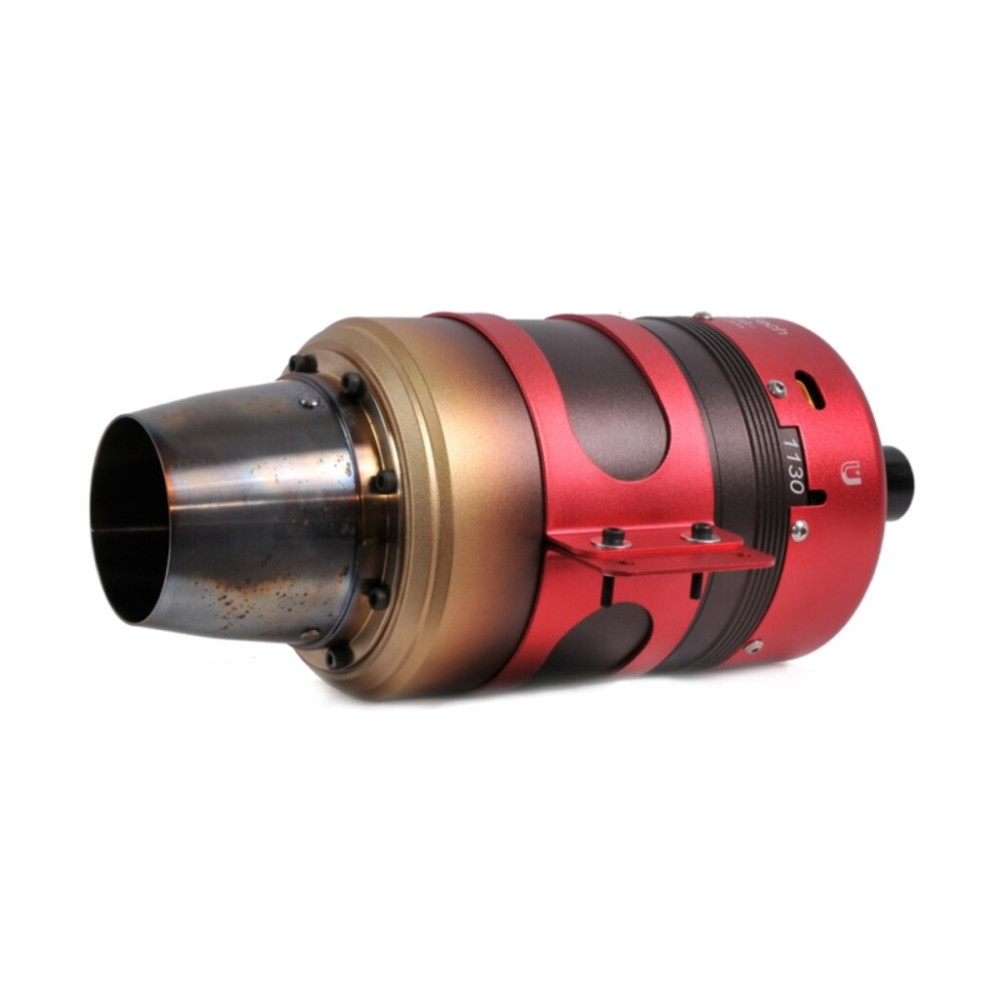

KINGTECH TURBINA K-100G4 KERO START

KingTech SPECIFICATIONS:

• KingTech G4 utilizes SBus data transmission.
• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.



K-100G4 SPECIFICATIONS

• Diameter: 95.25mm ( 3.75” )
• Length: 235.5mm ( 9.27” )
• Weight: 1300g ( 2 lb 14 oz )
• Maximum RPM: up to 140000
• Thrust: 10 KG @ 15° C( 22 lb. @59° F. )
• EGT: 700°C max
• Fuel consumption: 385 g / min ( 11.84 oz / min )
• Fuel: Diesel, Jet A1, Kerosene
• Lubrication: 5%
• Maintenance cycle: 25 hr US$300

G4 MODEL COMPONENTS LIST

• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attchments
• Instruction Manual
