ROBART ROBOSTRUT READY 90§ COMBO 510W1

This is a Robart Robostrut Ready 90° Main Gear Set with Air Kit.

FEATURES:

• The 510 Series Retract offers a high performance air up and spring down.

• Setup from the factory to accept 3/16" struts

• Main gear set designed for the 510 Series Retracts

• The 510 Series Economy Retracts are designed to replace other manufacturer's

• Retract systems.

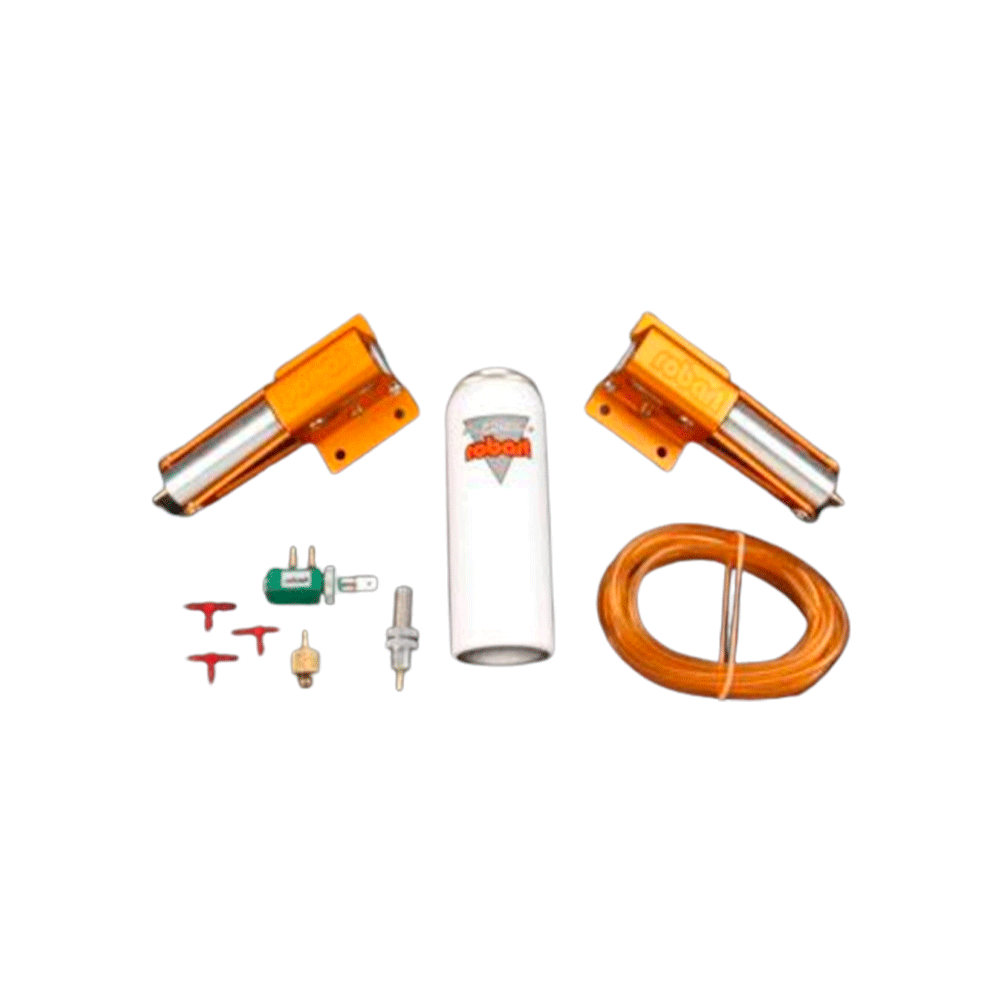

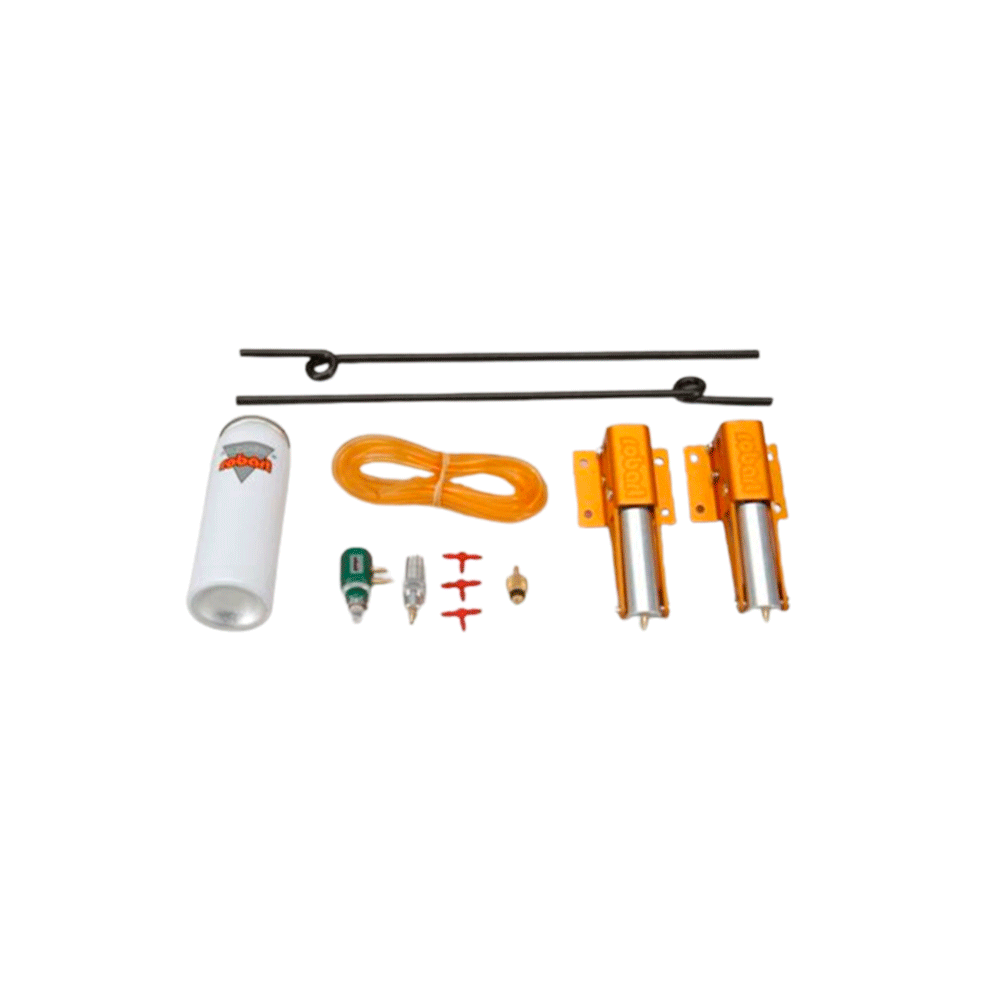

INCLUDES:

510RS Main Retracts

3/16" landing gear wire

Air kit:

• Small air tank

• Control valve

• Fill valve

• Air supply in fitting

• Three tee fittings

• Orange air line

• Instruction sheet

REQUIRES:

• Air pump.

• Link rod assembly to the Control Valve.

SPECS:

• Main Retracts:

• Length: 3-5/8" (92.5mm) including air cylinders

• Width: 1-3/4" (44mm)

• Depth: 1-1/8" (28.5mm)

• Landing gear wire hole:  3/16" (5mm)

COMMENTS:

• Order for Axle Adapter with 3/16" Axle
