RADIO 14SGA R7008SB 2.4GHZ AIR FUTK9410 01004364-3

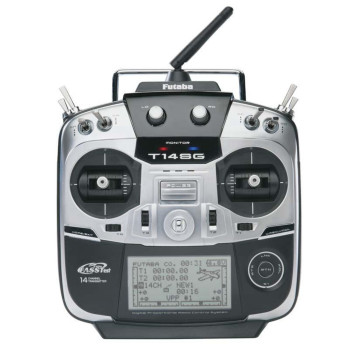

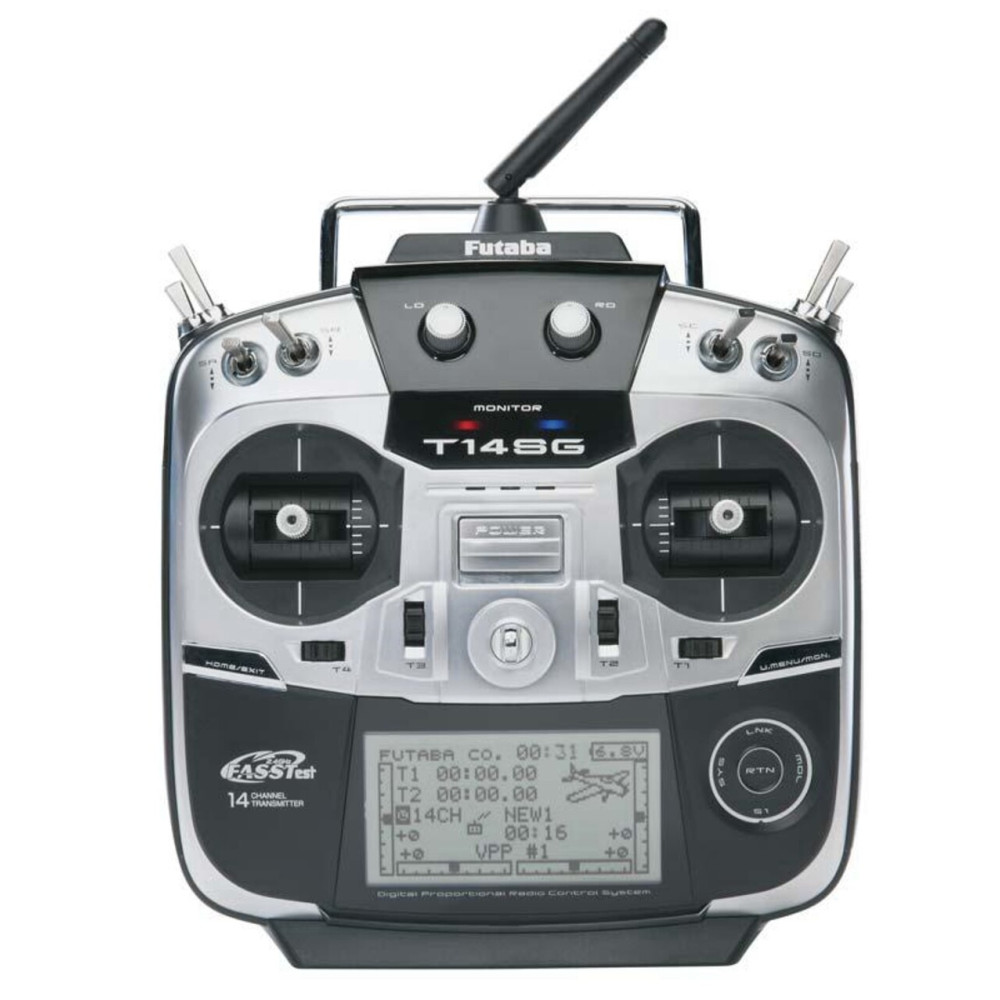

This is the Futaba 14SGA 14 Channel 2.4GHz Computer Radio System on Mode 2 with the R7008SB Receiver.

**Does Not Include Servos**

This is the Mode 2 version-the left stick controls throttle and rudder and the right stick controls elevator and ailerons

This is the airplane version which will default to airplane settings when powered up.

FEATURES:

2.4GHz FASSTest technology is also compatible with Futaba FASST and

S-FHSS protocols, allowing this system to be used with any 2.4GHz air receiver Futaba produces

Transmits and receives telemetry data with Futaba telemetry sensors (not included, sold separately) to monitor flight data, receive alerts and more

30 model memory with 10 character model naming and 10 character user naming

Model data can be saved to an SD card (not included, purchase separately SD:32MG-2GB, SDHC:4GB-32GB)

One year limited warranty through Hobby Services beginning at date of purchase

Left and right assignable slider switches

Two assignable rotary knobs

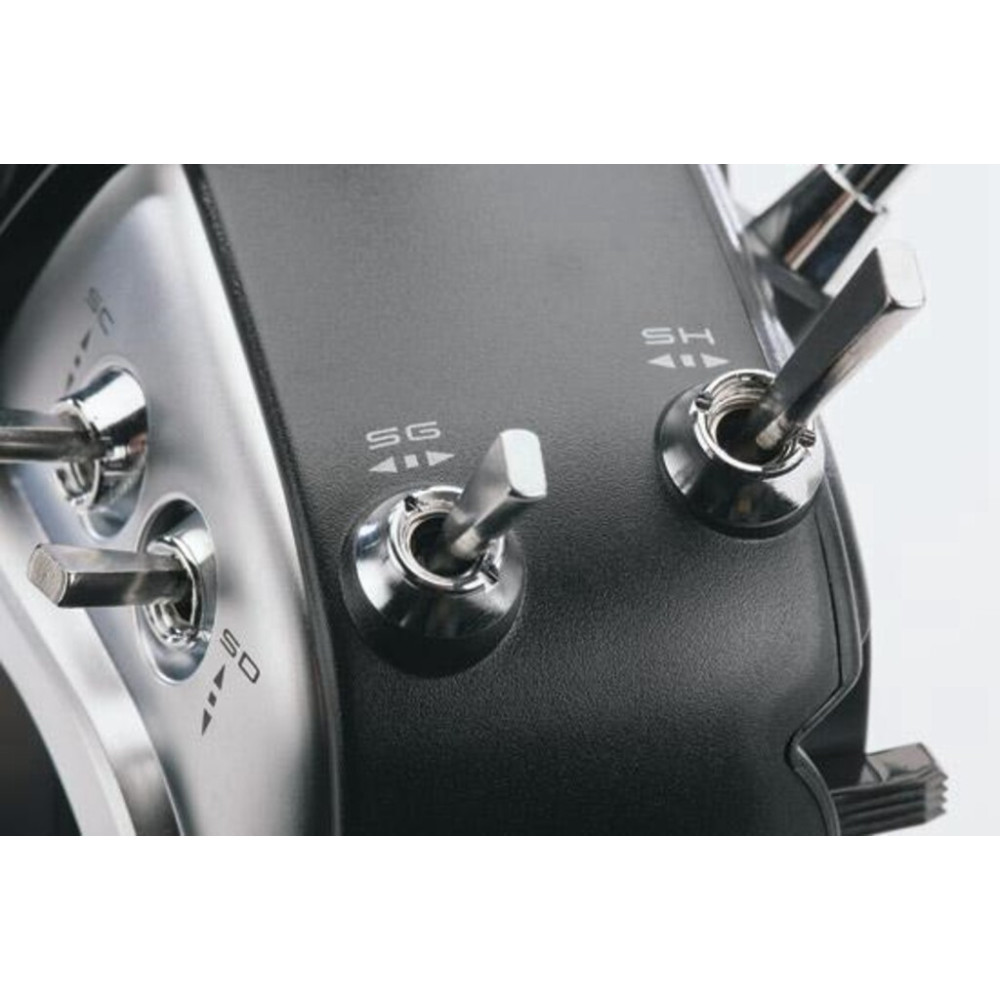

Six assignable three-position switches

One assignable momentary two-position switch

One assignable two-position switch

S.BUS2 programmability allows multiple servos, gyros and telemetry

to be installed with minimum amount of cables

Programming port and earphone jack

Airplane Features;

7 different wing types, 3 different tail types, 2 different rudder types

Flap setting menu

Differential ailerons

Aileron to camber flap mixing, aileron to rudder mixing

Rudder to aileron mixing and rudder to elevator mixing

Camber mixing, elevator to camber mixing, camber flap to elevator mixing

Snap roll, V-tail and airbrake mixing

Ailevator

Winglet

Motor mixing

Fuel mixture mixing (single and twin)

Gyro mixing

Throttle curve (5-point), Pitch curve (5-point)

Idle down

Helicopter Features;

6 swash plate types

Pitch/throttle curves (5-point)

Throttle hold

Swash mix

Throttle mix

Pitch to rudder mixing

Fuel mixture

Gyro (flybarless support)

Governor (700-3500 rpm)

Hover pitch and throttle

High/low pitch

Swash AFR

Swash setting (mixing rate, linkage and speed compensation), swash ring (electronic)

Throttle cut

Glider Features:

11 different wing types, 3 different tail types, 2 different rudder types

Flap setting menu

Differential Ailerons

Aileron to camber flap mixing

Aileron to brake flap mixing

Aileron to rudder and rudder to aileron mixing

Rudder to elevator mixing

Camber mixing

Elevator to camber mixing

Camber flap to elevator mixing

Butterfly mixing, butterfly to elevator mixing

INCLUDES:

Futaba 14SG 14 Channel 2.4GHz Computer Radio System on Mode 2 with

R7008SB Receiver, 6V 1800mAh NiMH Transmitter Battery, Instruction

Manual, and LiFe Spacer for optional FT2F2100B/FT2F1700B battery

pack, Battery Charger, Neck Strap, and Switch Harness

REQUIRES:

Servos of modeler's choice

SPECS:

Transmitter;

Transmitting Frequency: 2.4GHz band

System: FASSTest14CH, FASSTest12CH, FASST MULTI, FASST 7CH, S-FHSS switchable

Power Supply: 6.0V HT5F1800B NiMH battery (FUTM1482)

R7008SB Receiver (FUTL7675);

Receiving Frequency: 2.4GHz FASSTest system

Power Requirement: 3.7 - 7.4V (voltage range 3.5 - 8.4V)

Current drain: 75mA

Extra Voltage Port: 0 - 70V DC

Size: 0.98 x 1.9 x 0.56" (24.9 x 47.3 x 14.3mm)

Weight: 0.38oz (10.9g)
