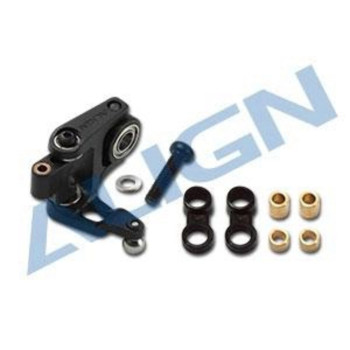

TR250PLUS TAIL PITCH ASSEMBLY H25T001XXT
- Código: 152211
- Marca: ALIGN
- Estoque: Disponível
-
$21,00
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Product:
Package:
Instruction:
- Utilizes dual point attachment design for zero play and higher precision control feel.
- Use for H25129 Metal Tail Torque Tube Unit.
- Must with H25021A Tail Pitch Assembly.
- Must with H25066A Tail Pitch Control Link.
Specification:
- Linkage ball A(0#-80x2) × 1(Φ3.5x5.3mm)
- I-shaped Arm × 1
- Mount Link × 1
- Bearing F681XZZ × 2(Φ1.5xΦ4xΦ5x2mm)
- Collar × 1(Φ1.5xΦ2.5x5mm)
- Socket Button Head Screw× 1(#0-80x8mm)
- Washer × 1(Φ1.5xΦ3x0.5mm)
- Tail pitch control link × 2
- Collar A × 2(Φ1.5xΦ2.3x2.4mm)
- Collar B × 2(Φ1.5xΦ2.3x1.4mm)
- Socket button head self tapping screw × 2(T1.5x4mm)
- Bearing holder × 1(8.5x7.3x5.6mm)
- Washer × 1(Φ3xΦ4.8x0.6mm)
- Bearing MR63ZZ × 2(Φ3xΦ6x2.5mm)
