SPEED OS OCA-240 40A 25V W/PROGRAMMER OCP-2 ESC 52020041
- Código: 208987
- Marca: O.S. ENGINES
- Estoque: Disponível
-
$59,99
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Linha de Brinquedos testados não possui Garantia.
Produtos em Promoção e Abaixo do Custo não possuem Troca nem Devolução.
FEATURES
For airplane and helicopter usage
Low voltage cut-off stops motor before control is lost and cells are over-discharged
Battery type and cell number recognition
Start protection guards against involuntary starting of motor
No signal cut-off switches ESC off when transmitter signal is not received
INCLUDES

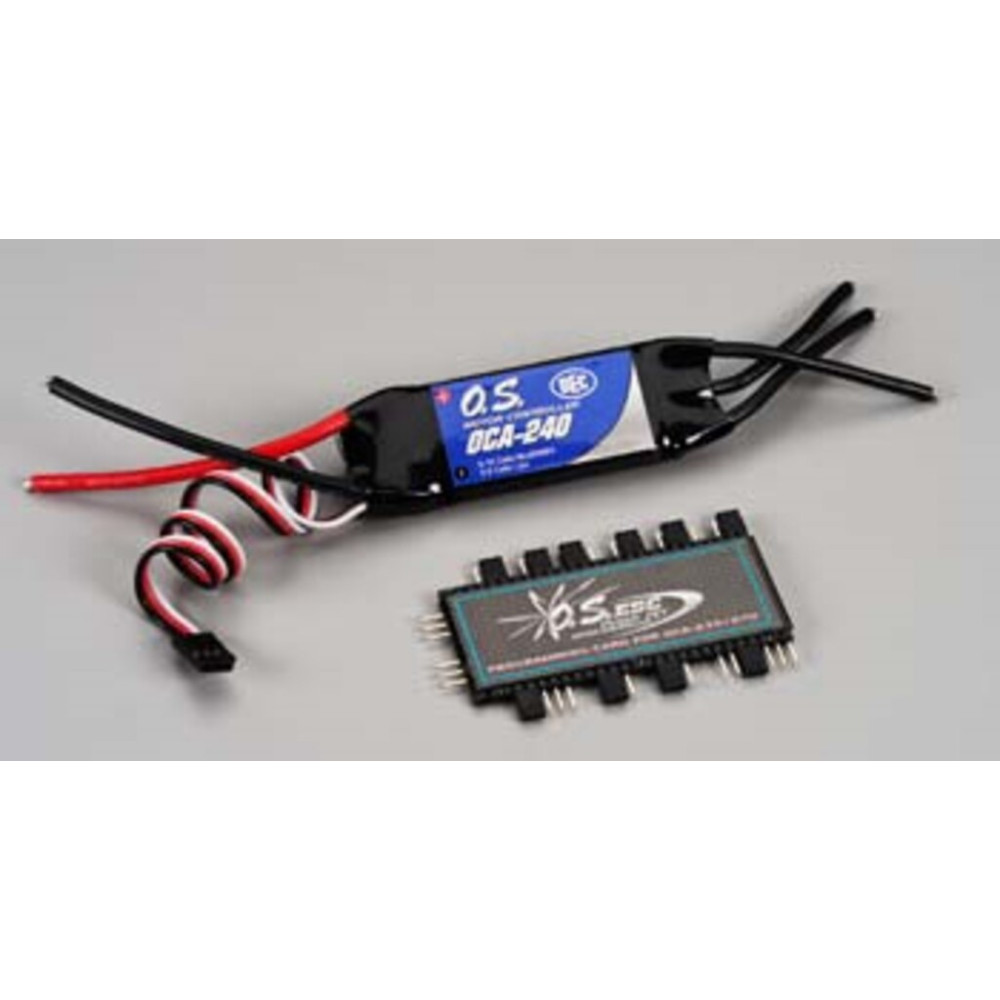

OCA-240 40A 25V Electronic Speed Control with pretinned Motor and Battery Leads, Receiver Connector and Instructions
REQUIREMENTS
Brushless motor such as the O.S. OMA-2810-1250, OMA-2815-1100, OMA-2820-950, OMA-3805-1200, OMA-3810-1050, OMA-3815-1000, Battery connectors of modeler's choice (O.S. motors listed above include ESC connectors)
SPECIFICATIONS
Cell Handling Capability: 6-18 NiCd/NiMH, 2-6 LiPo
Function: Forward-Stop-Brake-Reverse
Voltage Range: 6-25.2V
Peak Load Current: 40A (50A 5 seconds)
BEC Output: 5.5V 3A (peak 5A)
PWM Frequency: 8-16kz
Protective Function: Start protection/Low Voltage/ No Signal cut-off/ Overheat protection
Parameter Setting: ESC Programmer OCP-2 supplied
Dimensions: 2.9 x 1.1 x 0.47" (75 x 28 x 12mm)
Weight: 1.6oz (45g)
