RADIO JETI 12CH DUPLEX DS-12 BASIC EX MULTIMOD M2 BLUE US

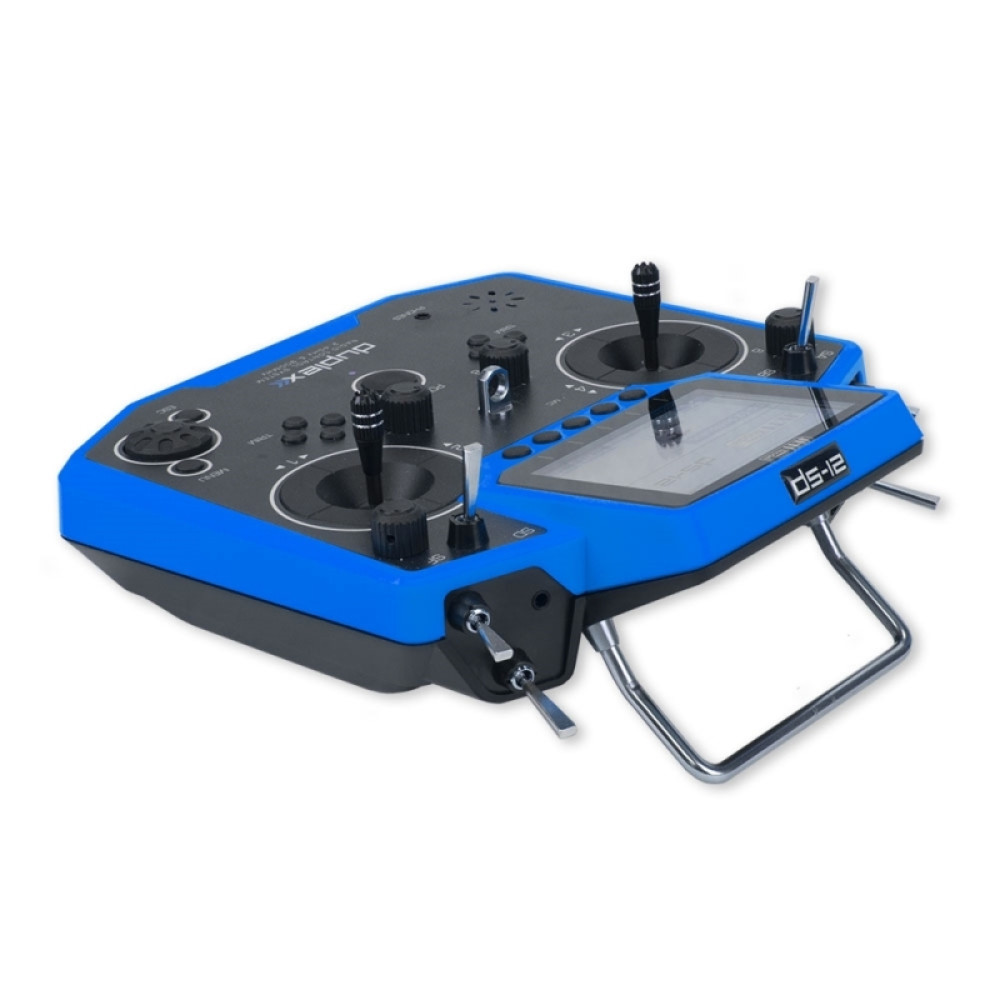

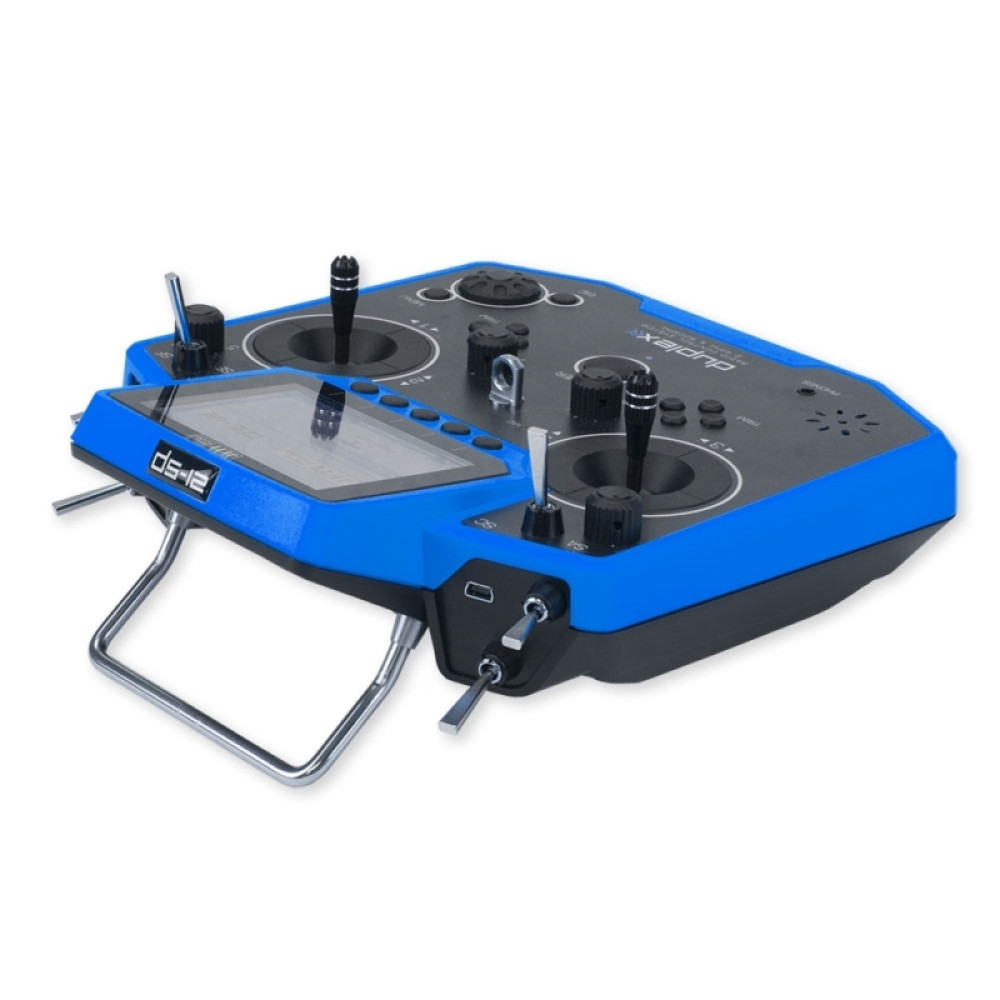

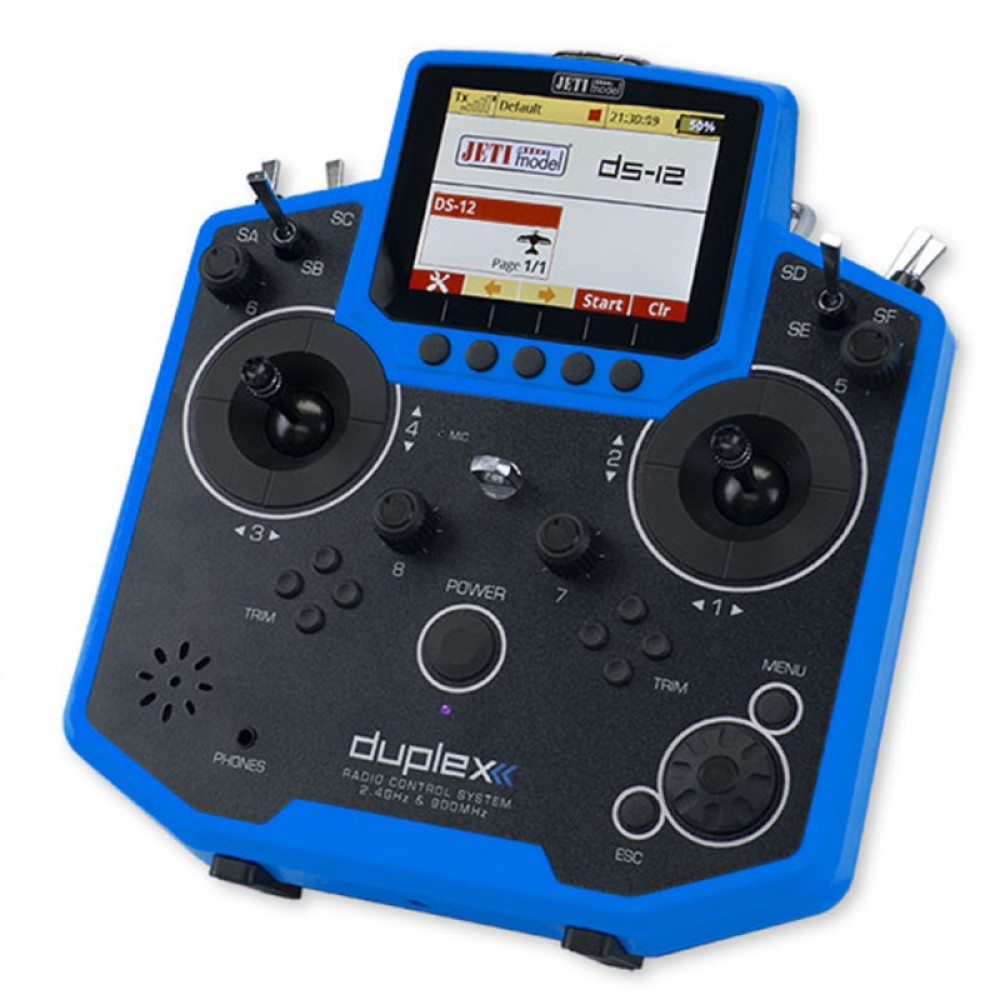

JETI Duplex DS-12 EX Multimod Blue Transmitter

The JETI Duplex DS-12 represents a new generation of precision transmitters, offering the perfect balance of advanced technology, reliability, and affordability. Designed and manufactured in the Czech Republic, the DS-12 allows every pilot to experience the professional-grade performance and telemetry features that have made JETI world-renowned  now in a lighter, more compact form.

Overview:

• The DS-12 is a fully digital, 16-channel (upgradeable to 24) transmitter operating on 2.4GHz & 900MHz dual redundant systems with triple integrated antennas. Built from a durable molded plastic frame, it combines robust construction with lightweight handling for all-day comfort. Featuring Hall-sensor gimbals (4096-step resolution), vibration feedback (haptic), and a high-contrast 320×240 color LCD display, it delivers exceptional control precision and clear visual feedback in any lighting condition.
• This radio system fully integrates with all JETI Duplex EX components and sensors, offering real-time telemetry, customizable audio alerts, and seamless data transfer to your PC or JETI Studio software.

Features:

• Dual-band 2.4GHz & 900MHz operation with three integrated antennas
• 4096-step Hall-sensor gimbals with ball bearings for precise stick control
• Haptic feedback – vibration alerts for critical alarms or events
• Integrated microphone for custom voice recordings
• Voice command and customizable telemetry announcements
• Built-in accelerometers & gyros – trigger functions or announcements via motion
• Full-color 320×240 backlit LCD display for perfect sunlight readability
• Mini USB port for firmware upgrades and telemetry downloads
• Integrated speaker and 3.5mm headset jack
• Upgradable firmware with future Wi-Fi and Bluetooth support
• Fully integrated logical switches – create complex control combinations easily
• 9-point programmable mixes for all 16 channels (expandable to 24)
• Pre-programmed servo setups for airplane, helicopter, and multicopter configurations
• On-board 8GB SD card for data logging and audio storage
• Programmable alarms and sounds for telemetry, battery voltage, receiver signal, and more
• Up to 10 programmable timers for total flight time, motor runtime, or specific model functions
• Fully compatible with all Duplex EX telemetry sensors

 Specifications:

• Channels: 16 proportional (Upgradeable to 24)
• Frequencies: 2.4GHz & 900MHz dual redundant
• Display: 320×240 color LCD, backlit
• Stick Resolution: 4096 steps
• Power Supply: Integrated Li-Ion 6200mAh battery
• Connectivity: Mini USB, 3.5mm headset jack
• Memory: 8GB internal SD card
• Dimensions: 230 × 270 × 40 mm
• Weight: ~1300 g

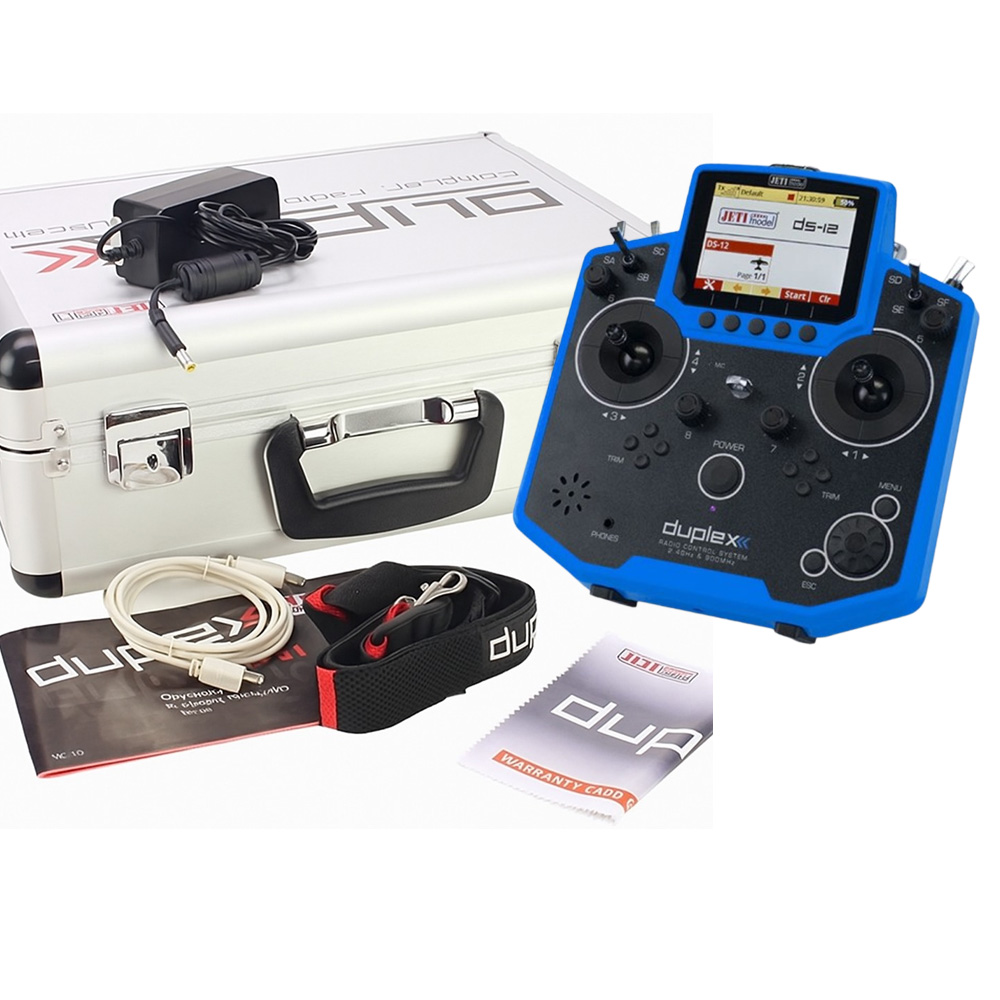

Included:

• (1) JETI Duplex DS-12 EX Multimod Blue Transmitter
• (1) 110–230V Wall Power Supply
• (1) Li-Ion 6200mAh Battery (pre-installed)
• (1) Mini USB to USB PC Cable
• (1) Aluminum Carrying Case
• (1) JETI Neck Strap
• (1) Printed Manual and Documentation
