AVMAP ULTRA EFIS UX0EFS52AM

The AvMap Ultra EFIS

• This amazing little creation combines 9 instruments into 1! That’s right, the AvMap Ultra EFIS is an Altimeter, Airspeed Indicator, Artificial Horizon, Directional Gyro/HSI, Side Slip Indicator, Vertical Speed Indicator, Automatic Direction Finder with GPS, G-Meter and a Magnetic Compass!
• Specially designed for light-sport, ultralight and experimental aircraft the AvMap Ultra EFIS is super light at just 8.1 OZ (230g). Combining the low weight with space saving dimensions of 3.74” x 3.74” x D 2.49″ this unit packs a powerful punch on a small footprint.

Ultra powerful, packed with everything you need:

• 3.5” ultra bright LCD display with 500 cd/m2 brightness
• GPS
• Solid state 3-axis gyro
• 3-axis accelerometer
• 3-axis magnetic field sensor

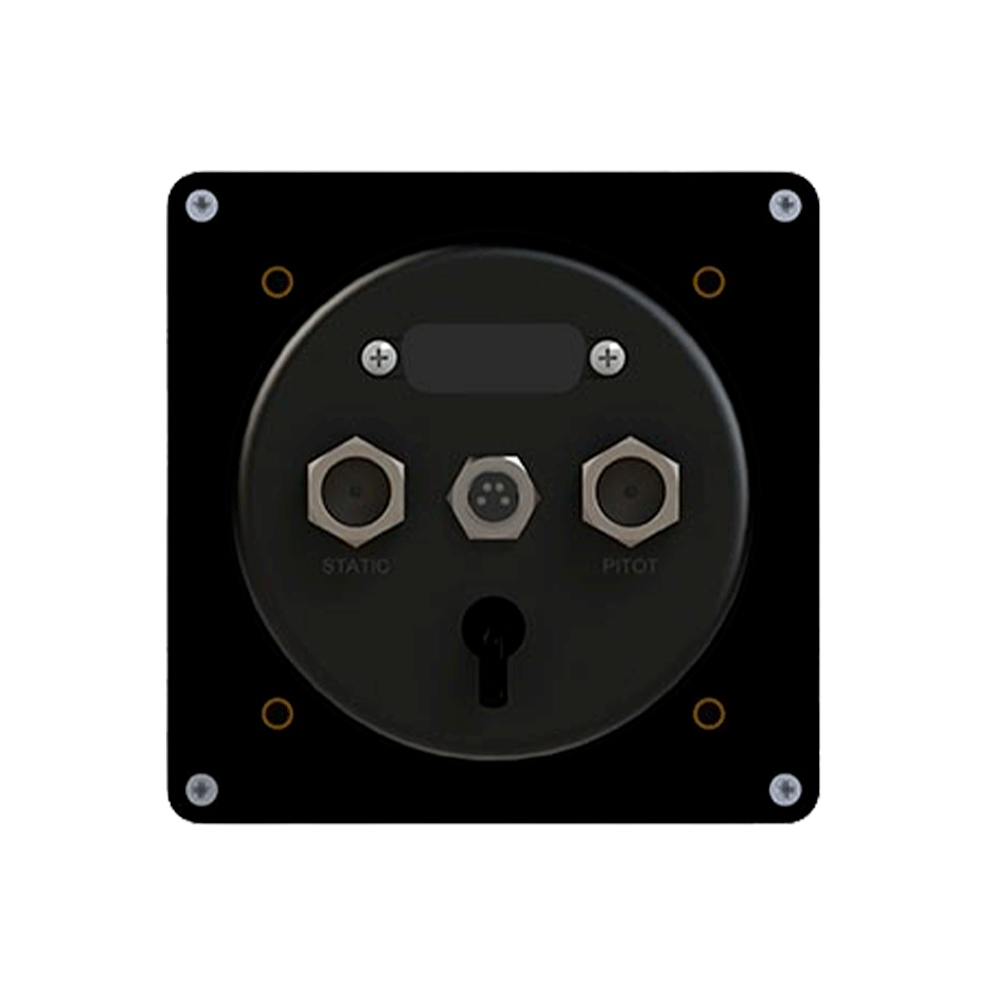

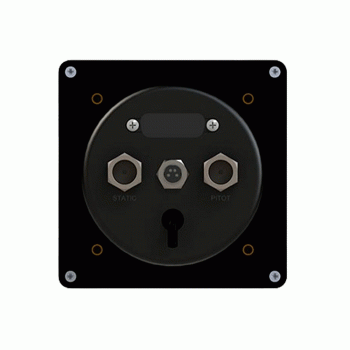

• Pitot and Static air data sensors
• UAV motion processor and sensor fusion software
• Preloaded with Jeppesen database (APT, VOR, NDB)
• When connected to the Pitot-Static, Ultra provides Air Data and advanced performance!

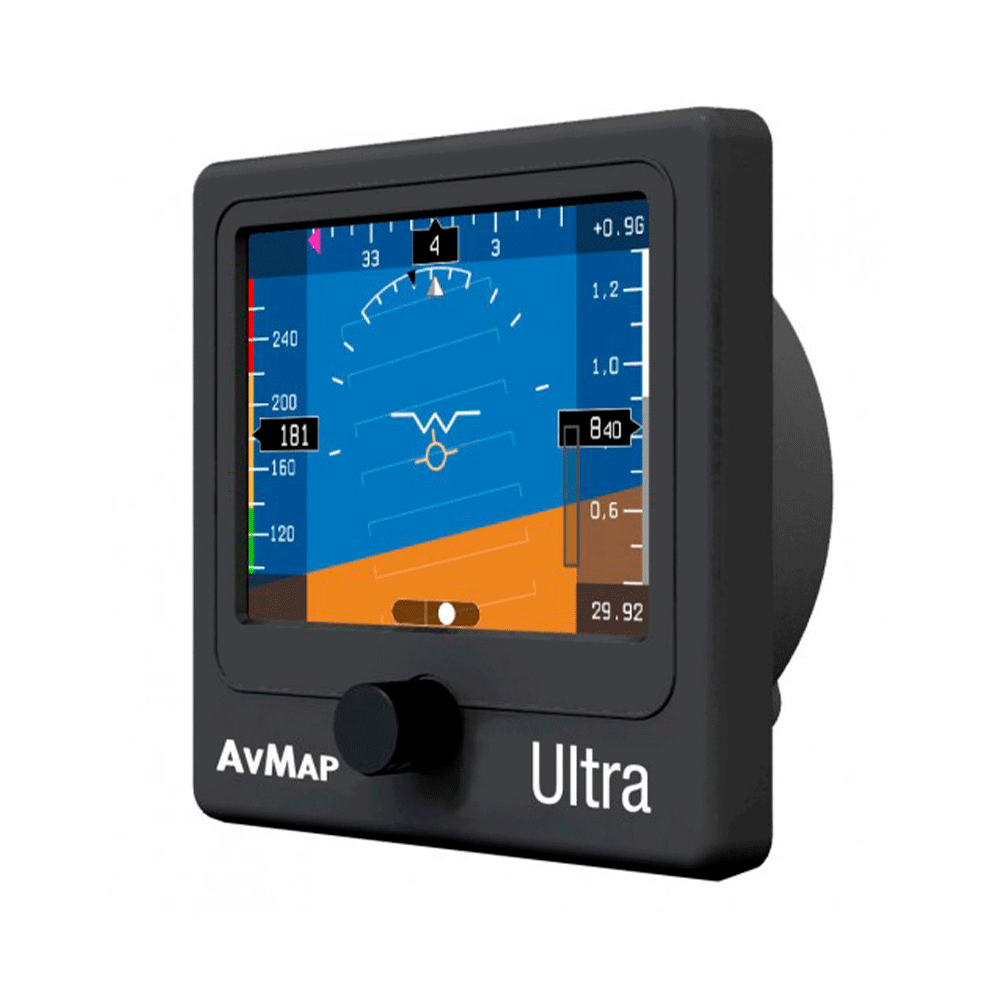

• The AvMap Ultra can display on the 3.5” LCD two different pages: PFD and HSI Changeable by using the rotor knob
• The PFD screen displays the ADAHRS data: Air Data, Attitude, Heading Reference System
• The HSI screen display: Current position, Heading Distance, Direction, Radials relative to reference navigation points, Approximate wind data
• Approved as electronic backup instrument for LAA aircraft

Specifications:

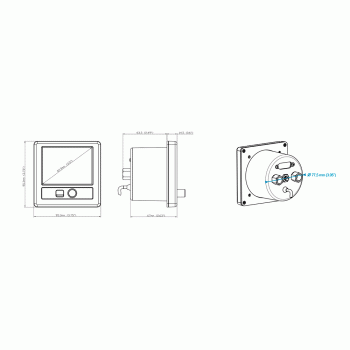

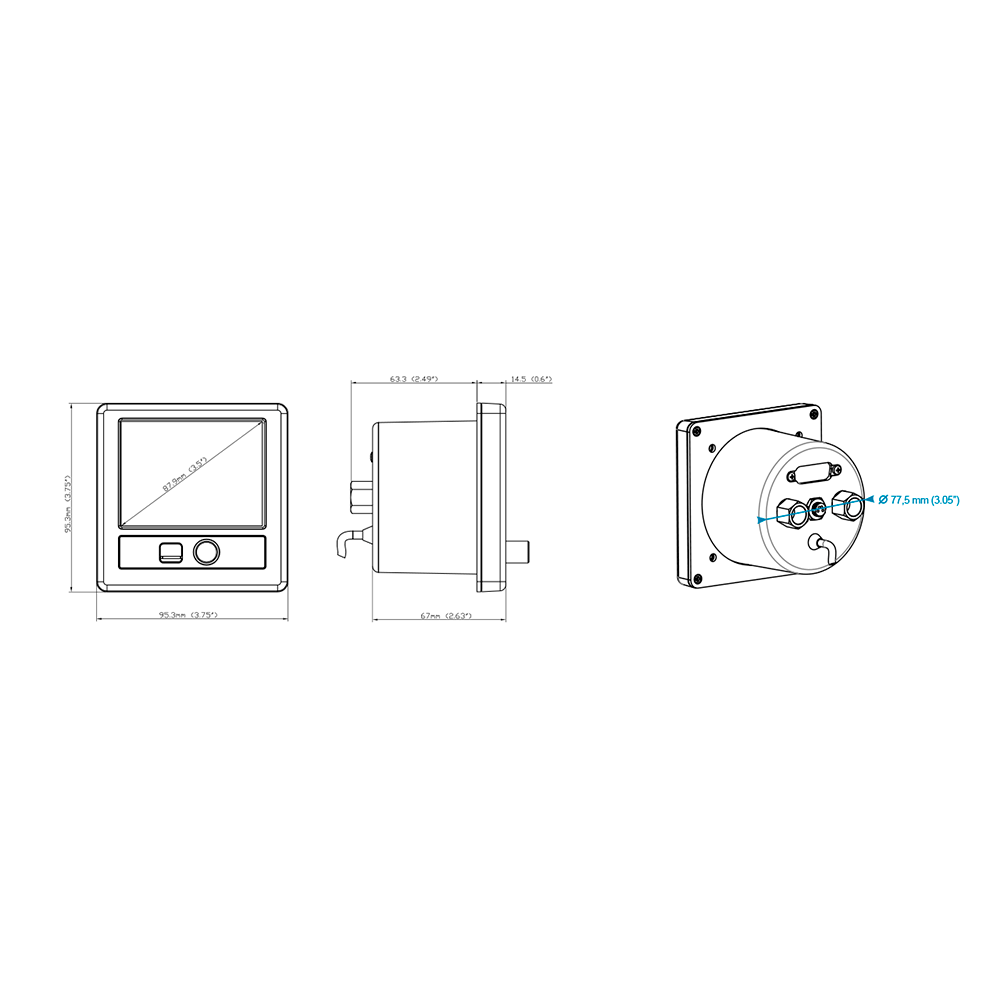

• Dimensions: 95 x 95 x 78 mm (3.74” x 3.74” x 3.07”)
• Weight: 230 g (8.1 oz)
• Diameter: 77.5 mm (3.05”); Installing diameter: 79.5 mm (3 1/8”)
• Display: 3.5”; 320 x 240 pixels, brightness 500 cd/m2
• Operational Temperature: -20 °C to + 70 °C / -4 °F to +158 °F
• solid state 3-axis gyros
• 3-axis accelerometers
• 3-axis magnetometers
• Acceleration range (3 axis): +/- 8 g
• Rotation Range: +/- 1600 deg/s
• Air data sensors: range 10 to 215 kts, -1000 to 40000 ft
• UAV Navigation Motion processor
• Micro SD slot
• 1.5 m (59”) free wires power supply cable (10/35 VDC)
• 3 serial ports RS-232
• Consumption @ 12 V DC: 100 mA nominal

Included accessories:

• GPS receiver U-Blox NEO 6Q with 1.5 m (59”) cable
