MOTOR DL ENGINE 128HD CC HYBRID UAV(DRONE) DLE128HD
- Código: 405645
- Estoque: Indisponível
-
$5.499,99
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Linha de Brinquedos testados não possui Garantia.
Produtos em Promoção e abaixo do Custo não possuem Devolução.

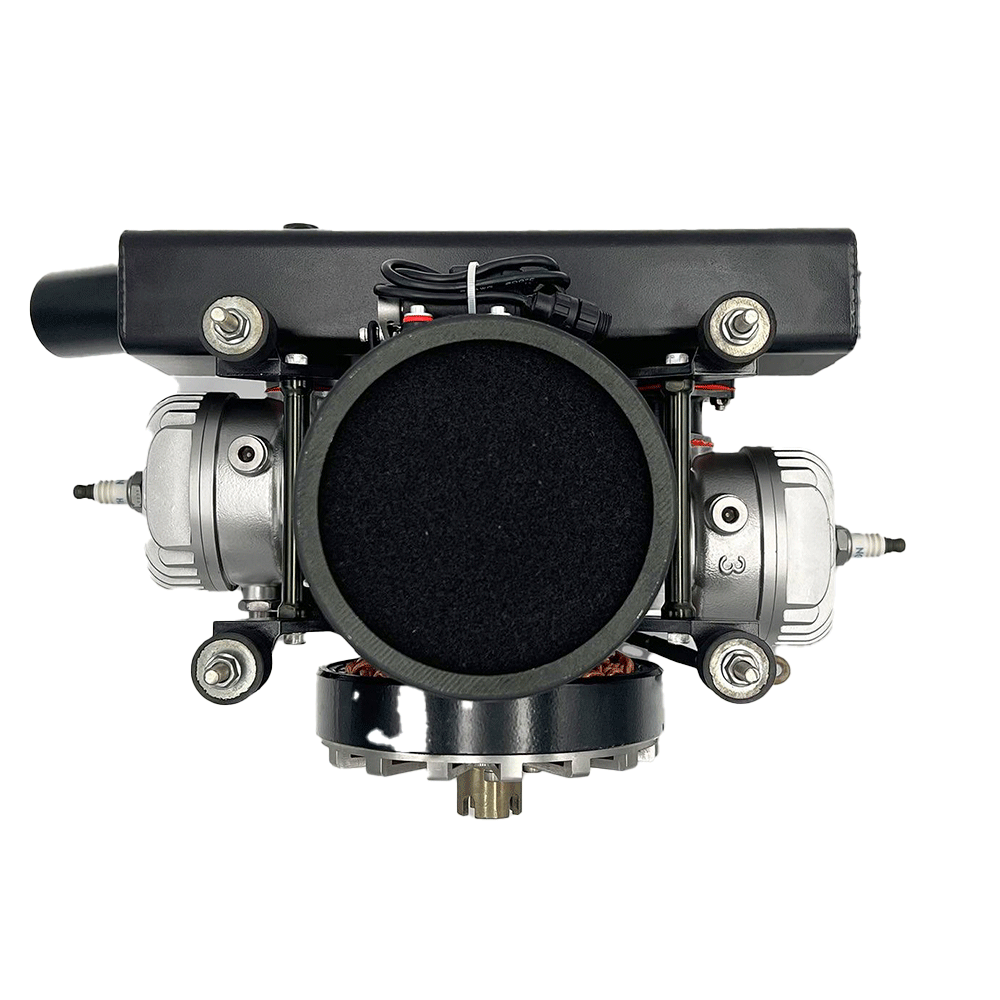

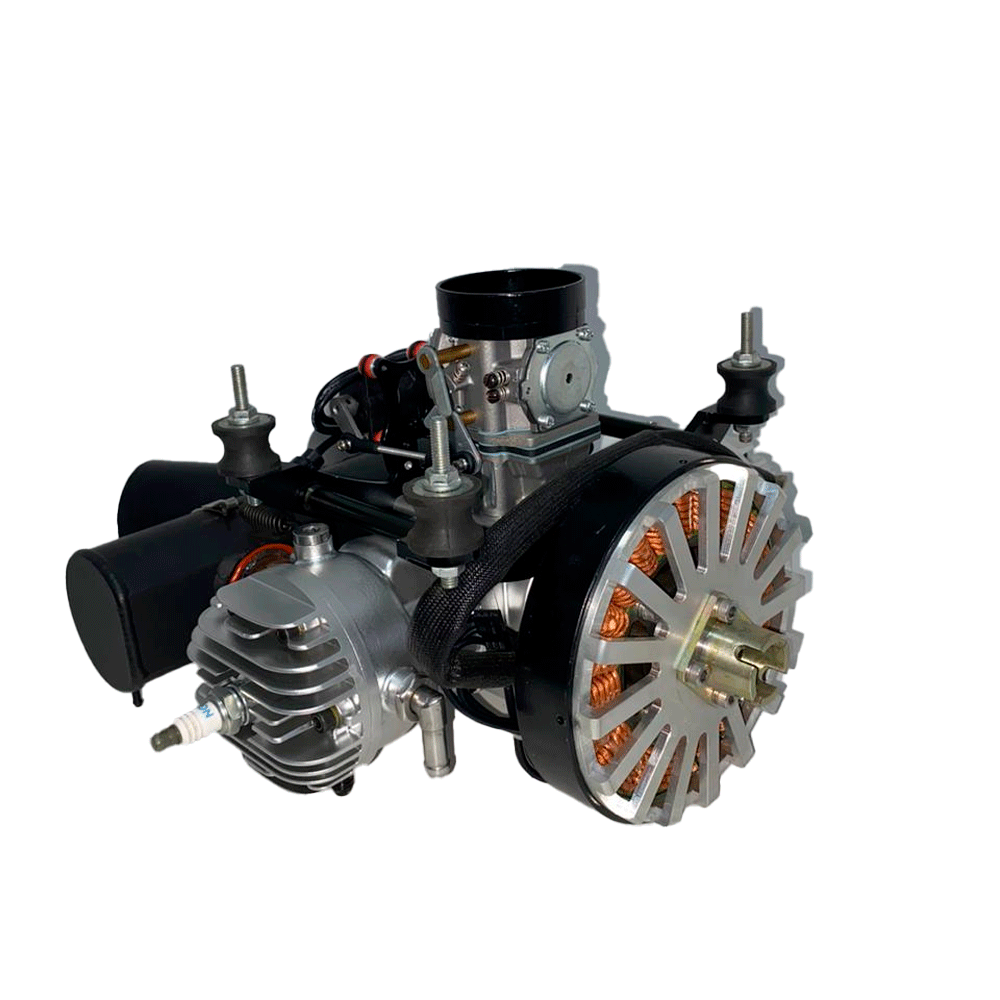

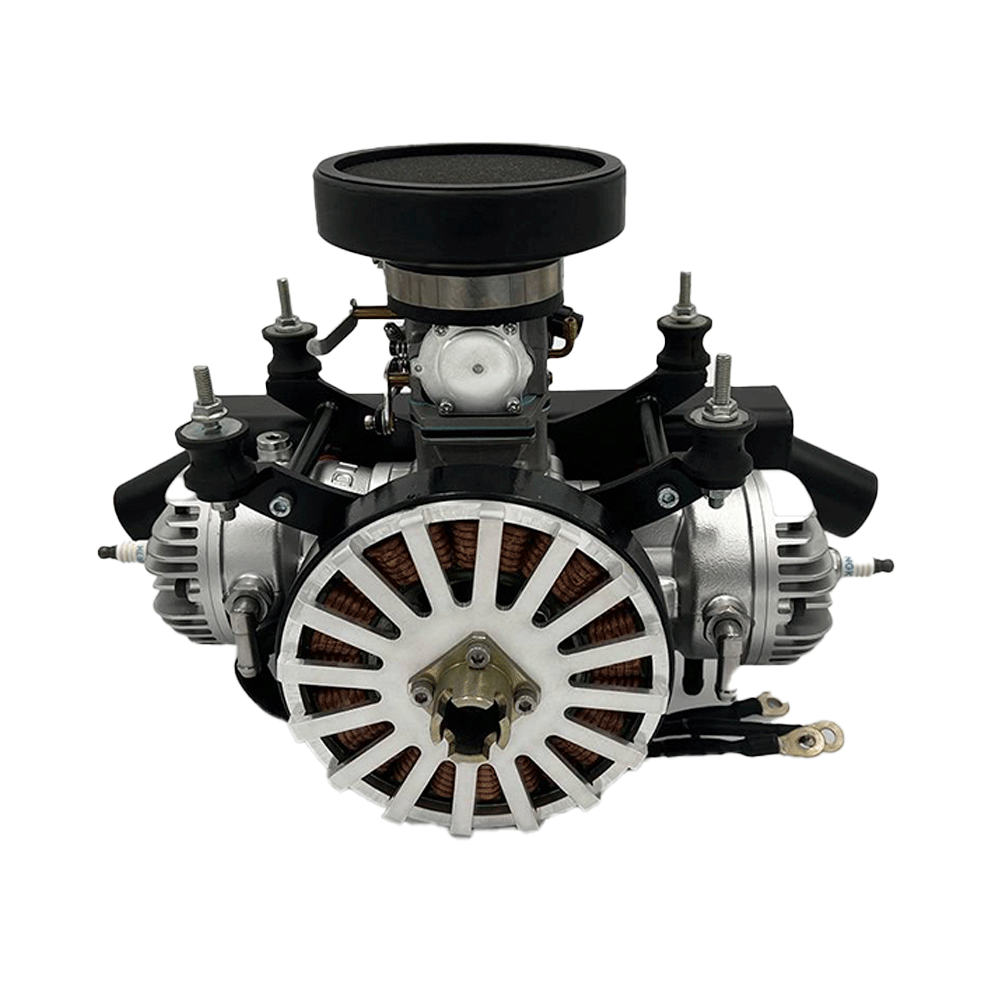

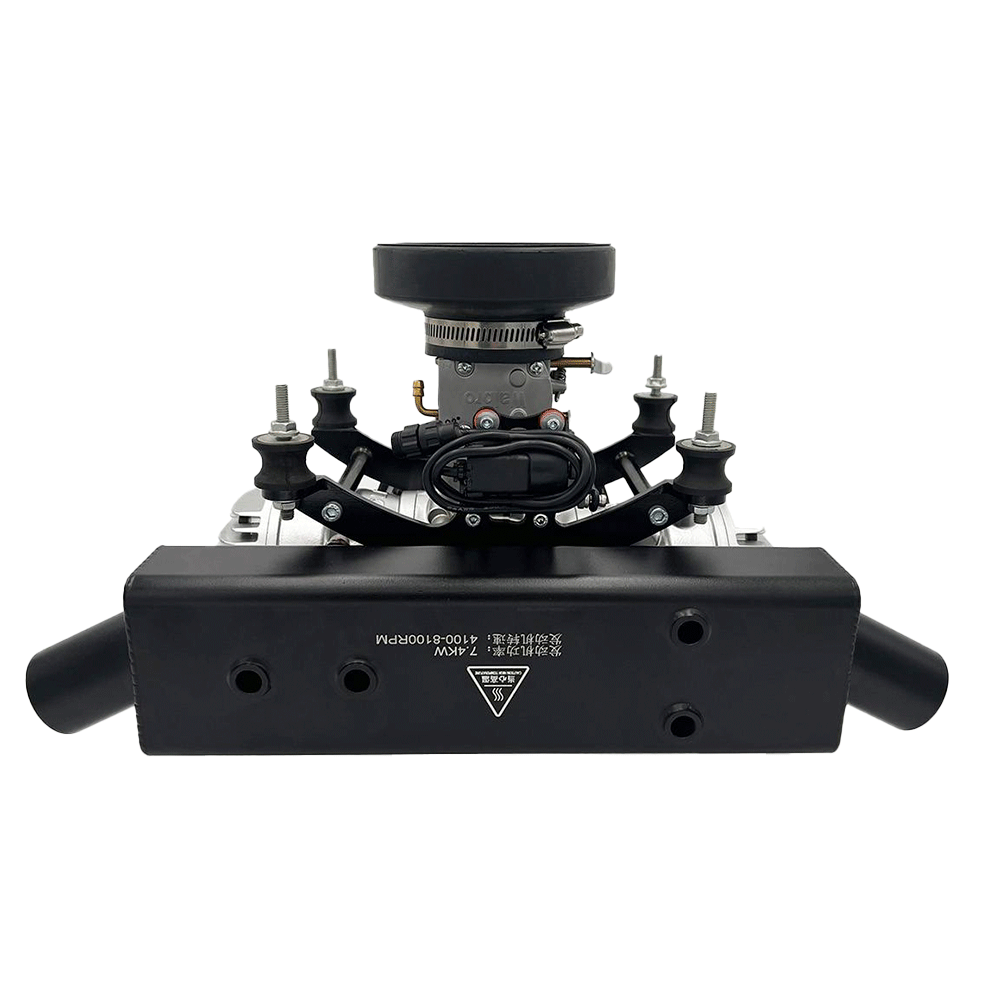

DLE128HD Hybrid UAV Engine，Launched in March, 2020, the dual cylinder two-stroke water-cooled piston engine, with efficient water cooling and heat dissipation, provides a more stable working mode for the engine. The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.
Generator parameters:
- Three phase permanent magnet generator
- Voltage: ac50v to dc50v
- Frequency: non constant frequency type, which changes with the engine speed
Engine parameters:
- Horizontal opposed double cylinder water cooling
- Displacement : 128cm3
- Cylinder bore × Stroke: 47mm × 35mm
- Power 12hp/8300 RPM: 7.4kw (0 altitude)
- Idle speed: 3500-6000 rpm
- Engine weight: 6.2kg
- Weight of cooling system; 2kg (including 800ml coolant)
