DLE70HD hybrid engine, which was launched in March 2021, is a double cylinder two-stroke water-cooled piston engine with efficient water cooling and heat dissipation, providing a more stable working mode for the engine. The engine is designed to provide power for aircraft. This power package is an independent and complete closed-loop system. It has nothing to do with the use and adjustment of remote control and flight control.

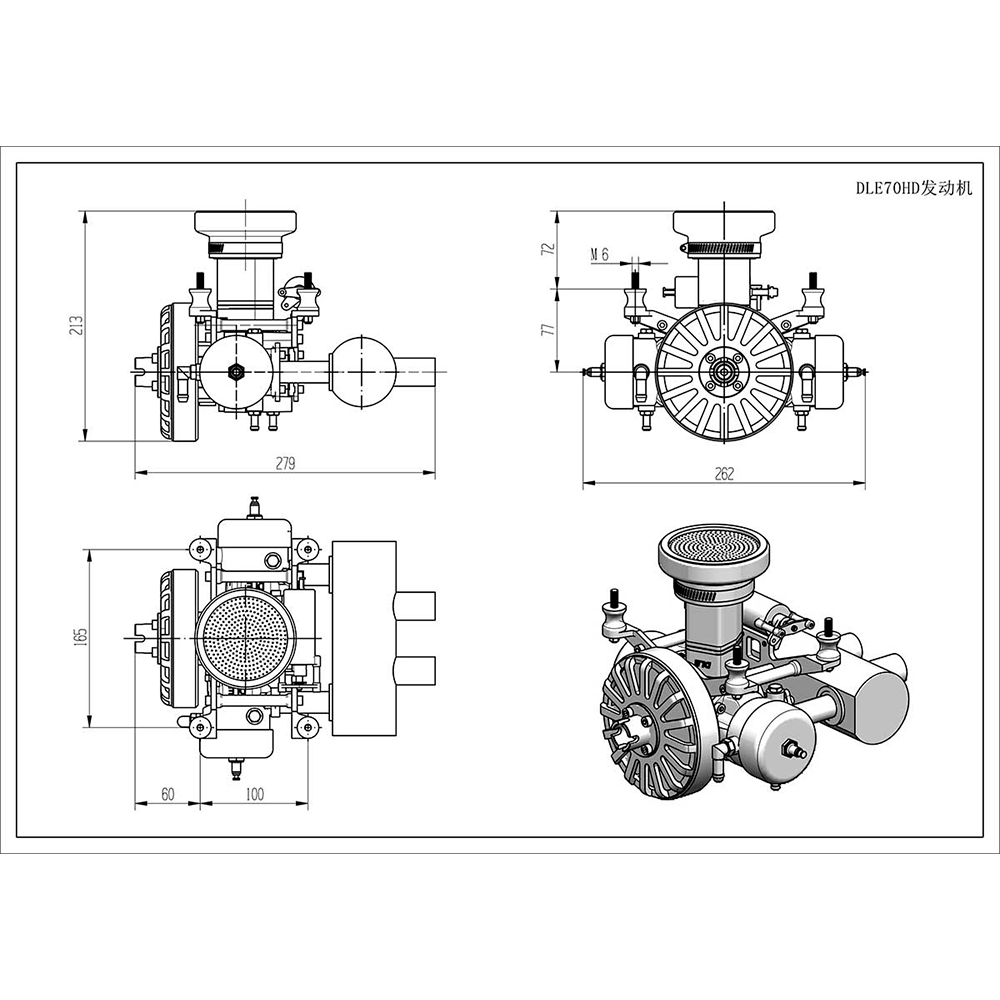

MOTOR DL ENGINE 70CC HYBRID UAV(DRONE) DLE70HD
- Código: 405652
- Estoque: Disponível
-
$3.499,99
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Linha de Brinquedos testados não possui Garantia.
Produtos em Promoção e abaixo do Custo não possuem Devolução.
Generator parameters:
- Three phase permanent magnet generator
- Voltage: ac50v to dc50v
- Frequency: non constant frequency type, which changes with the engine speed
Engine parameters:
- Horizontal opposed double cylinder water cooling
- Displacement : 70cm3
- Cylinder bore × trip：38.5mm×30mm
- Power 7hp/8200 RPM power: 4.2kW (0 altitude)
- Idle speed: 5000-6000 rpm
- Engine weight: 4.8kg
- Weight of cooling system; 2kg (including 800ml coolant)
