BENDIXKING AUTOPILOT AEROCRUZE 100 24V SYSTEM AC100XX

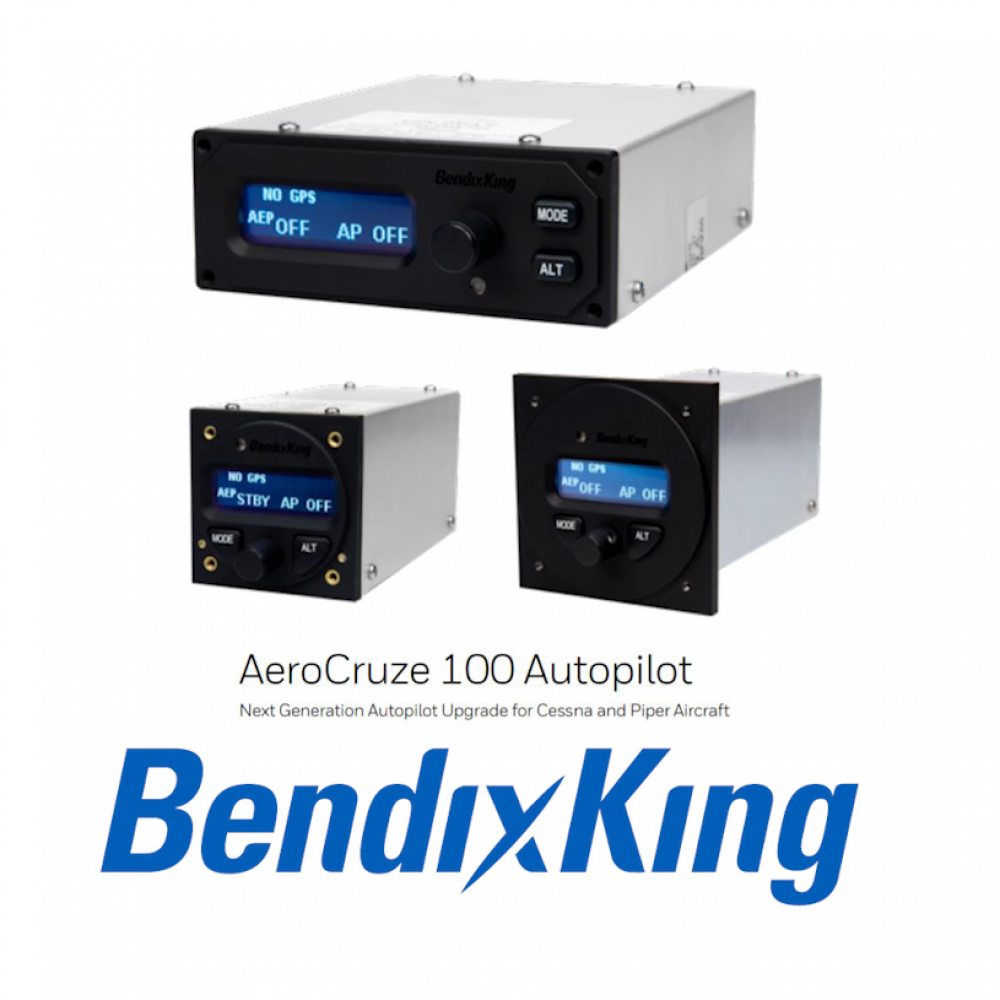

The AeroCruze 100 complete system is offered at a low cost, with the choice of three form-factor variations:

·       2 inch round

·       3 inch round

·       Flat pack

Powerful and Flexible

·       Emergency autopilot level button helps to bring the aircraft to a wings-level position.

·       Connects to either hand-held GPS or IFR panel mount GPS systems.

·       When connected to hand-held GPS, AeroCruze follows programmed flight plans.

·       When connected to panel mount GPS, the autopilot follows roll steering commands to fly complex flight plans.

·       Similar to lane assist in automobiles, the AEP stand-by mode monitors aircraft bank angle. Autopilot corrects bank angles greater than 45-degrees by automatic roll command.

Features & Benefits

·       Altitude Hold

·       Altitude Pre-select

·       Altitude Select

·       Built-in Ground Track DG

·       Control Wheel Steering

·       GPS Nav Mode

·       GPS Steering Mode

·       GTwo Standard Servos

·       Pitch Trim Annunciation

·       Track Select Mode

·       VS Select Mode

·       Vertical GPS Steering Mode

Dimensions

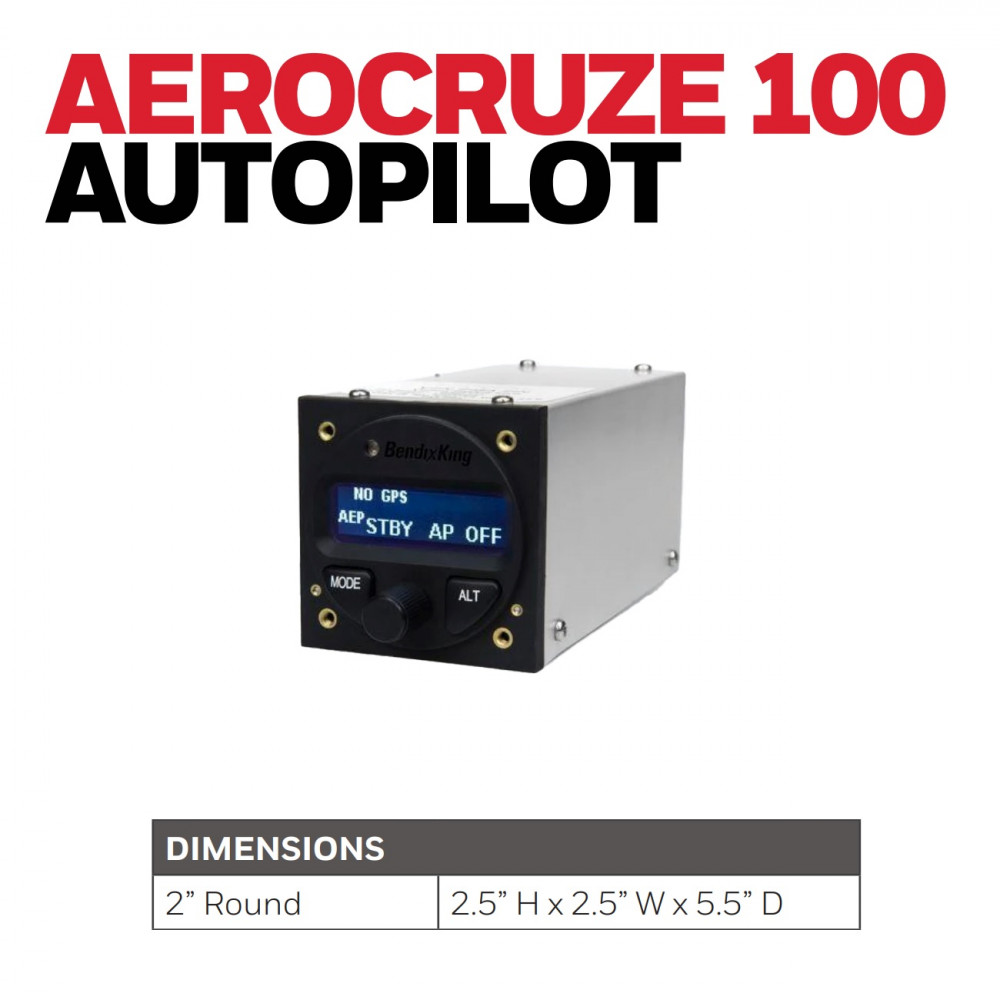

·       2 Inch Round: 2.5 Inch H x 2.5 Inch W x 5.5 Inch D

·       2 in Round: 2.5 in H x 2.5 in W x 5.5 in D

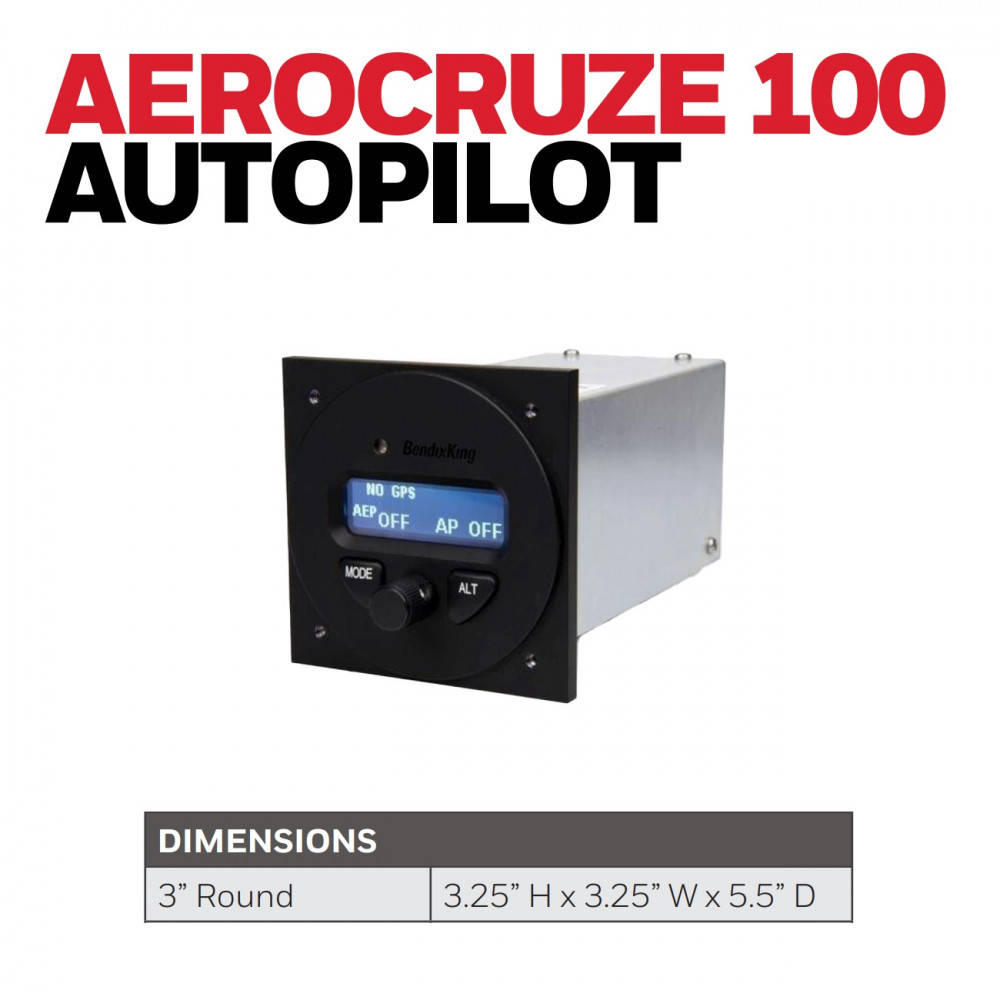

·       3 Inch Round: 3.25 Inch H x 3.25 Inch W x 5.5 Inch D

·       3 in Round: 3.25 in H x 3.25 in W x 5.5 in D

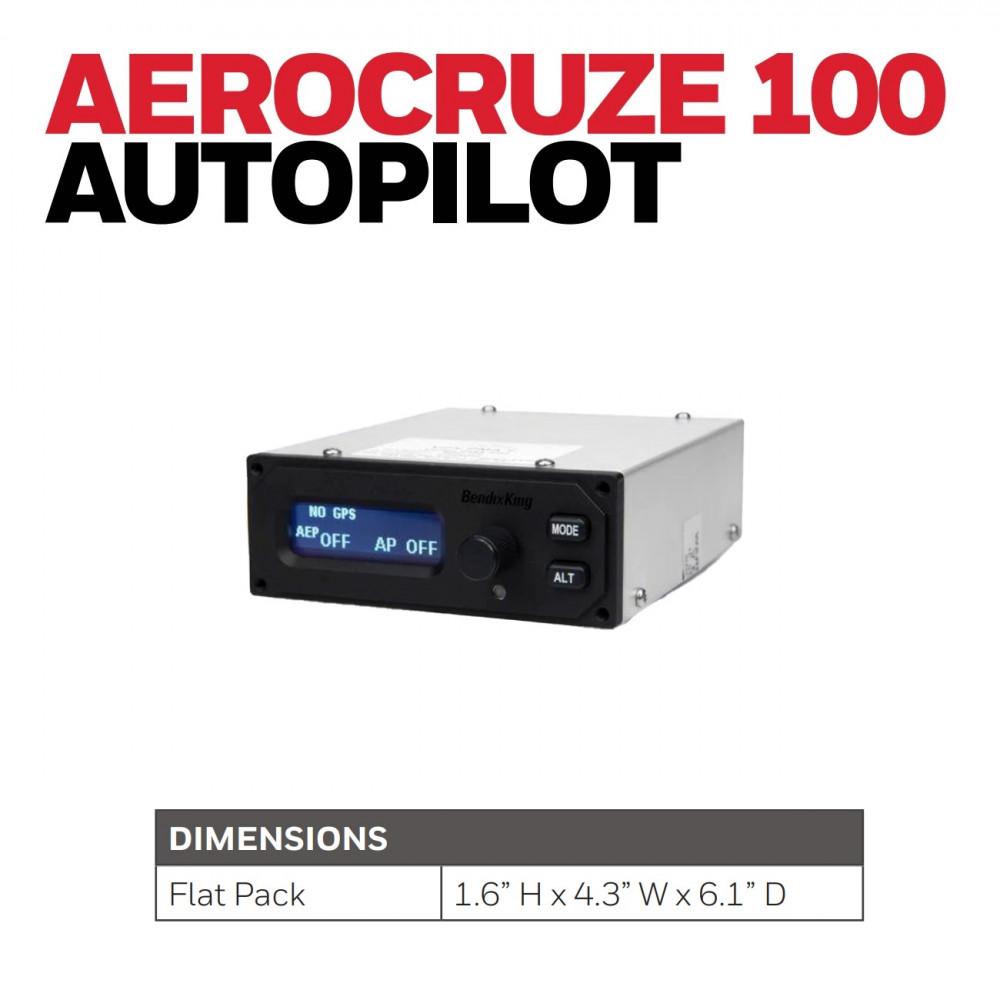

·       Flat Back: 1.6 Inch H x 4.3 Inch W x 6.1 Inch D

·       Flat Back: 1.6 in H x 4.3 in W x 6.1 in D

Performance Data

·       Power Requirements - 24 Volt Variants

Compatible Platform

·       Cessna 172

·       Cessna 175

·       Cessna 177

·       Cessna 180

·       Cessna 182

·       Cessna 185

·       Mooney M20B

·       Mooney M20B-K

·       Mooney M20C

·       Mooney M20D

·       Mooney M20E

·       Mooney M20G

·       Mooney M20H

·       Mooney M20I

·       Mooney M20J

·       Piper PA 28

·       Piper PA 32
