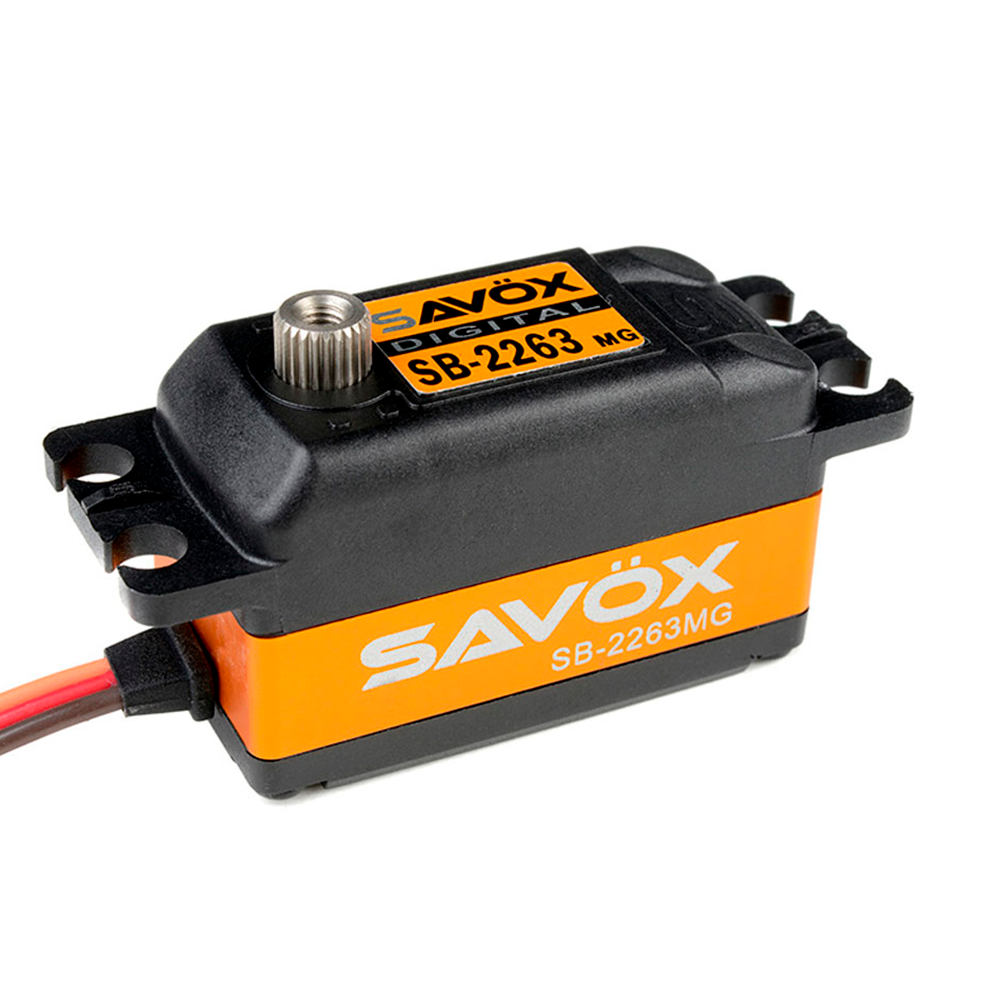

SAVOX SERVO SB-2263MG LOW PROFILE PLUS 6V 10KG 0.076S

SAVOX LOW PROFILE BRUSHLESS DIGITAL SERVO 10KG/0.076s@6.0V

• This servos combines leading edge technology with super high 12 bit (4096) resolution and also features a brushless motor/controller unit, and use a 'bullet proof' all steel gear set for unmatched strength that makes them ideal for 1/10 touring car and off road applications that require a high speed servo.

Features:

• Leading edge digital servo technology

• High efficiency Brushless motor

• Accurate and fast response

• Super high resolution

• Aluminium centre case for improved motor cooling and total strength

• Precision Metal gears

Specifications:

• Servo Technology: Digital Low Voltage
• Input Voltage (V): 4.8V - 6.0V
• Servo Type / Size: Low Profile
• Motor Type: Brushless Motor
• Gear Material: Metal Gears
• Bearing: 2x Ball Bearings
• Servo Case: Aluminium - Composite
• Speed 60°/Sec @ 6.0V: 0.076 Sec/60°
• Torque kg/cm @ 6.0V: 10.0 Kg/cm
• Length: 40.8 mm
• Width: 20.2 mm
• Height: 25.4 mm
• Weight: 48 g
• Connector type: JR
• Servo Horn: 25 Tooth Spline
