RECEPTOR FRSKY 12CH TD SR12 TANDEM DUAL-BAND 900MHZ

FrSky Tandem TD SR12 2.4Ghz/900Mhz Dual-Band 12CH RC Receiver

Description:

Tandem dual-band (TD) receivers are unlike any other FrSky 2.4Ghz or 900Mhz receiver; they operate simultaneously on both the 900Mhz and 2.4Ghz frequencies. This means TD receivers not only provide low-latency signal and long-range control, but also benefit from enhanced reliability and anti-interference performance.

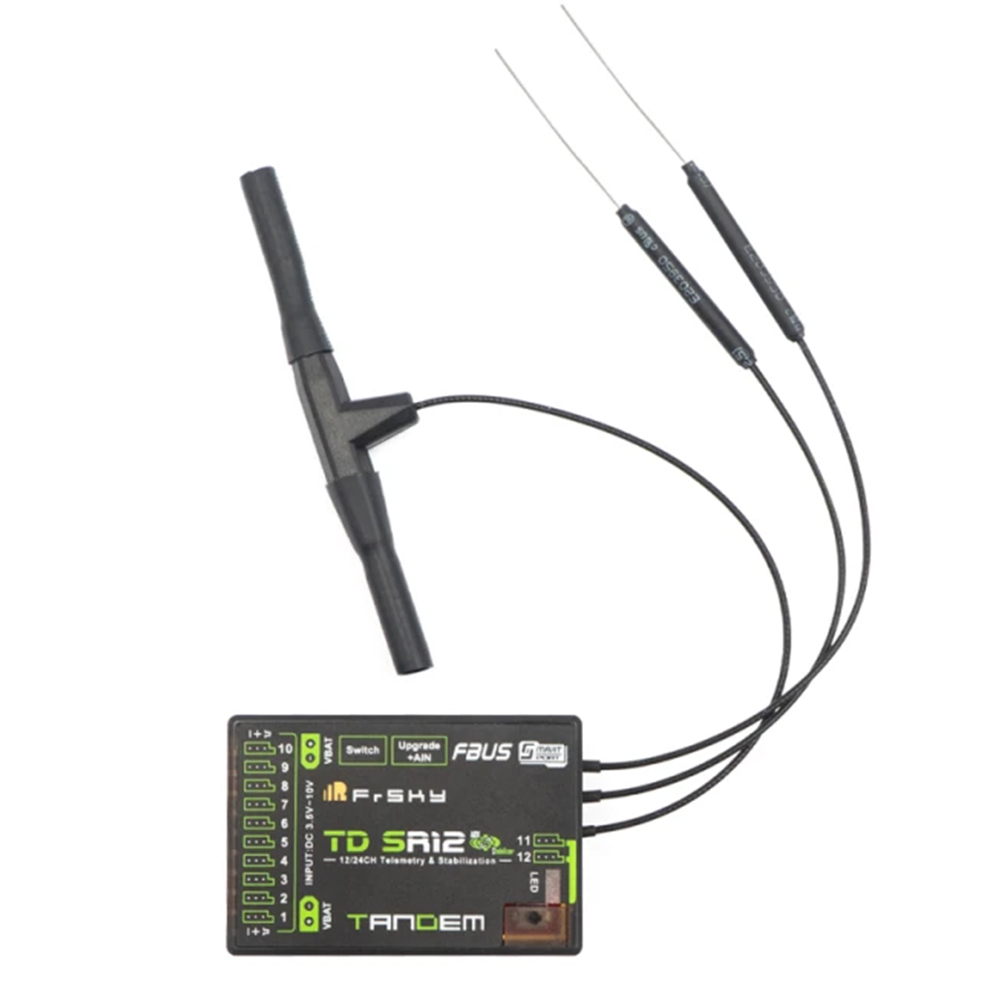

The TD SR12 receiver features a triple antenna design (2x2.4G and 1x900M) that provides broad, multidirectional coverage for the remote signal and is designed for RC users who want to enjoy long-range and robustness in their radio communications.

The TD SR12 also provides a jack that can be used to connect the NFC keypad and enable the built-in power key function. Dual power provides a safe and efficient way to power the system with its power supplies connected via a pair of standard XT30 connectors. The dual power system is designed to operate in balance mode, where it draws power from either power source, depending on the one with the highest voltage. With a built-in black box module, data (related to power and signal) in unusual flight situations can be recorded by TD receivers.

The 12-channel configurable ports are a key feature of the TD SR12; each channel port can be assigned as PWM, SBUS, FBUS, or S.Port. With the FBUS protocol, the Tandem series receivers can open up the possibility of seamless pairing with various telemetry devices (Neuron ESCs, advanced sensors, etc.) and also simplify build configuration.

ADV Stabilizer
The TD SR12 offers an ADV Stabilizer function, which is an upgrade over the original classic gyroscope stabilization modes. The ADV Stabilizer offers an advanced mode that provides more programmable stabilized channels and flexibility.

The classical stabilization mode has been enhanced with 5 additional stabilization channels, providing pin mapping to each channel in the multiple flight modes like Stabilization, Auto-Level, Hover, and Knife-Edge with an airplane model.

In the advanced stabilization mode, all the output pins are configurable for stabilization and additional advanced features such as Stab file sharing, programmable parameters, developer access, etc.

The advanced stabilizer feature incorporates high-precision telemetry sensors to monitor altitude, vertical speed, etc. This ADV feature is an additional benefits compared to using a regular S series stabilization receiver.

Features:

• Dual-Band Simultaneous Working Mode (900M/2.4G) TD;
• Dual Power Balanced Consumption;
• Built-in Advanced Stabilization Functions;
• Built-in High-Precision Telemetry Sensor (Altitude, Vertical Speed, etc.);
• Basic Black Box Data Logging Function;
• Built-in Power Switch Function | Compatible with various external switches (optional);
• 4ms race mode with telemetry;
•  Wide control range (Range varies depending on RF power settings).
• 12 configurable channel ports;

    – CP1: PWM Out / SBUS / FBUS / S.Port / SBUS In (Redundancy function);

    – CP2-12: PWM / SBUS Out / FBUS / S.Port;

• FBUS / S.Port;
• SBUS Out port (supports 16CH / 24CH mode);
• SBUS Port (supports signal redundancy);
• Over-the-Air (OTA) firmware update

Specifications:

• Brand: FrSky
• Model: TD SR12
• Frequency: 900MHz and 2.4GHz

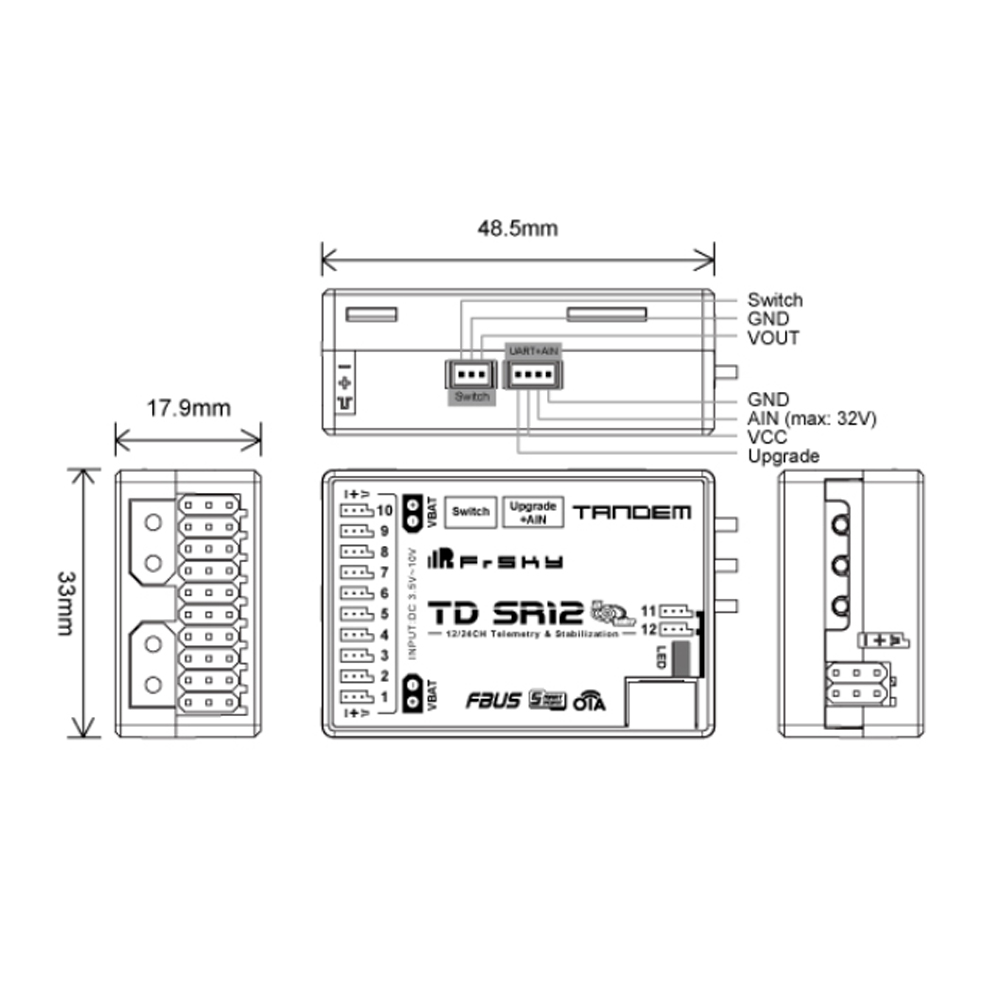

• Dimension: 48.5*33*17.9mm (L*W*H)
• Weight: 23g
• Operating Voltage: 3.5-10V (2S Li-ion batteries recommended)
• Operating Current: ≤170mA
• Continuous Current: ≤20A (power the device) | Instantaneous Current: ≤40A (power
• the device)
• Voltage Measurement Range via AIN (external device): 0-35V (Battery Voltage Divider
• Ratio: 1:10)
• Compatibility: Tandem series RF module and TD protocol
• XT30 Dual Power Input Connector
• Three Antenna Design (2×2.4G & 1×900M)
