S3004 SERVO FUTABA 3.2KG FUTM0004

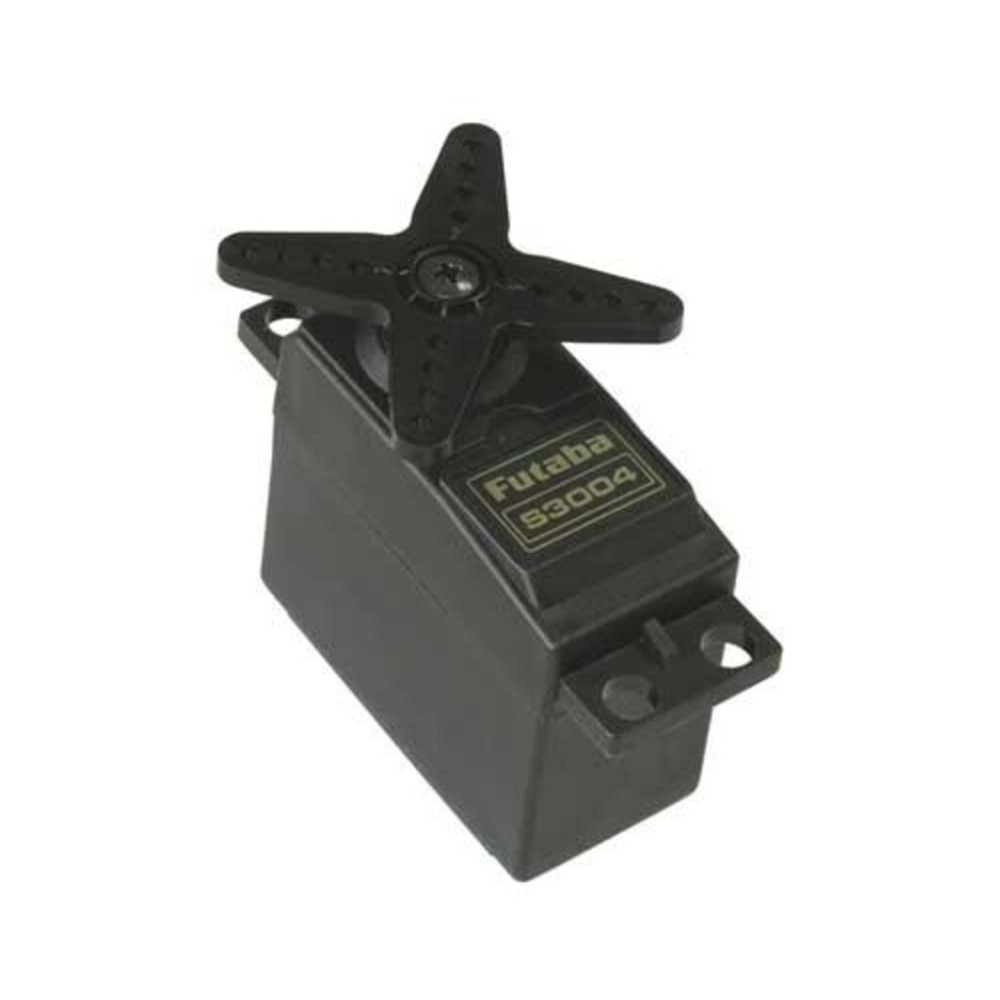

This is the Futaba S3004 Light Weight, Ball Bearing Servo. This basic servo is used in cars, boats, or where standard servos are used. Note: This servo is not designed for use with glow-powered helicopters. This is a replacement for the following servos.(S15)

This servo can produce high-current draw from your batteries. If using NiMH or LiPo batteries, make sure they are capable of delivering sufficient amps.

FEATURES:

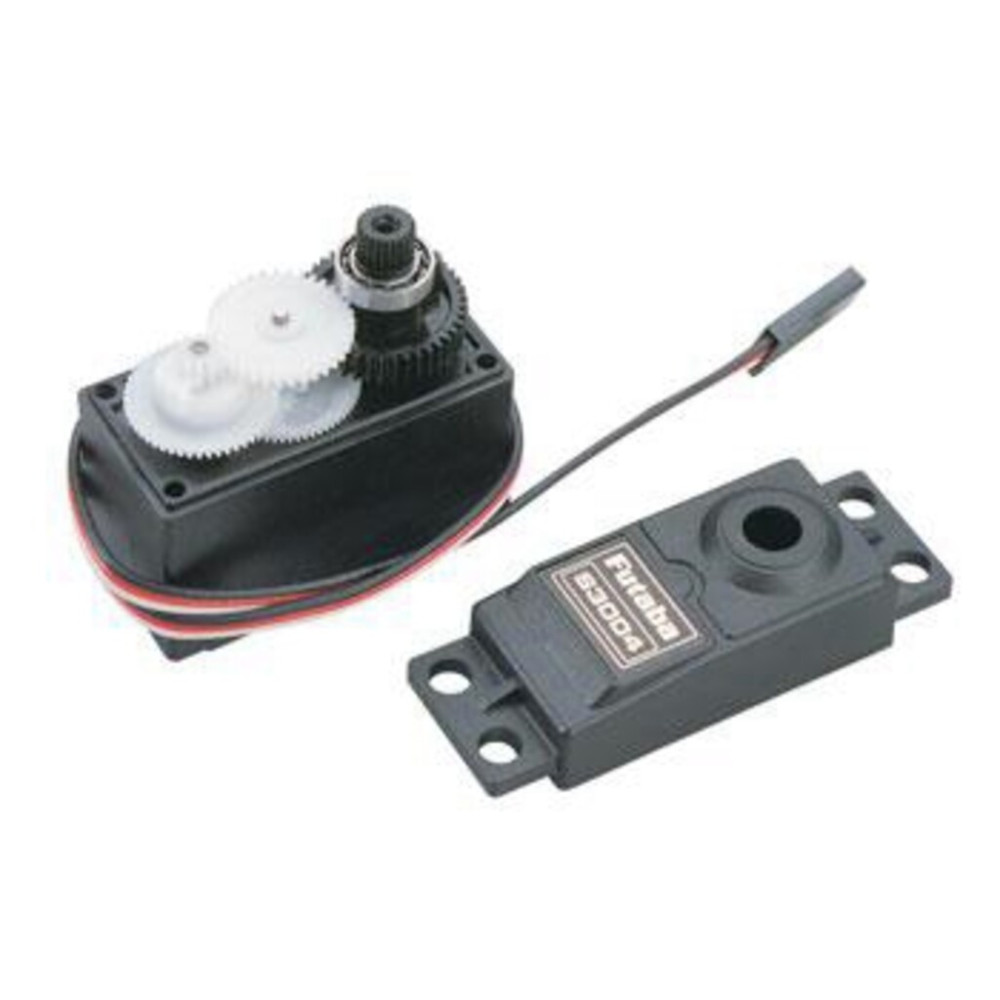

Single ball bearing on output shaft Precise tight fit throughout the geartrain Being standard size and lightweight, it fits many applications. Three pole motor Nylon gears One year warranty

INCLUDES:

One S3004 standard servo with preinstalled round servo horn. Four brass eyelets Four Black one-piece rectangular rubber grommets. Four servo mounting screws Three servo horns (1 lg. round, 1 lg."X" and 1 sm. "x")

SPECS:

Speed: 0.23 sec/60° @ 4.8V 0.19 sec/60° @ 6.0V

Torque: 44 oz-in (3.2 kg-cm) at 4.8V 57 oz-in (4.1 kg-cm) at 6.0V

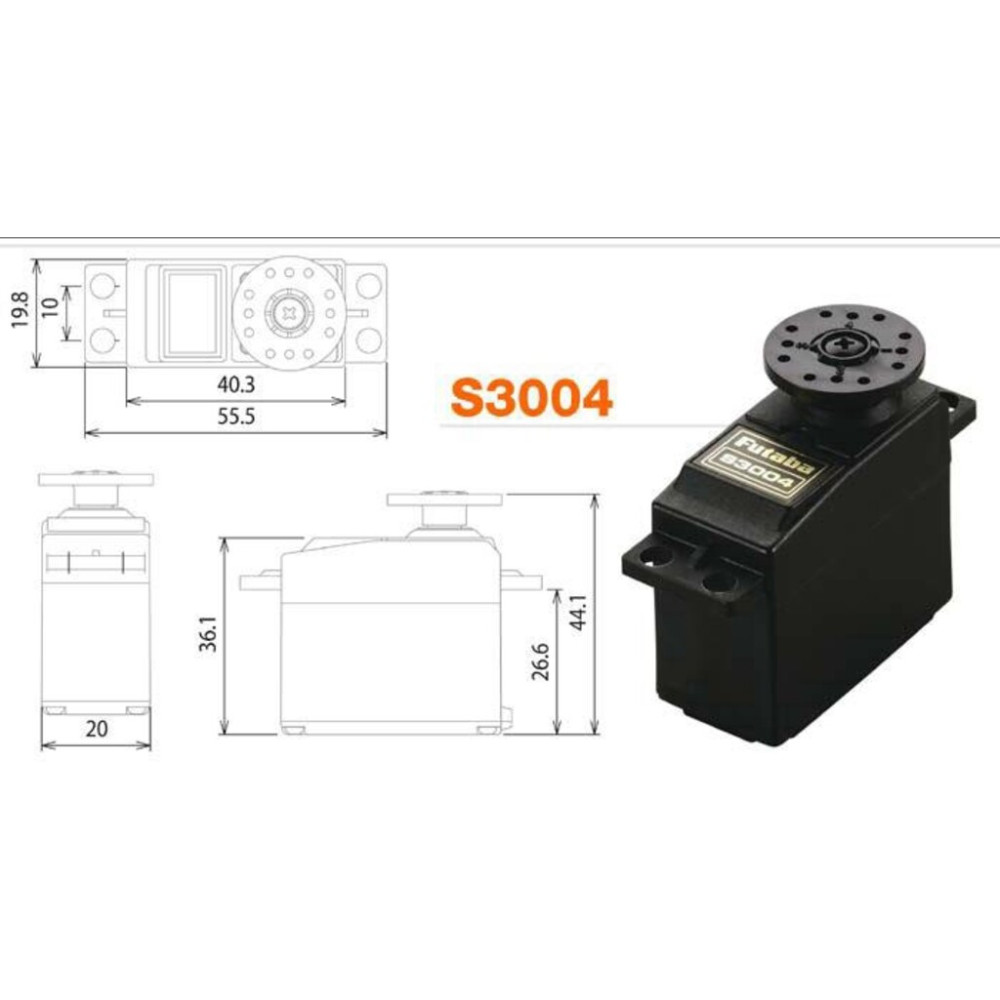

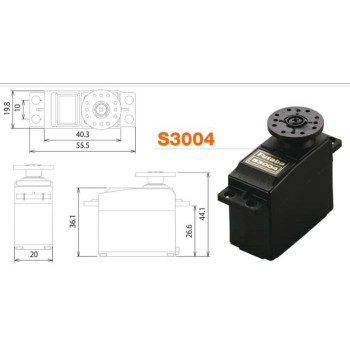

Dimensions: 1.6 x 0.8 x 1.4" (40 x 20 x 36mm)

Weight: 1.3 ounce (37 grams)

Connector: "J" type with approx. 5" wire
