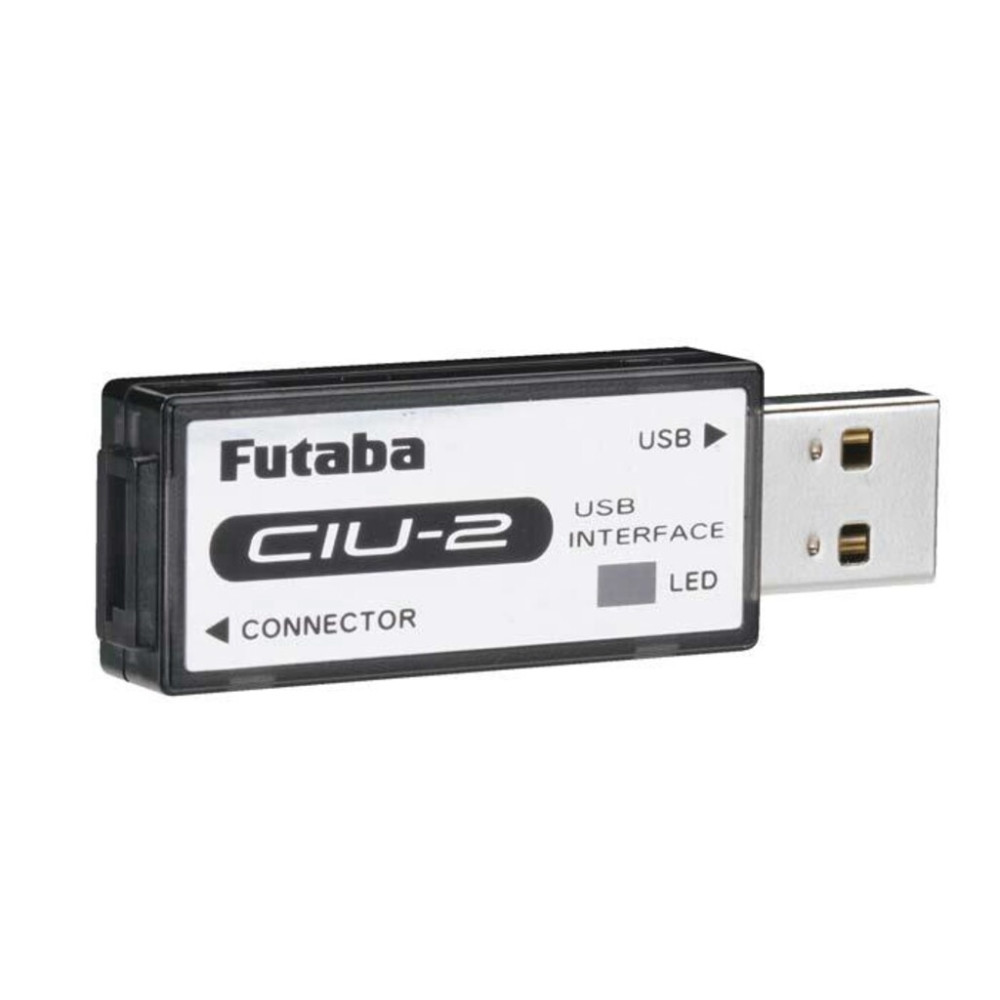

INTERFACE USB GY520 MC850 CIU-2 FUTM0951

FEATURES:

Setting Data Read-reads the program setting data of the connected ESC

Setting Data Write-writes data to the ESC

Default Data Write-writes standard data from the factory

Get Data-reads the program data when connected to ESC

Clear Data- clears data from the ESC

INCLUDES:

PC Interface with interface to ESC extension

REQUIRES:

PC with USB type A port

Software can be downloaded free from www.futaba-rc.com

SPECS:

Interface: USB Rev1.1 compliant

500mm extension included with the CIU-2 to connect to your ESC

USB Connector: USB series A connector

Operating Voltage: 5V ± .2V (USB bus power)

Current Drain: At connection idle; 12.3 ± 2mA

Operating Environment: Temperature -10 ~ 50°C

Dimensions: .72 x 2.22 x .35" (18.2 X 56.5 X 9mm)

Weight: .26oz (7.5g)
