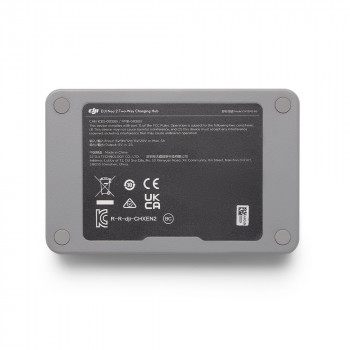

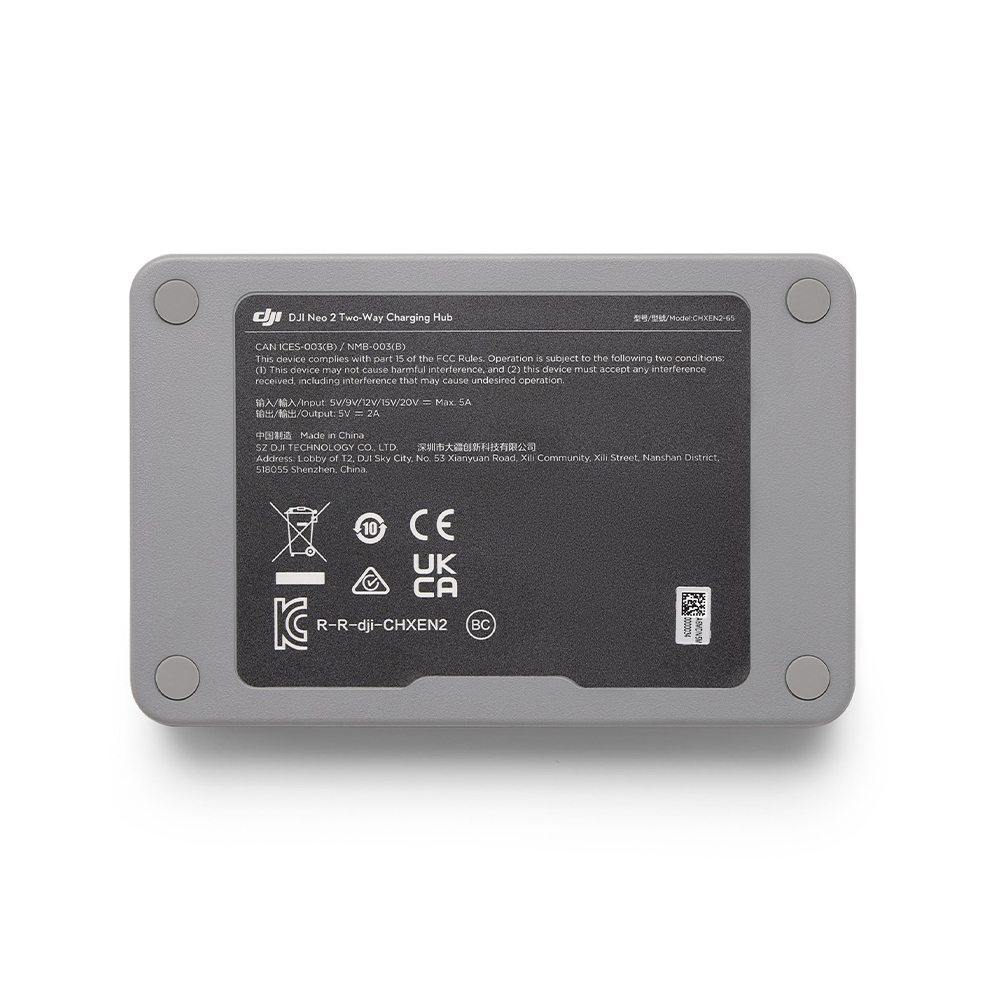

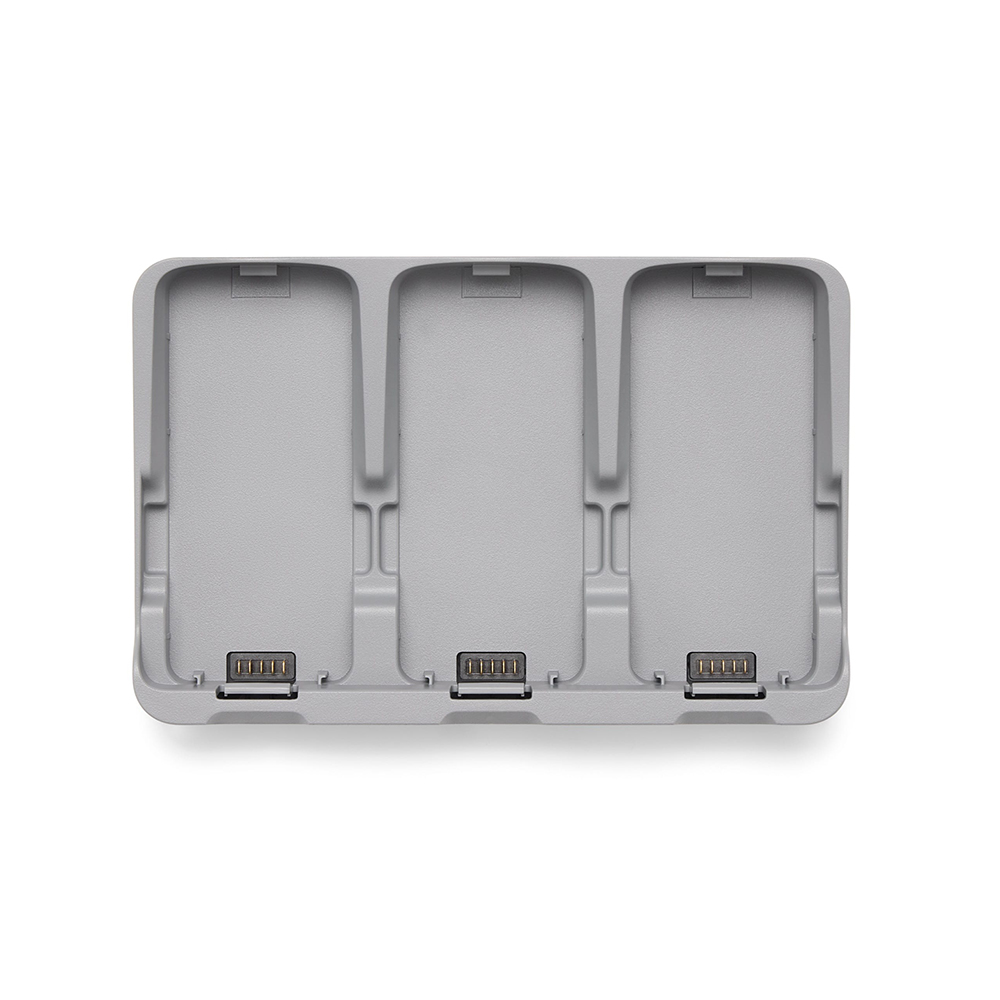

DJI ACC NEO 2 TWO-WAY CHARGING HUB

DJI Neo 2 Two-Way Charging Station

Overview:

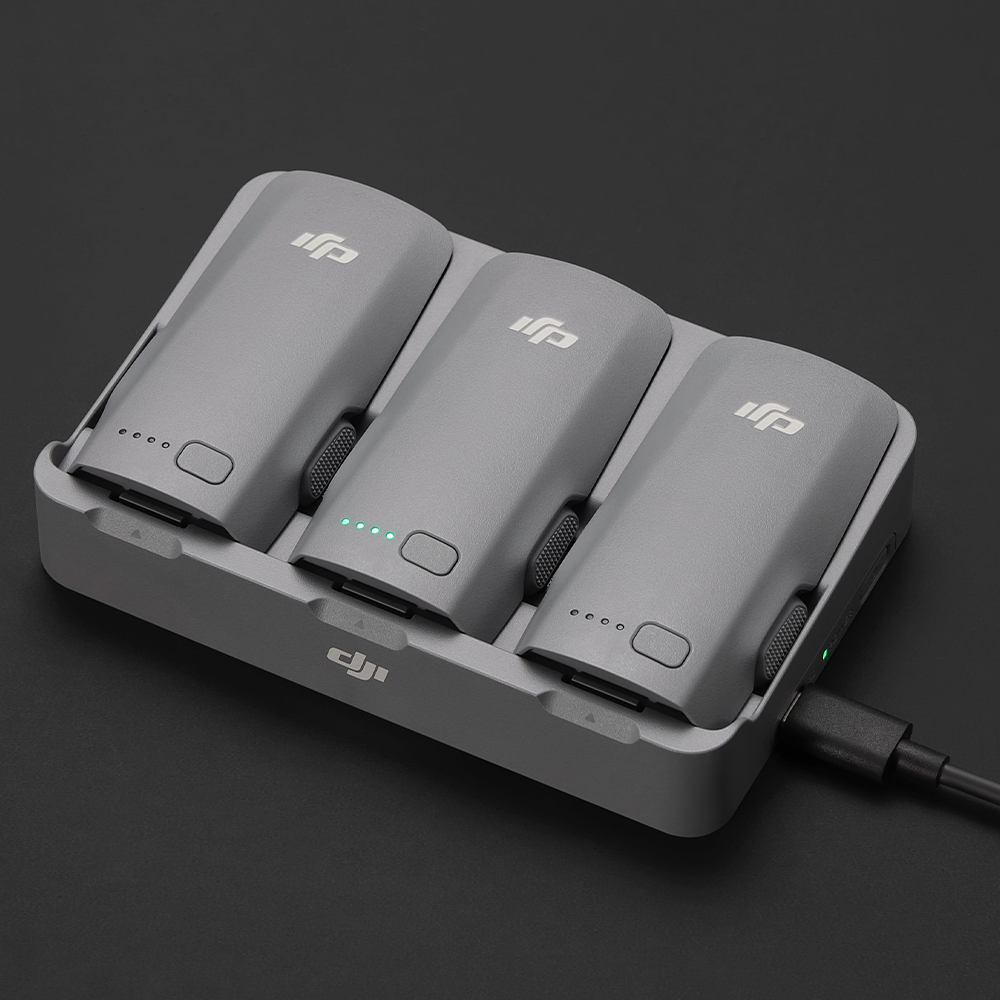

• The station can store and charge batteries. When used with the DJI 65W portable charger, it can simultaneously charge three Intelligent Flight Batteries in just 68 minutes.
• With at least one battery stored, it can serve as an external battery, using the remaining energy to charge devices such as a mixed reality headset or a smartphone.

The number of batteries that can be charged simultaneously depends on the power of the charger used. A charger with a power rating above 45W allows you to charge three batteries simultaneously. A charger with a power rating between 30W and 45W allows you to charge only two batteries simultaneously. A charger with a power rating below 30W allows you to charge the batteries sequentially, starting with the battery with the highest charge level and ending with the one with the lowest. Please refer to the charging protocols supported by your charger.

 Charging time is measured in a test environment at a temperature of 25°C. Actual charging time may increase due to higher ambient temperatures or variations in mains voltage between regions.

In The Box:

• DJI Neo 2 ×1 Bidirectional Charging Station

Specifications:

Entrance :

• 5V, 5A max
• 9V, 5A max
• 12V, 5A max
• 15 V, 4.33 A max
• 20 V, max. 3.25 A
• The maximum current depends on the adapter's capacity.
• Output (load): 5V, 2A
• Charging method: 3 batteries are charged simultaneously when a charger with a power output greater than 45W is used.

Compatibility:

• DJI Neo 2
