SEMI-TRUCK TAMIYA 1/14 RC SCANIA 770 S 4X2 KIT 56379

1/14 SCALE R/C SCANIA 770 S 4x2

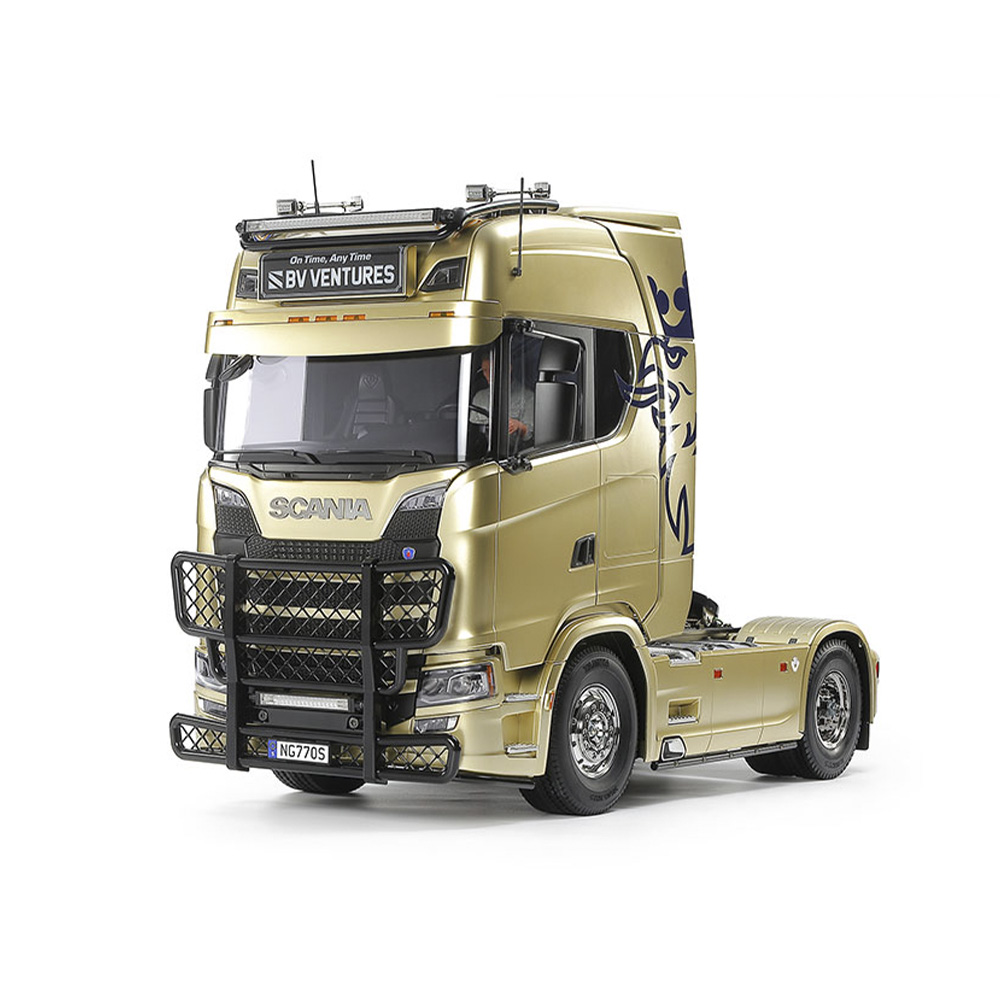

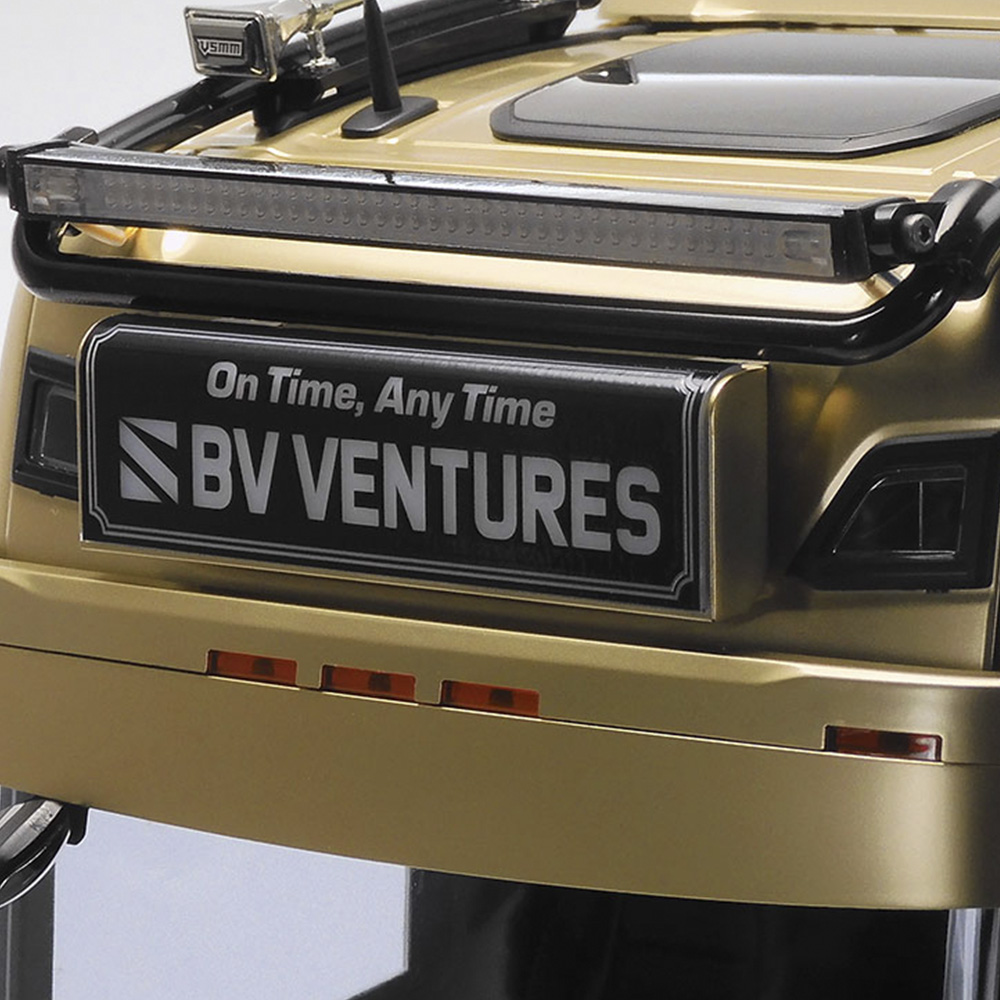

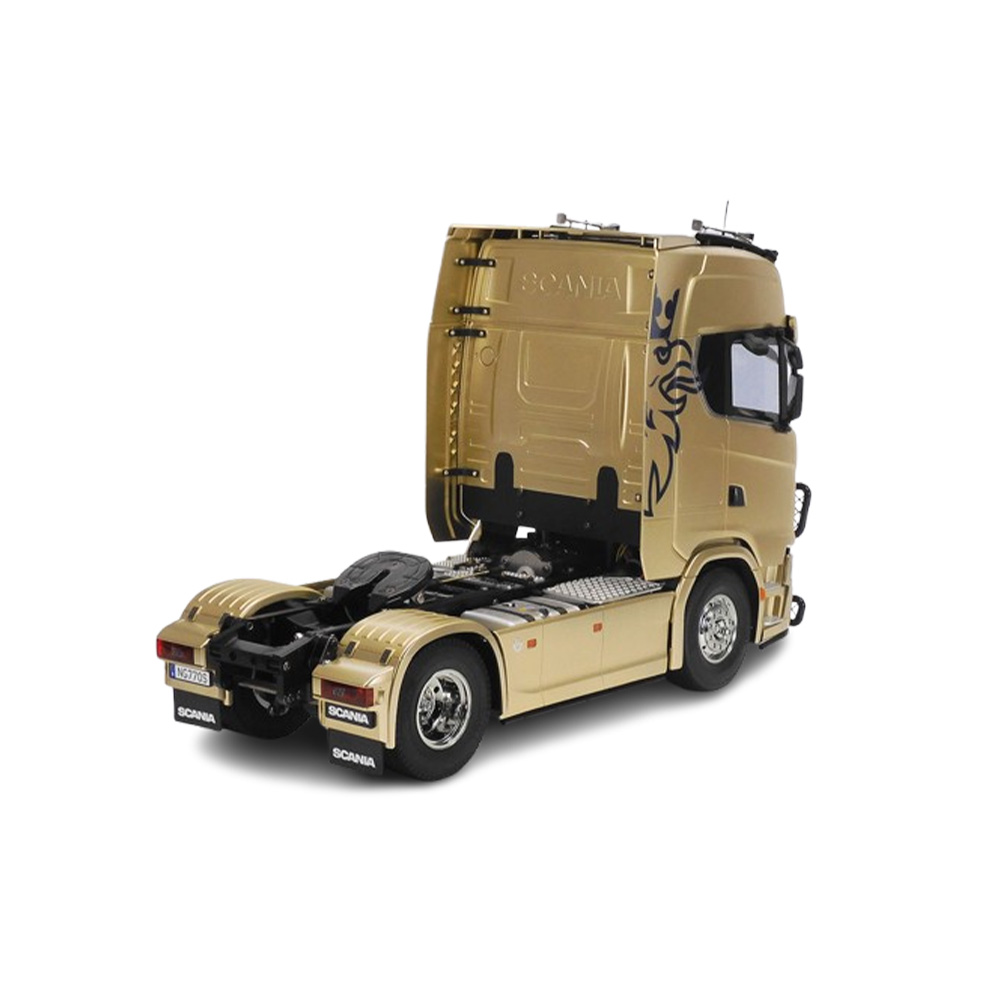

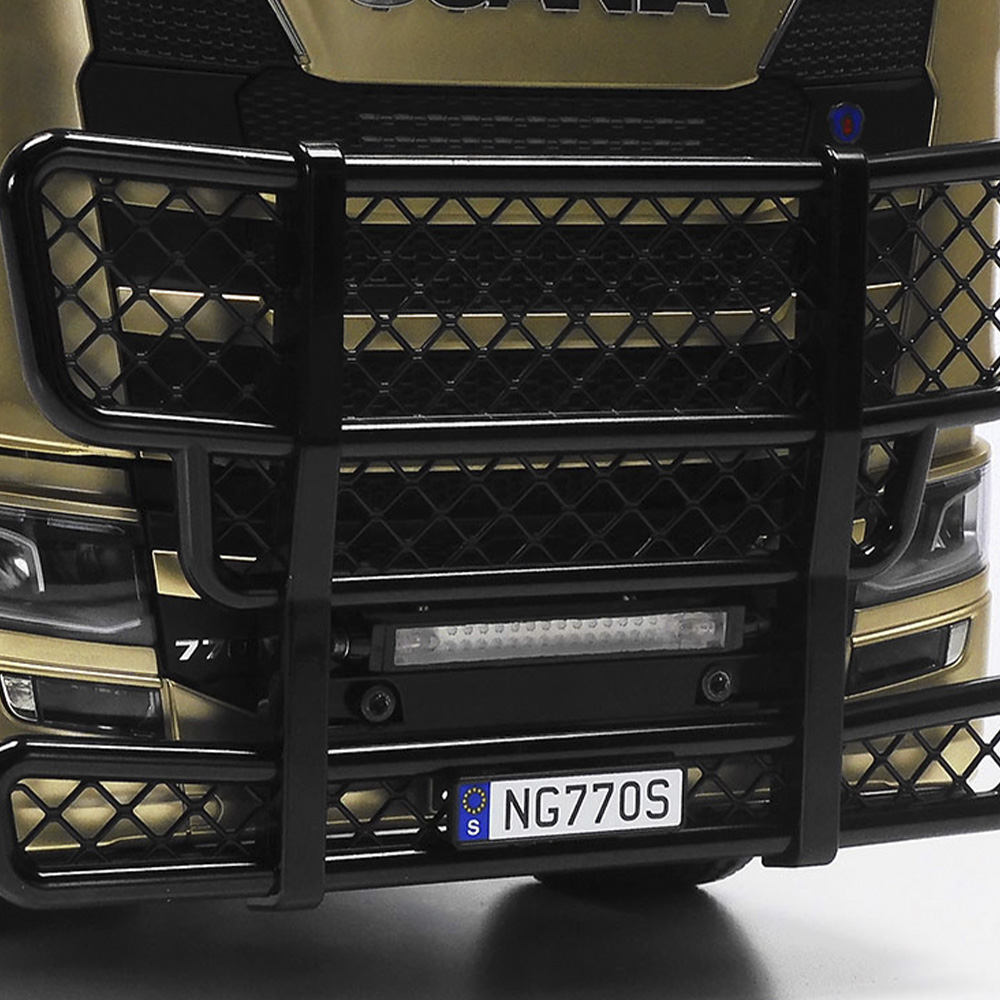

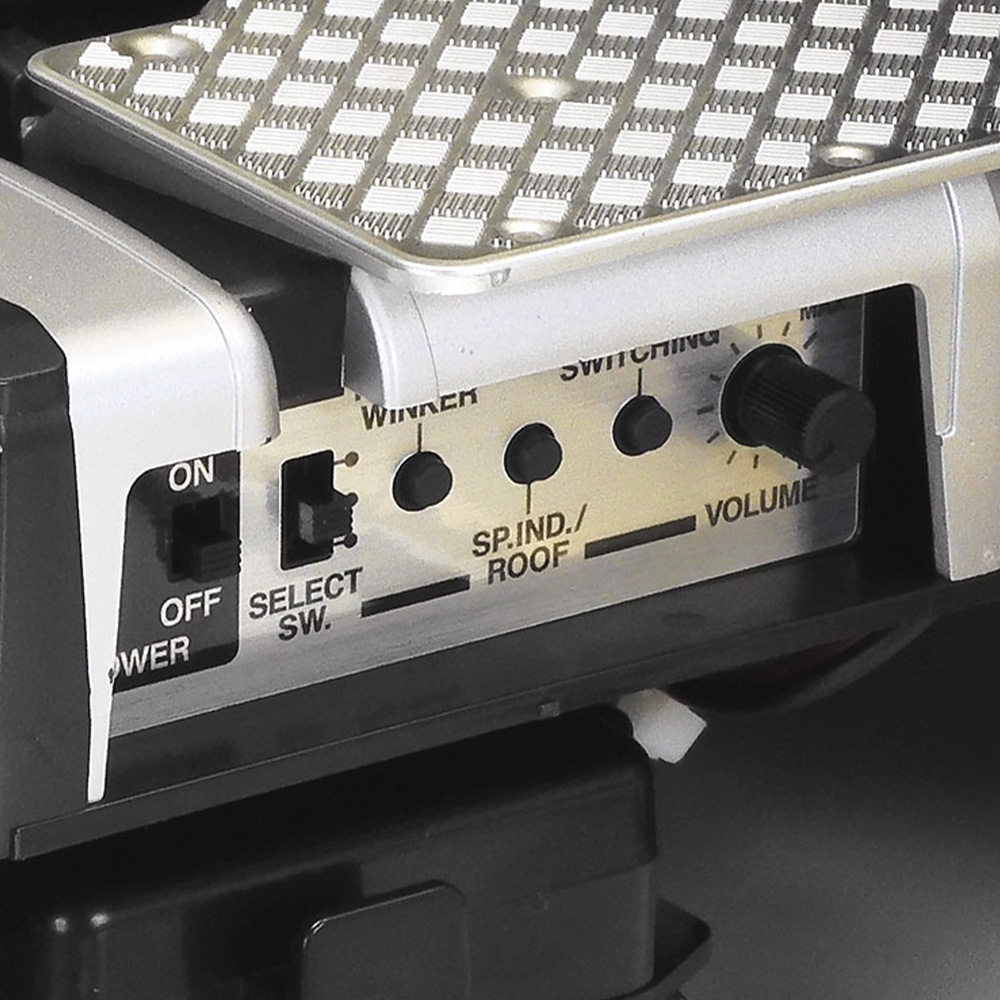

This R/C model assembly kit recreates the Scania 770 S 4x2, a two-axle, high-roof heavy trailer head equipped with a 16.4-liter V8 turbo engine capable of 770hp, added in 2020 to the Swedish manufacturer Scania’s top-grade S Series. The high-roof form is faithfully captured in style with roof high bar and LED light bar, horns, nameboard, drop visor, bullbar, low bar and side bars, letting you create a customized truck like those trendy in Europe. Its ladder frame features aluminum side channels with resin cross members, and power from the front-mounted motor is delivered to the rear axle via a 3-speed transmission and propeller shaft - gear changes are enabled with the use of a separately available 4-channel transmitter. Pair this model with a separately sold Multi-Function Control unit for coordinated lights, sounds and more!

Specifications:

• Length: 469mm
• Width: 193mm
• Height (without side mirrors and antenna): 315mm
• Weight: approx. 3.5kg
• Wheelbase: 272mm
• Tread: 155mm (front), 138mm (rear, double tire)
• Chassis: aluminum & polycarbonate resin ladder frame

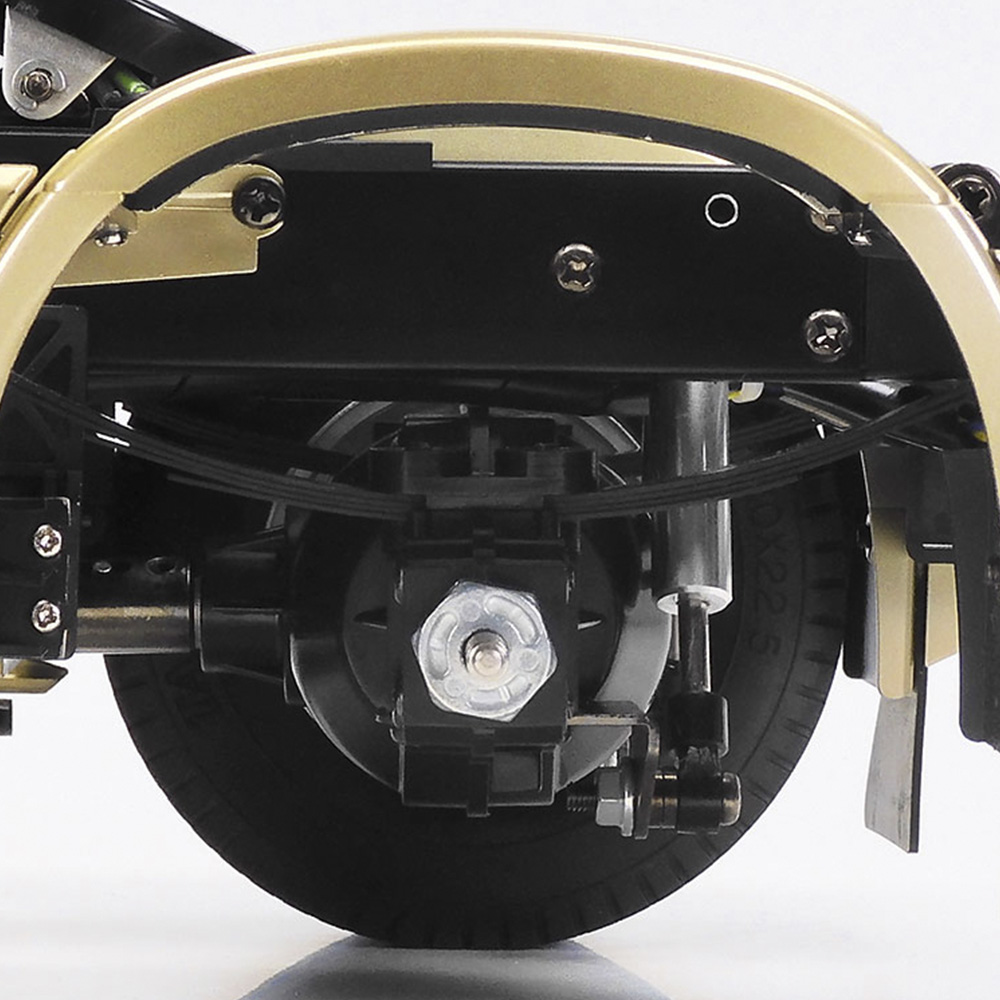

• Suspension: front/rear leaf spring rigid
• Caster angle (front & rear): 0°
• Camber angle (front & rear): 0°
• Toe angle (front & rear): 0°
• Aluminum dummy dampers (front/rear)

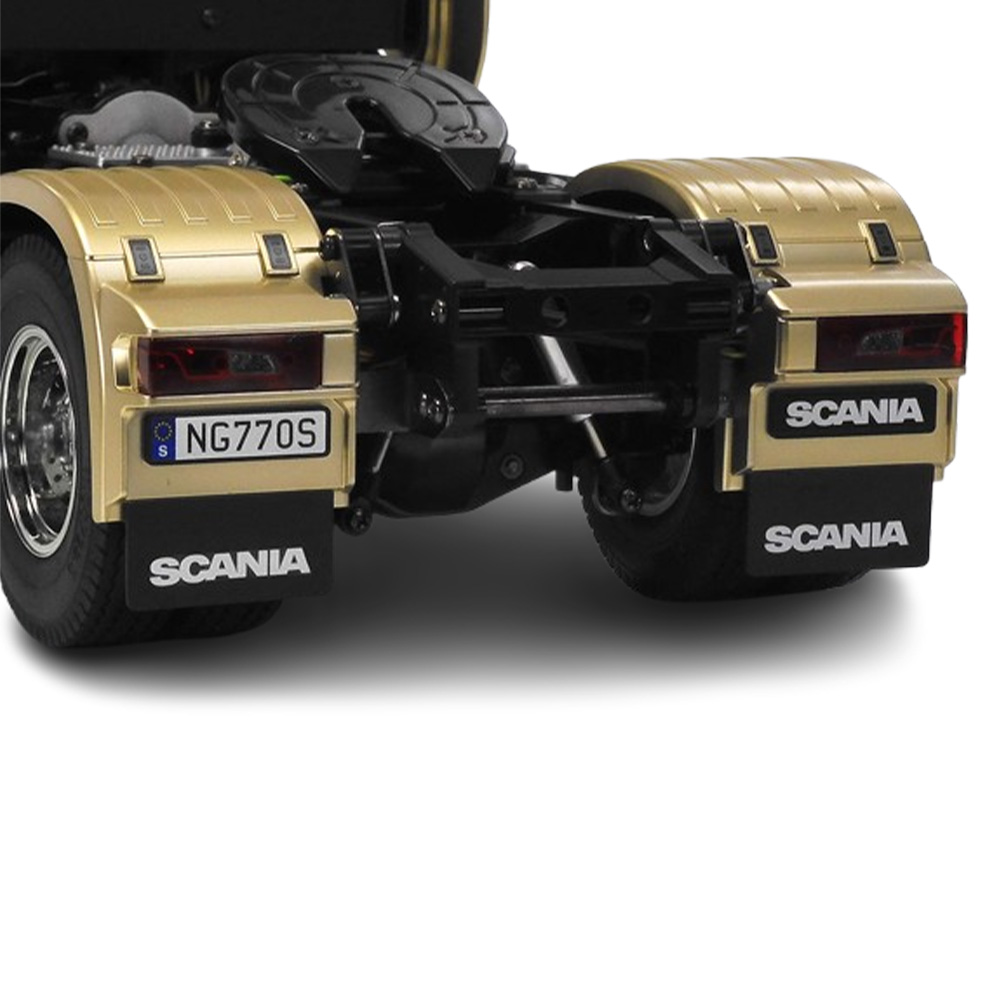

• Rear axle drive
• 3-gear transmission (gear shifts via transmitter)
• Gear ratio = (1st gear) 32.49:1, (2nd gear) 17.66:1, (3rd gear) 10.66:1
• 3-bevel differential gear
• Type 540 motor
• Tire width/diameter: 30mm/85mm (front); 22mm/84mm (rear)
• TR Mighty-Tuned Motor (35T)
• Tire width/diameter: 30mm/85mm (front), 22mm/83mm (rear)

Features:

• Metal And Plastic Bushings
• 3-Speed Transmission
• Aluminum And ABS Plastic Chassis
• Includes 540-Size Motor
• Optional Parts Available

In The Box:

• (1) 1/14 Scania 770S 4x2 Tractor Truck Kit
• (1) 540-Size Electric Motor

 Needed to Complete:

• (1) Tamiya 4-channel Attack Radio
• (2) Standard-Size Steering Servo
• (1) Electronic Speed Control
• (1) 7.2V Battery
• (1) Battery Charger
