AVIAO PHOENIX KATANA EP ARF PMMA0355

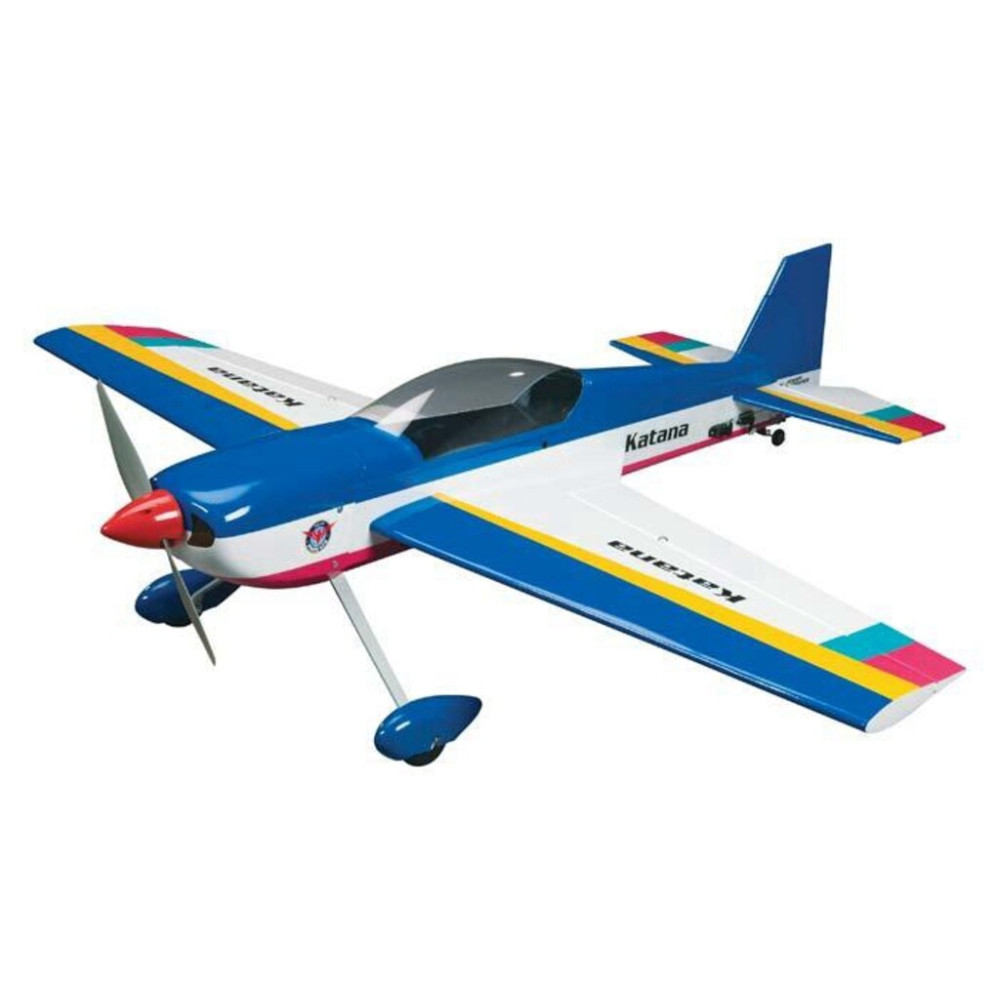

This is the radio controlled, electric powered, almost-ready-to-fly Phoenix Models Katana Scale Aerobatic Airplane.

Recommended for Intermediate Pilots.

FEATURES:

• Construction: Built-up balsa and plywood, prebuilt plywood motor mount
• Covering: Pre-applied, color scheme is white, pink and blue with yellow and blue
• Wings: Two-piece wood with aluminum joiner tube
• Radio Compartment: Plywood reinforced
• Cowling: Painted fiberglass
• Canopy: Clear
• Wheel Pants: Painted fiberglass
• Landing gear: Pre-bent 0.14" (3.5mm) aluminum with 2-1/2" (63mm) treaded rubber main wheels and one 1" (25mm) rubber tail wheel with pre-bent 0.078" (2mm) thick wire
• Spinner: 2.25" (57mm) red plastic
• Building Time: Ready to fly in 6-8 hours
• Aileron Control: Dual servo
• Hardware: Hinges, wing bolts and all other required fasteners included

INCLUDES:

• Prebuilt and pre-covered wings fuselage and tail section
• aluminum main landing gear
• tailwheel wire
• prebuilt plywood motor mount
• main and tail wheels
• pre-bent pushrods
• hardware package
• fiberglass cowling and wheel pants
• clear canopy
• decals
• photo-illustrated instructions

REQUIRES:

• Motor: Brushless outrunner such as the Great Planes ElectriFly RimFire .32 42-50-800
• ESC: 45A
• Battery: 3350mAh 4S LiPo
• Battery charger and balancer
• Radio: Four channel
• Servos: Five mini (2-ailerons, 2-elevator, 1-rudder)
• Servo Extension: One 6" (152mm) for ailerons
• Y-Harness: One for aileron servos
• Propeller: 12x6E
• Misc. Items: Foam rubber padding, building and field equipment

SPECS:

• Wingspan: 49.6" (1260mm)
• Flying Weight: 56.4 - 77.6oz (1600 -  2200g)
• Wing Area: 598 sq in (38.6 sq dm)
• Wing Loading: 19 oz/sq ft (58 g/sq dm)
• Length: 49.7" (1262mm)
• Airfoil: Symmetrical
• Center of Gravity: 3.5" (90mm) Back from the wing's leading edge at the fuselage sides.
• Control Throws-
• Ailerons: Up & Down   0.79" (20mm)
• Elevator: Up & Down   0.79" (20mm)
• Rudder: Right & Left  2.0" (50mm)
