MOTOR OS FS-155-A C/BOMBA 4TEMP 35430
- Código: 69373
- Marca: O.S. ENGINES
- Estoque: Disponível
-
$499,00
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Linha de Brinquedos testados não possui Garantia.
Produtos em Promoção e Abaixo do Custo não possuem Troca nem Devolução.

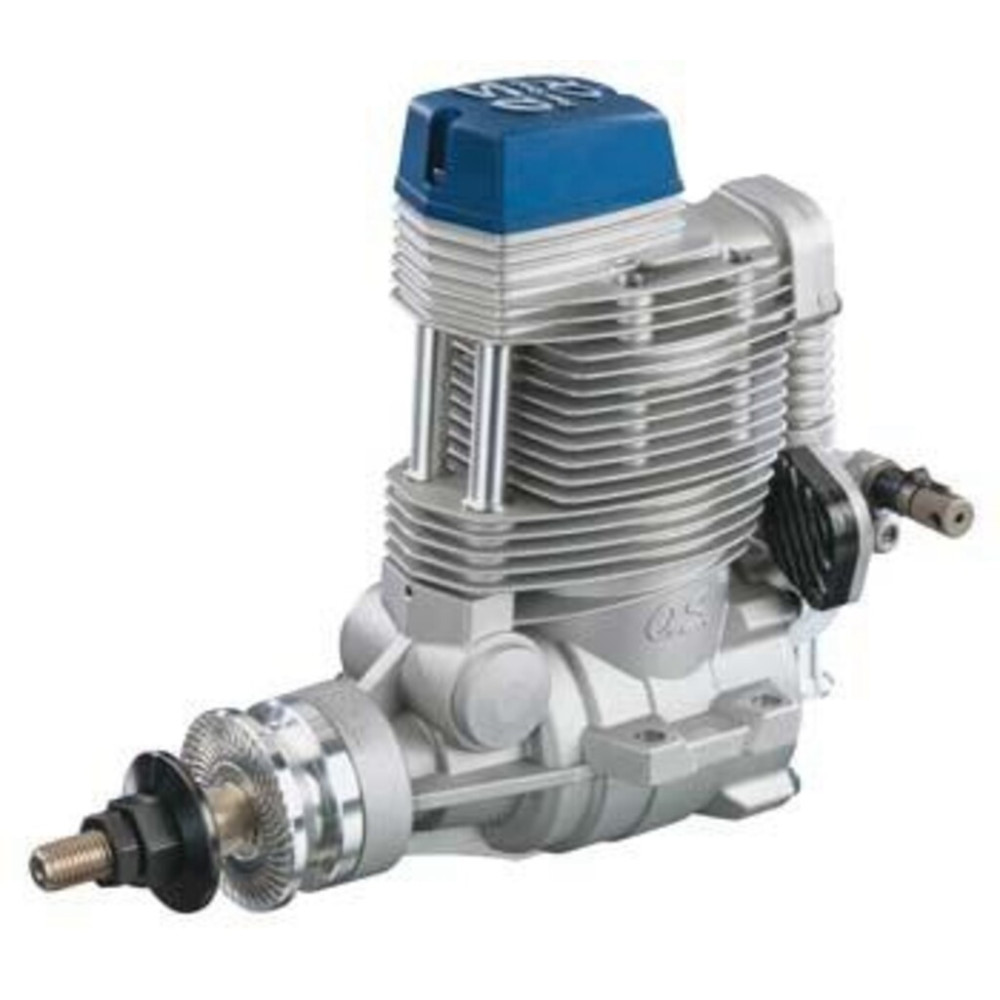

This is the FS155-a P Four Cycle Engine with Pump System from O.S. Engines.
Includes:
- FS155-a P Four Cycle Engine with PD-08 Pump System
- 70R Carburetor
- F-6020 Muffler, Header Pipe, type F Glow Plug, Needle Valve
- Extension Cable
- Instruction Manual
Requires:
- Fuel: Glow fuel with 5-20% nitro content and no less than 18%
- lubricant content
- Propeller: 16x8-12 or 17x8-12
- Glow Starter
- Field equipment
Specifications:
- Displacement: 1.548 cu in (25.36cc)
- Bore: 1.323" (33.6mm)
- Stroke: 1.126" (28.6mm)
- Practical RPM: 2,000 - 10,000 RPM
- Power Output: 2.6 PS, 2.56 HP @ 10,000 RPM
- Engine Weight: 28.40 oz (805g)
- Muffler Weight: 3.35oz (95g)
- Carburetor Settings-
- Needle Valve: 2-1/2 - 3 turns from fully closed
- Mixture Control Valve: Factory set, make only small adjustments if
needed, after adjusting needle valve as described in manual, turn30° to lean idle mixture or 90° counterclockwise to richen mixture
then back again 45° clockwis. - Width at Mounting Tabs: 2.6" 67mm)
- Crankcase Width below Mounting Tabs: 1.8" (47mm)
- Length from Drive Washer to rear of Carburetor: 5" (127.5mm)
- Height from Mounting Tab to Pushrod Cover: 4.5" (114mm)
- Height from bottom of Crankcase to Pushrod Cover: 5.4" (138.6mm)
- Distance between Mounting Hole Centers Same Side: 0.98" (25mm)
- Distance between Mounting Hole Centers Opposite Side: 2.3" (58mm)
- Distance/front Mounting Hole Center to Drive Washer: 2.5" (64.5mm)
- Distance/ Center of Engine to Drive Washer: 3.03" (77mm)
- Crankshaft Size: 5/16-24
