MOTOR OS FT300 2 CYLINDER TWIN 36210
- Código: 71956
- Marca: O.S. ENGINES
- Estoque: Indisponível
-
$1.050,00
Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.
Linha de Brinquedos testados não possui Garantia.
Produtos em Promoção e Abaixo do Custo não possuem Troca nem Devolução.

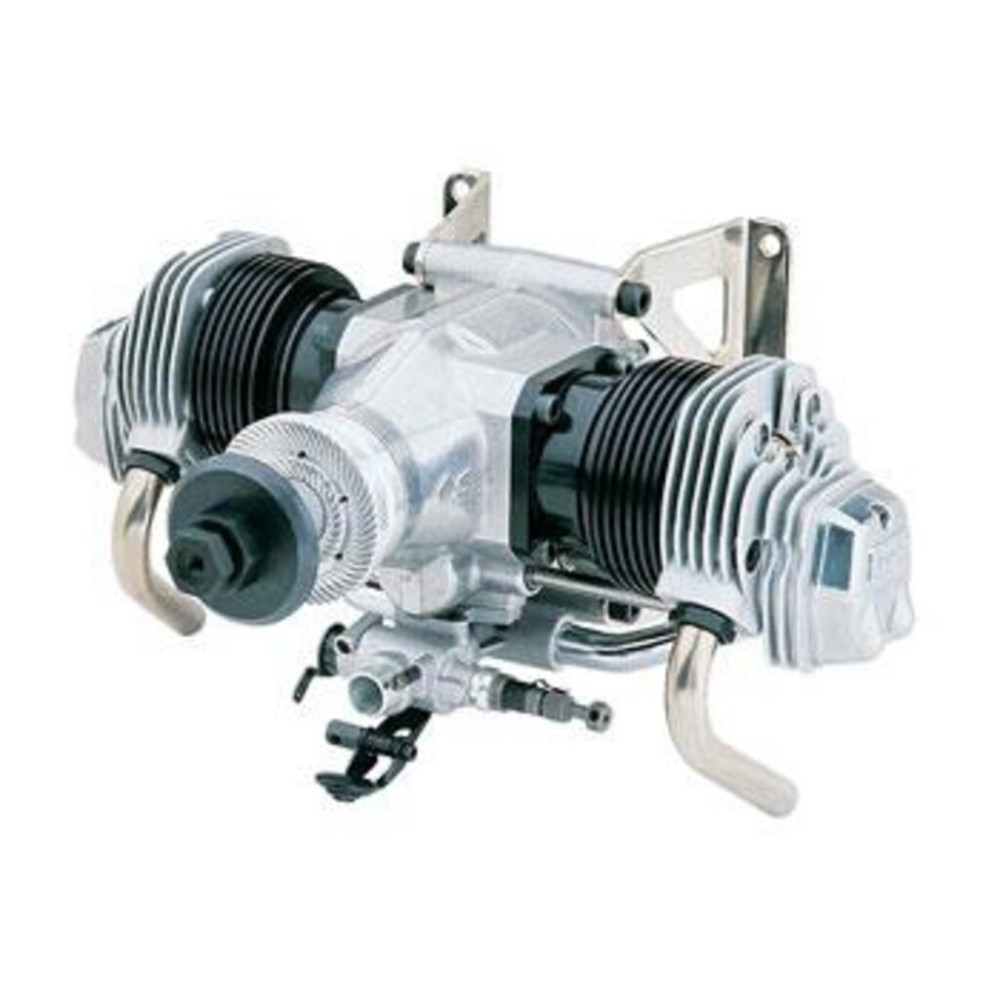

This is a FT-300 Twin-Cylinder 4-Stroke Engine from O.S. Max.
This Engine is a Flat (Opposed) Twin-Cylinder Engine, called the Gemini-300".
It is Scale-Like in Appearance when Installed in a Piper Cub or Citabria.
Features:
- 3-Crankshaft Ball Bearings
- 2-Camshaft Ball Bearings
- Twin Opposed Cylinders
- Ringed Piston
- Geared Camshaft (geared timing)
- Two-year warranty
Includes:
- One Assembled FT-300 Twin 4-Stroke Engine
- One Instruction Manual w/Decals, Poster
- One Dual Glow Plug Extension Cable
- One Locking Prop Nut Assembly (installed)
- One Motor Mount (OSMG2808) (installed)
- Two #F Glow Plugs (installed)
- One Mounting Hardware Bag
- One Valve Adjustment Tool Set (OSMG6334)
- One Choke Valve Extension (Rod)
Technical Specifications:
- Construction: Aluminum and Aluminum alloys
- Displacement: 24.38cc (x2) or 1.49 cu in (x2)
- Bore: 33.6mm (1.32")
- Stroke: 27.5mm (1.08")
- Power Output: 4.0 BHP at 7,000 RPM
- Weight: 1828g (64.5oz)
- Practical RPM Range: 1,800 - 9,000 RPM
- Crankshaft Threading: 3/8-24
- Length: 148mm (5.83") from firewall to front of drive washer
- Width: 240mm (9.45")
- Height: 90mm (3.54")
- Suggested Props: 18x10,18x11,18x12,18x13,18x4,20x8,20x9,20x10,
- 20x11, 22x8
- Needle Settings: High Speed: 1.5 turns out from fully closed
- Mixture Control (low speed): 2 turns out from fully closed
