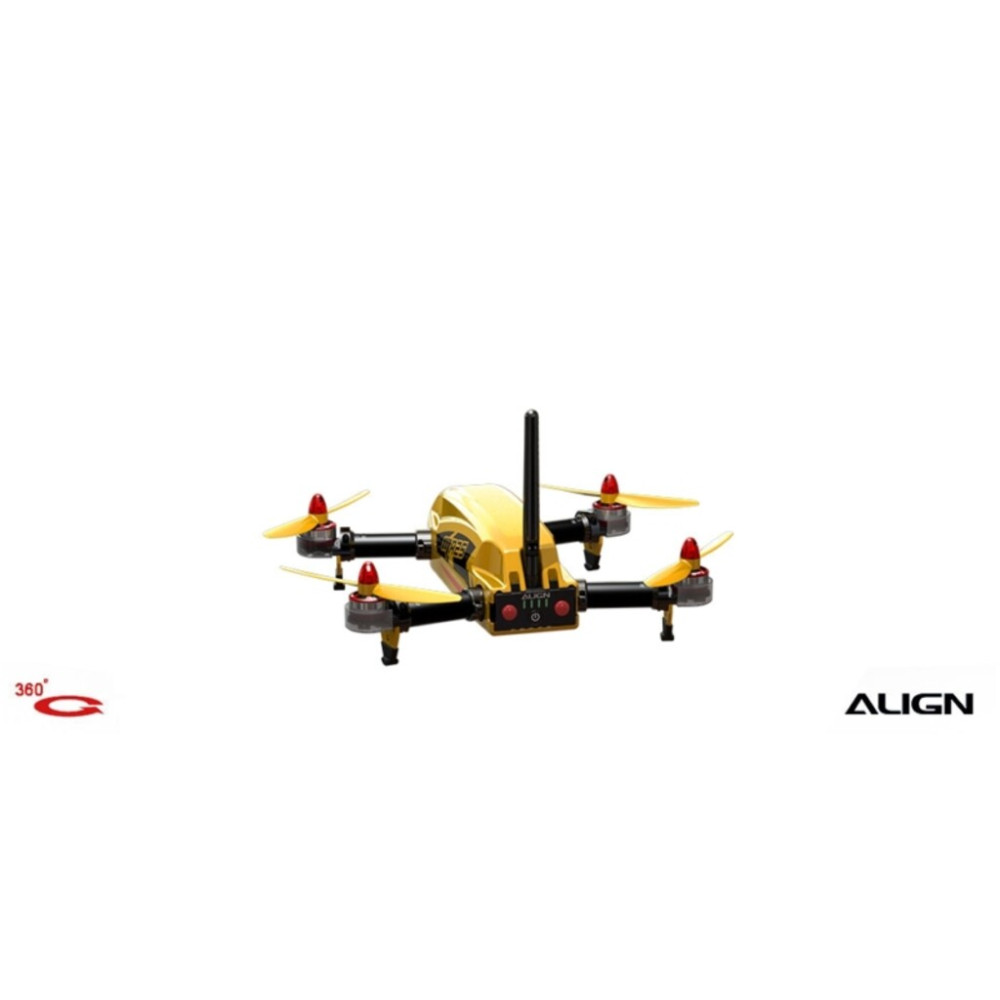

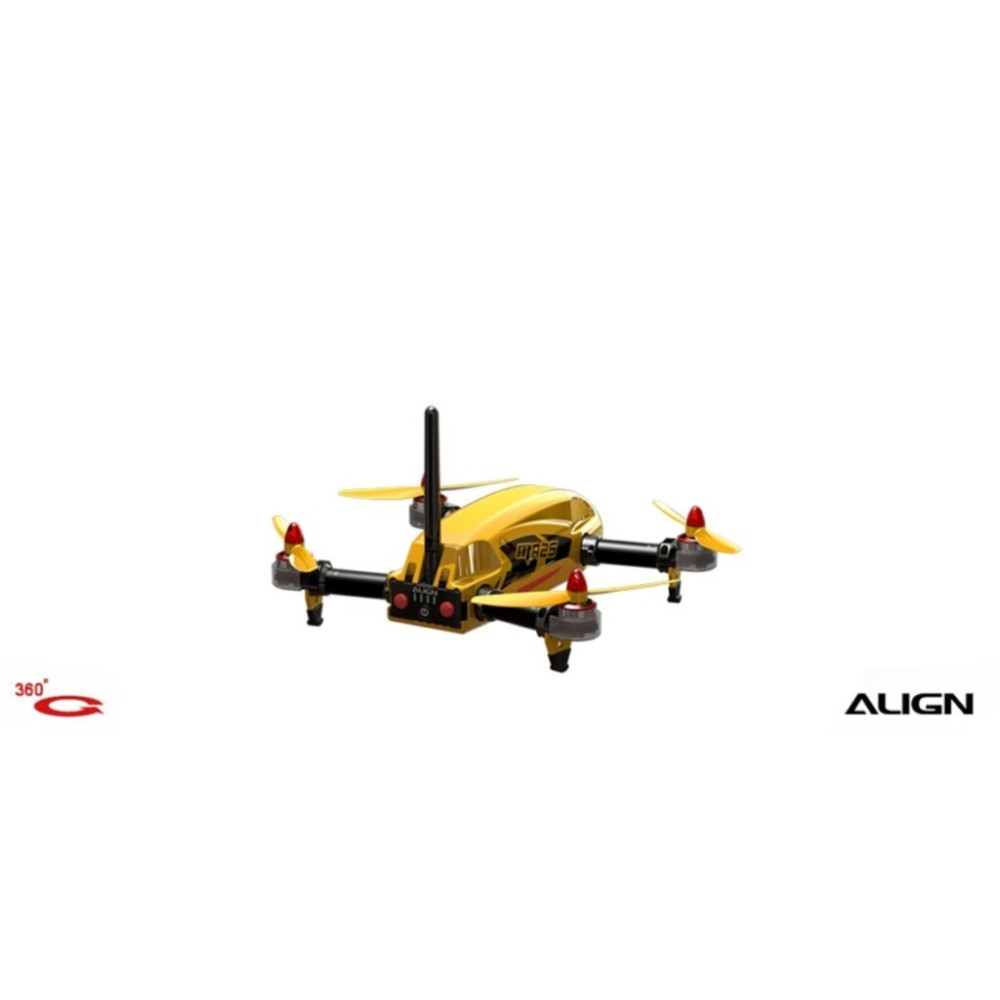

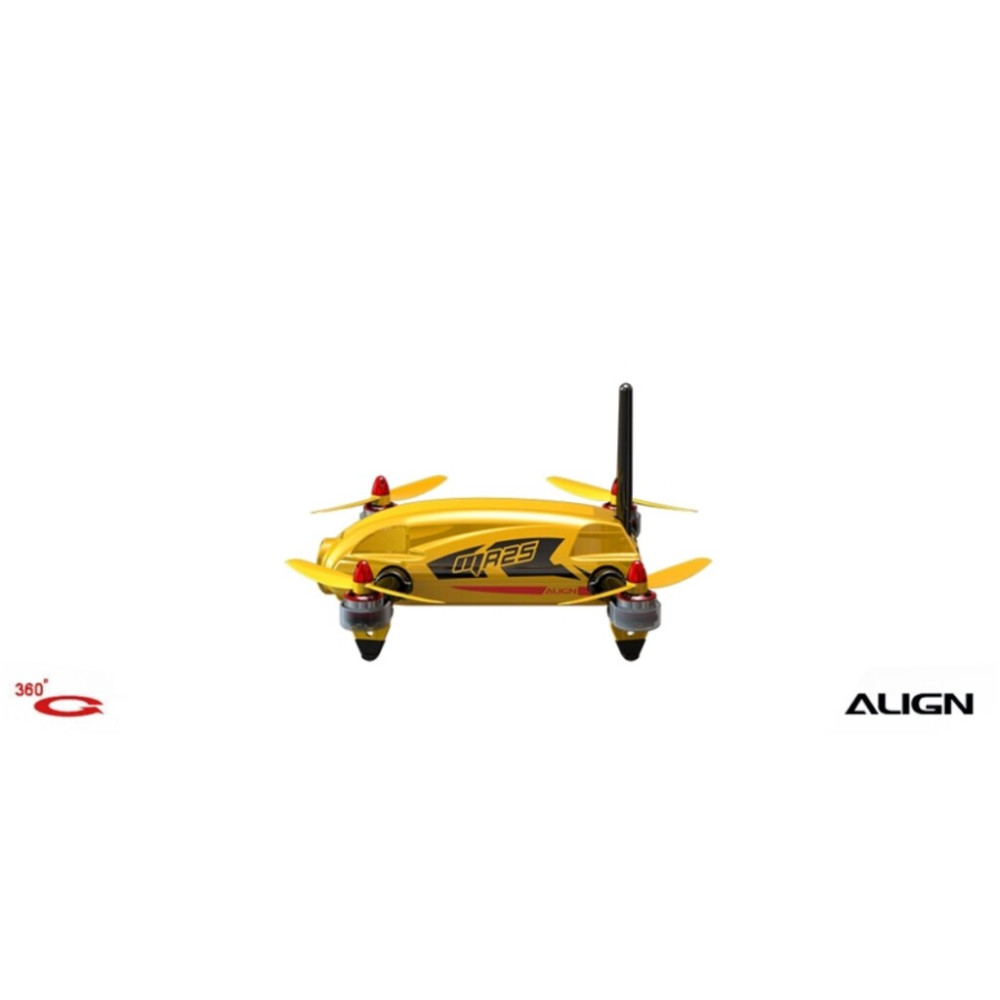

T-REX MR25 QUADCOPTER RACING RM42507XET

  • Código: 218450
  • Marca: ALIGN
  • Estoque: Disponível
  • $99,99

Compartilhar

Não fazemos entregas fora do paraguai
Preços informados são em Dólares americanos, não incluem IVA e podem variar sem prévio aviso.



A flight controller born from the intrgration of cutting edge electronics and innovative information technology. Utilizes a 32 bits high speed processor, combining ESC, power distribution systen, OSD, Bluetooth connectivity, and gimbal control function. Featuring high precision 6-axis gyroscopic sensor and barometric sensor. Drived from Align's auto pilot core technology, the highly intelligent attitude calculation subroutine results in a highly stable and reliable performance.



Setup and flight parameter tuning can be done through apps running on iOS/Android smart phone or tablets. In addition, the app can be used to control DV camera and video recordings. Bluetooth 4.0 compatibility featuring low power long distance high speed transmission.



High intensity LEDs at bottom, motor mounts, and back plate. With RGB colors customizable through smartphone app.



Single axis camera gimbal to provide camera tilting angle compensation during high speed flights, keeping camera image level with horizon. Tilting angle is also manually adjustable.
High Definition DV Video Recorder(1080P 30fps).



Live Flight data display including flight time, mode, attitude, voltage, capacity, current, camera mode, recording mode, and low voltage warning.



FPV through MR25 onboard DVR camera and 5.8GHz Video Transmitter, broadcast live with zero latency to LCD screen or FPV goggles.



Aerodynamically efficient outer shell made with light weight impact resistant ABS plastic alloy material. Provides extra protection while increasing flight visibility. Multiple color scheme available for customization.



Brand new Align BL1806-2300kv multirotor race motor, based on Align's legendary motor core technology, featuring high torque, high speed, high efficiency, low power consumption, and low temperature. Normal Flight time approximately 9 minutes with 3s-1300mah battery.



Adjustable Motor Tilting Angle with maximum +/- 30 degrees angle offering flexibility to compensate for camera angle, or improve speed and stability, giving you the optimal edge at starting line.



Bateria não incluida

Manages signal and power distribution. With single battery, power is distributed to flight control, motors, DVR, 5.8Ghz video downlink, gimbal, multifunction panel. Has a master power switch to make powering up simple, and a battery meter to display current battery capacity. The multifunction panel has unique brake and turn signals for the added realism during FPV racing.



SPECIFICATION

AIRFRAME DIAMETER
250mm
AIRFRAME HEIGHT(EXCLUDING ANTENNA)
78mm
PROPELLER DIAMETER
5 inches(127mm)/6 inches(152mm)
AUW(EXCLUDES BATTERY)
Approx.410g

MRS FLIGHT CONTROL

INPUT VOLTAGE
10V ~ 16.8V
OPERATING FREQUENCY
800HZ
OPERATING TEMPERATURE
-20°C ~ 65°C (-4°F ~ 149°F)
MAXIMUM ANGULAR SPEED
Aileron/Elevator 400°/sec, Rudder 45°/sec
MAXIMUM TILTING ANGLE
80 degrees
SUPPORTS MULTICOPTER CONFIGURATIONS
MR25, MR25P

MULTICOPTER BRUSHLESS ESC

INPUT VOLTAGE
11.1V~14.8V
(3S~4S Li-Po)
MAX CONTINUOUS CURRENT
15A
OPERATING TEMPERATURE
-5°C ~ 45°C (23°F ~ 113°F)

RCM-BL1806 BRUSHLESS MOTOR
2300KV(RPM/V)

INPUT VOLTAGE
11.1V
MAX CONTINUOUS CURRENT(3 MIN)
12A
MAX CONTINUOUS POWER(3 MIN)
135W
STATOR ARMS
12
MAGNET POLES
14
DIMESION/WEIGHT
Φ5xΦ23x25.6mm / 18.5g

5.8GHZ VIDEO TRANSMITTER

INPUT VOLTAGE
7 ~ 19V DC
OPERATING CURRENT
600mA 12V
OPERATING FREQUENCY
5.8GHz
OPERATING CHANNELS
32 CH
ANTENNA INTERFACE
RP SMA
TRANSMITTING POWER
350mW
DIMESION
31x23x11mm
WEIGHT
14g(Exclude Antenna)
21.48g(Include Antenna)
