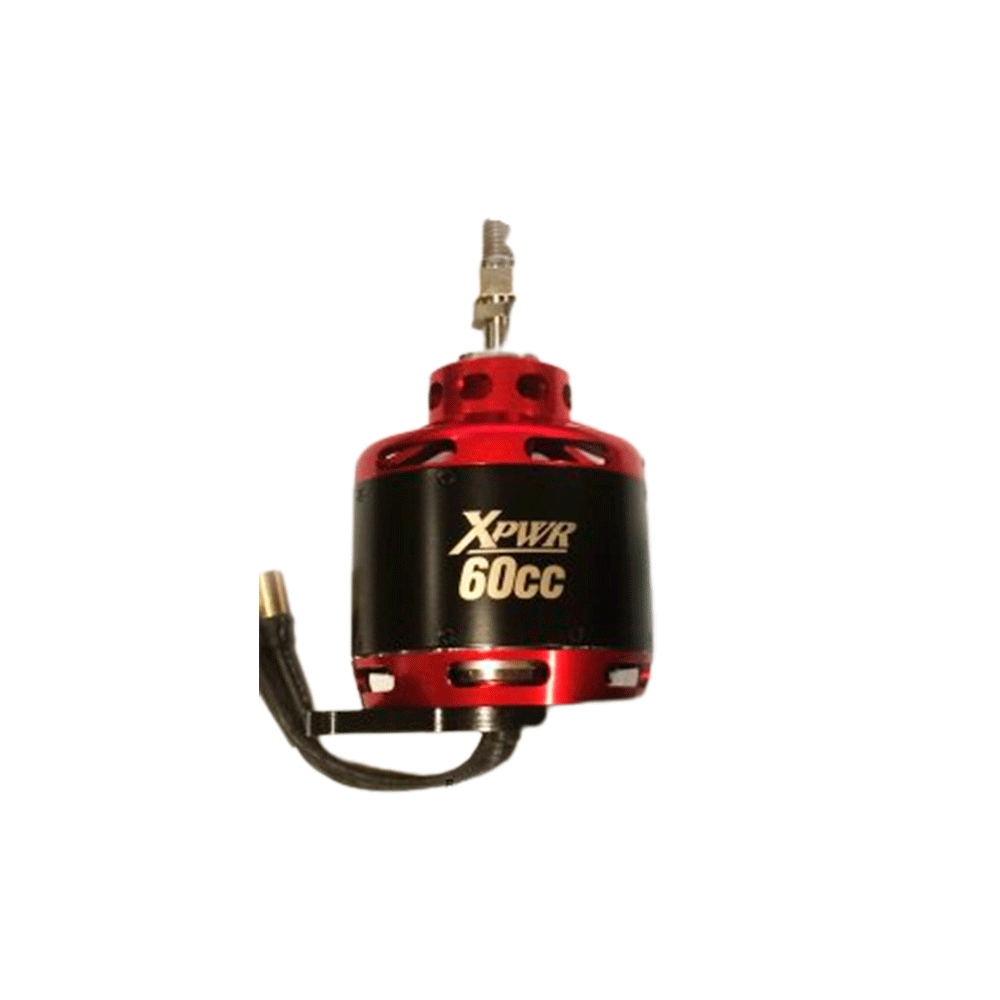

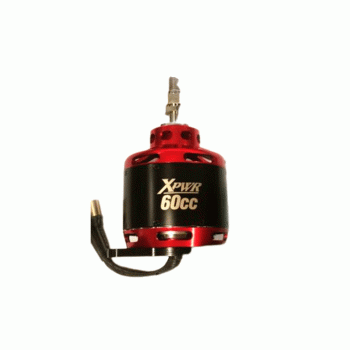

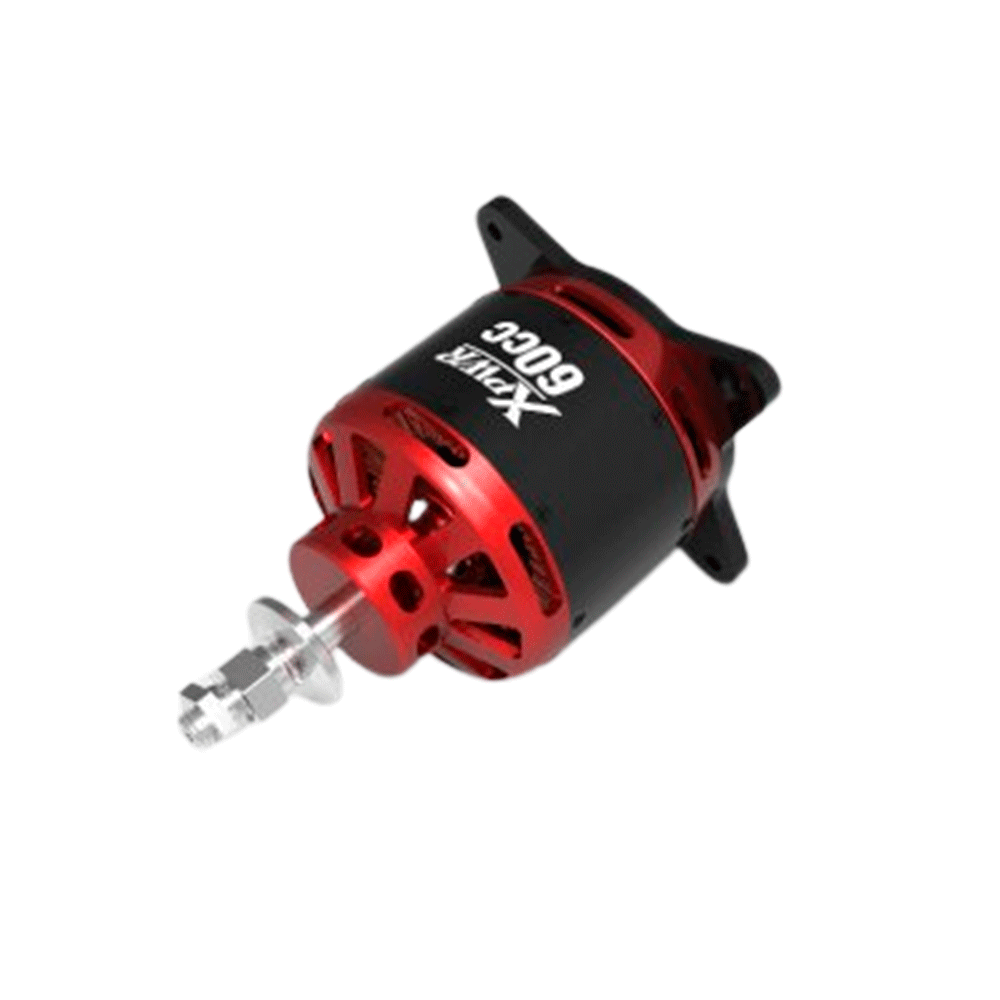

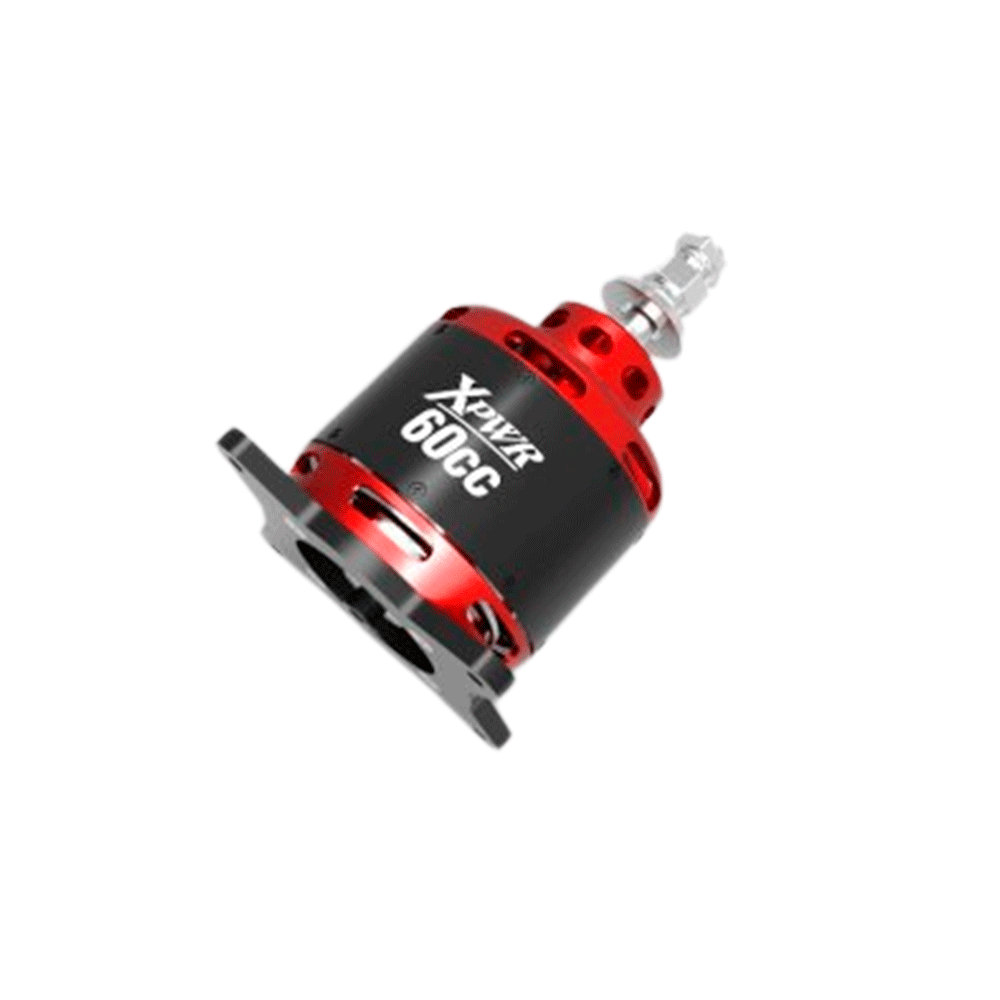

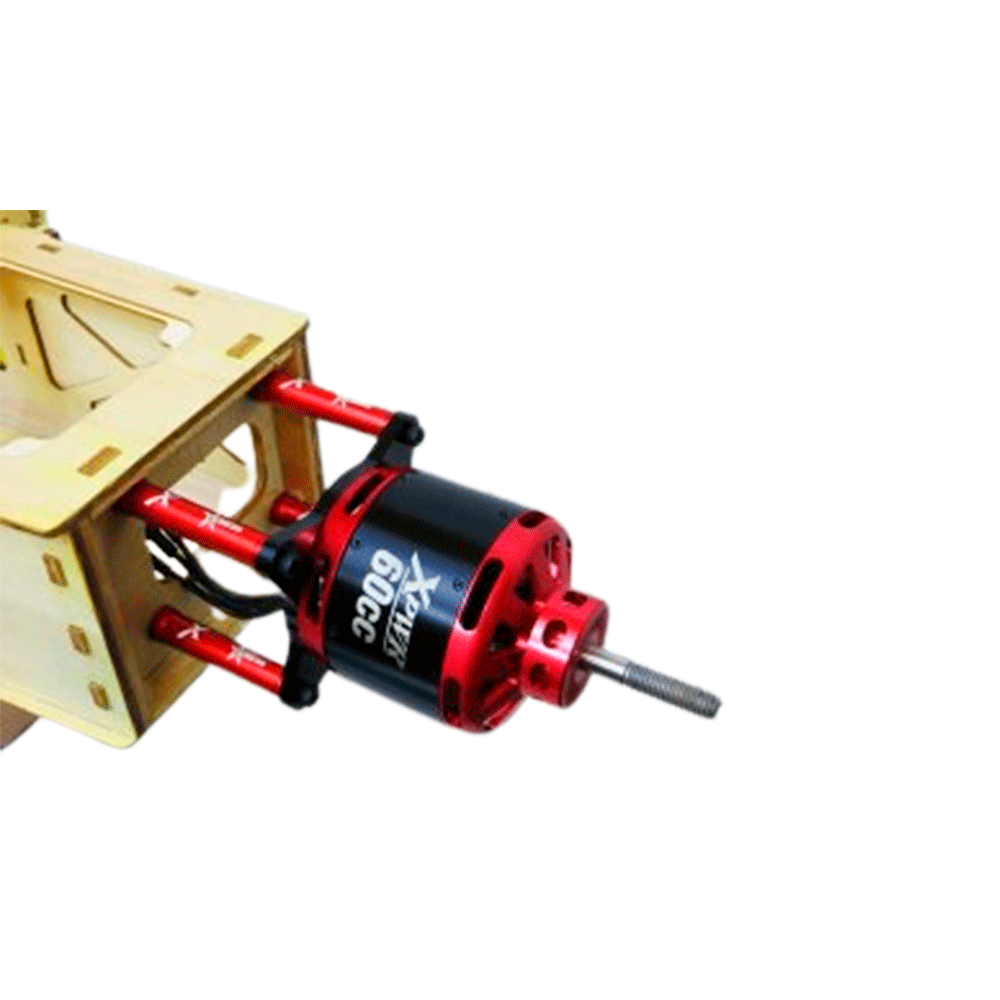

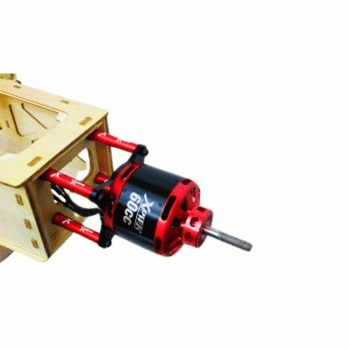

EF BLS MOTOR XPWR 60CC 190KV

Xpwr 60cc- This motor is for our 88"-94" models on 12s lipo and 160HV speed controller. 12S Lipo operation and 160 Amp HV speed controller minimum. 60CC notes: Our testing carried out on Castle firmware V4.22, expect 130 amps on fresh lipo packs using largest prop, for approximately 6,000 watts.

Specifications

• Weight: 1168 grams (including radial mount and prop adapter)
• KV: 190
• Pole: 24 Stator Poles
• Recommended prop: 23 x 10, 24 x 10, 24 x 12
• Note on using largest prop recommendation for each motor: The largest prop recommendation for each motor is a maximum-performance prop for 3D and extreme aerobatic flying. It is not needed or recommended for sport flying where long, sustained full-throttle usage is intended. It is for aerobatic flight where full-throttle is used in bursts.
• Maximum temperature (on outside of motor): 175F / 80C

Xpwr 30-60cc motor/Castle HV ESC settings:

• Firmware version 4.22 (very important!)
• Motor start power: medium 59
• Motor timing: normal 5
• PWM Rate: 12 khz
• Throttle response: medium 5
• Current limit: disable
