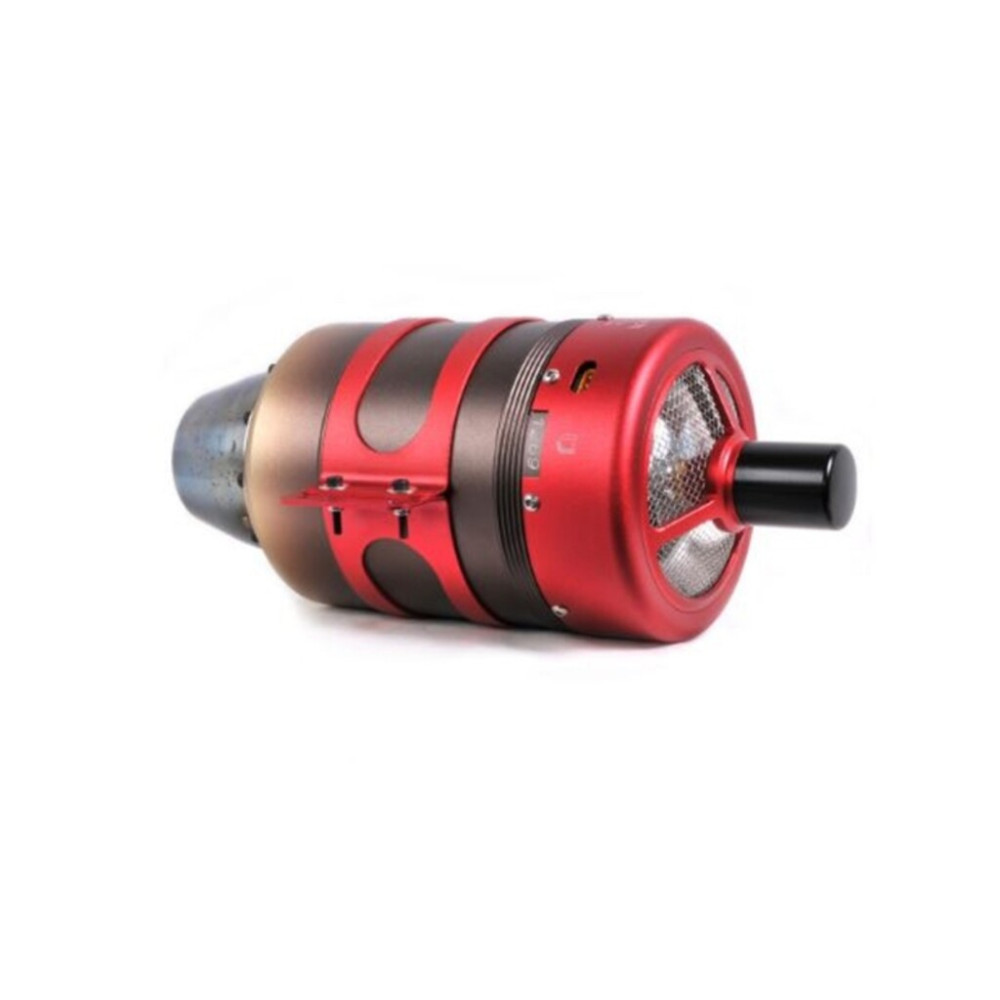

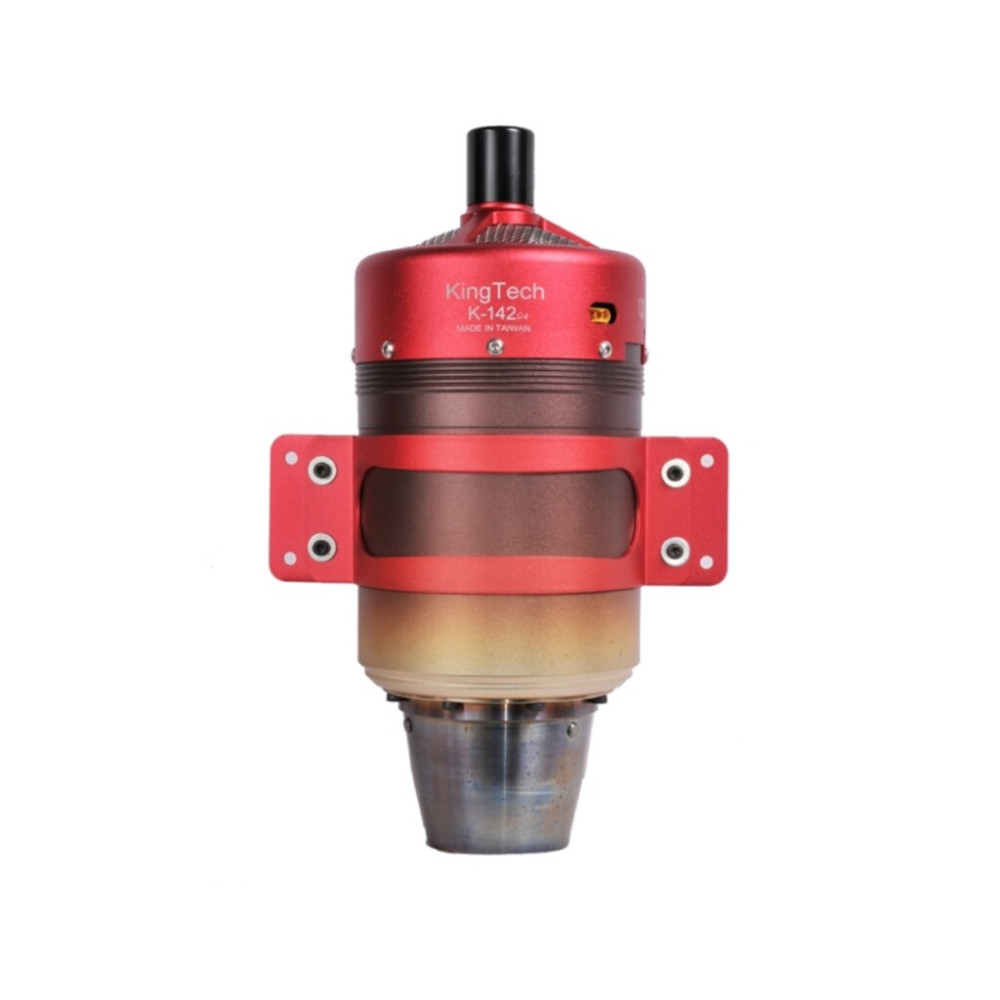

KINGTECH TURBINA K-142G4+ KERO START

KingTech SPECIFICATIONS:

• KingTech G4 utilizes SBus data transmission.
• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.

K-142G4 SPECIFICATIONS

• Diameter: 92.25mm ( 3.63” )
• Length: 235mm ( 9.25” )
• Weight: 1300g ( 2 lb 13 oz )
• Maximum RPM: up to 142000
• Thrust: 14 kg - 15°C ( 30.86 lb @ 59°F )
• EGT: 750°C max
• Fuel consumption: 440g / min ( 15.52 oz / min )
• Fuel: Diesel, Jet A1, Kerosene
• Lubrication: 5%

G4 MODEL COMPONENTS LIST

• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attchments
• Instruction Manual
