KINGTECH TURBINA K-210G4+ KERO START

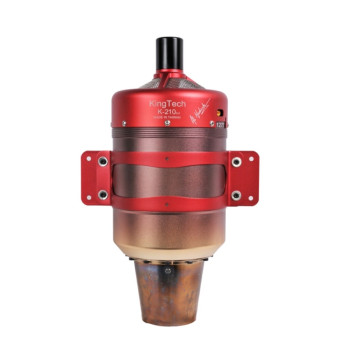

KingTech K-210G4

• KingTech G4 utilizes SBus data transmission.
• Engine/ECU integration, all operating parameters including total run time are all recorded into the engine.
• The smaller and lighter external Data Relay Module (DRM) is responsible for all data, signal and power transmission.
• A micro USB connector is present for a future connectivity of wireless mobile apps.
• The G4 features a brushless starter motor for reliability and durability, built-in FOD screen is also integrated.
• After a run cycle and receiver switched off, GSU will remain on only until cool down completes.



K-210G4 SPECIFICATIONS

• Diameter: 112.6 mm
• Length: 280 mm
• Weight: 1740g
• RPM Range: up to 33,000-120,000RPM
• Thrust: 21 kg @ max RPM ( 46.3 lbs at max RPM)
• EGT: 650°C max
• Fuel consumption: 590 g / min ( 20.8 oz / min )
• Fuel: Diesel, Jet A1, Kerosene
• Lubrication: 5%
• Maintenance cycle: 25 hr US$300

G4 MODEL COMPONENTS LIST

• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attchments
• Instruction Manual
